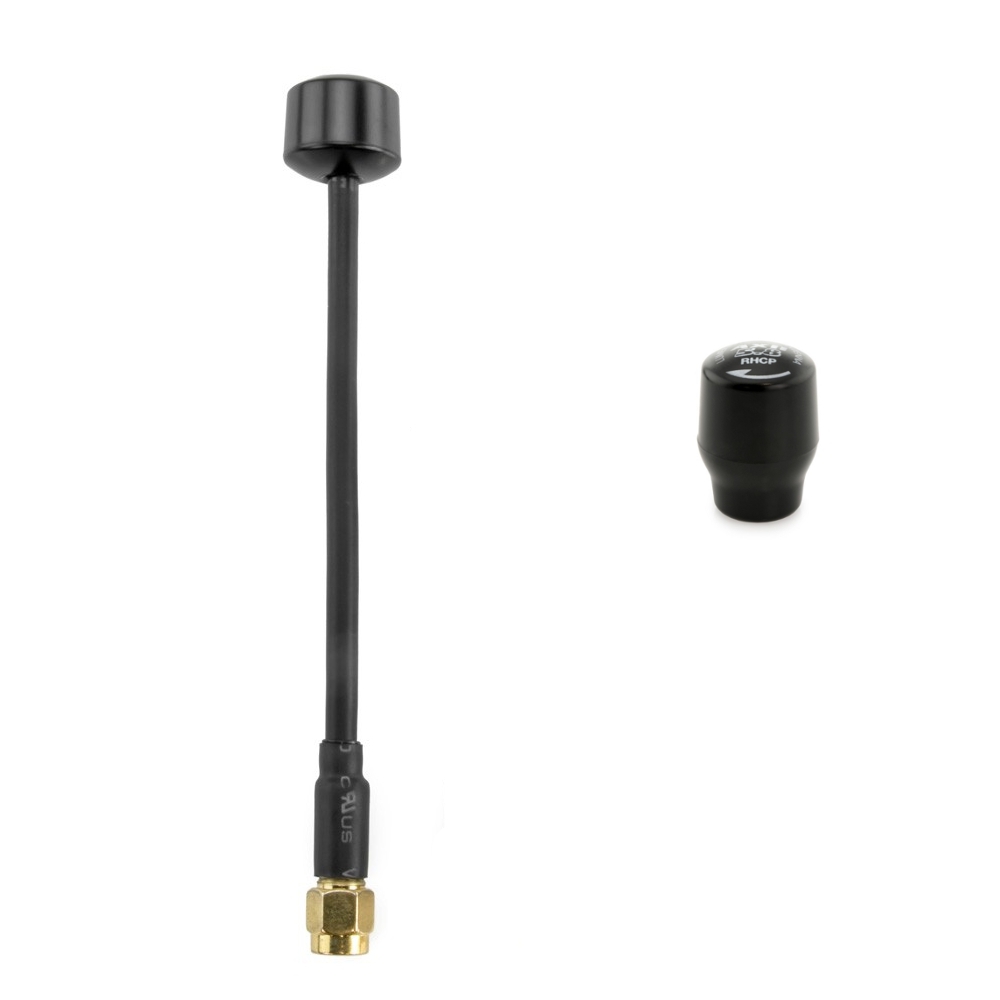

2 PCS Set Lumenier AXII Long Range & Stubby 5.8GHz 1.6dBi FPV Antenna Combo RHCP SMA For FPV RC Drone
The revolutionary Lumenier AXII long range and stubby 5.8GHz Antenna (RHCP) with SMA connector. Mini sized 5.8GHz FPV antenna with a 1.6dBic and near perfect axial ratio. Now with an extended stem, perfect for the long range pilot and near perfect axial ratio.
Polarization
Righr Hand Circular (RHCP)
Specifications
Stubby Antenna
Stubby Antenna
Gain: 1.6dbic
Axial ratio: 1.0 (near perfect)
Bandwidth: 5.5GHz-6.0GHz
Radiation Efficiency: 98%
SWR: <=1.5:1
Weight: 4.7g
Size: 24mm x 16mm
Connector: SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
AXII Long Range Antenna
Specifications
Gain: 1.6dbic
Axial ratio: 1.0 (near perfect)
Bandwidth: 5.5GHz-6.0GHz
Radiation Efficiency: 98%
SWR: <=1.5:1
Weight: 10.5g
Size: 125mm x 16mm
Cable: Semi-rigid RG402
Connector: SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
Package Included
1x RHCP Lumenier AXII Long Range 5.8GHz Antennas
1x RHCP Lumenier Stubby AXII 5.8GHz Antennas
1x RHCP Lumenier Stubby AXII 5.8GHz Antennas
Lumenier AXII Long Range 5.8GHz 1.6dBi FPV Antenna LHCP/RHCP SMA/RP-SMA For FPV RC Drone
The revolutionary Lumenier AXII 5.8GHz Antenna (LHCP) with SMA connector. A mini sized 5.8GHz FPV antenna with a 1.6dBic and near perfect axial ratio. Now with an extended stem, perfect for the long range pilot.
