AOKFLY Mini_VT5804 5.8G 48CH 0/25/100/200mW Switchable FPV Transmitter for RC Drone 7-24V - 14.00 €

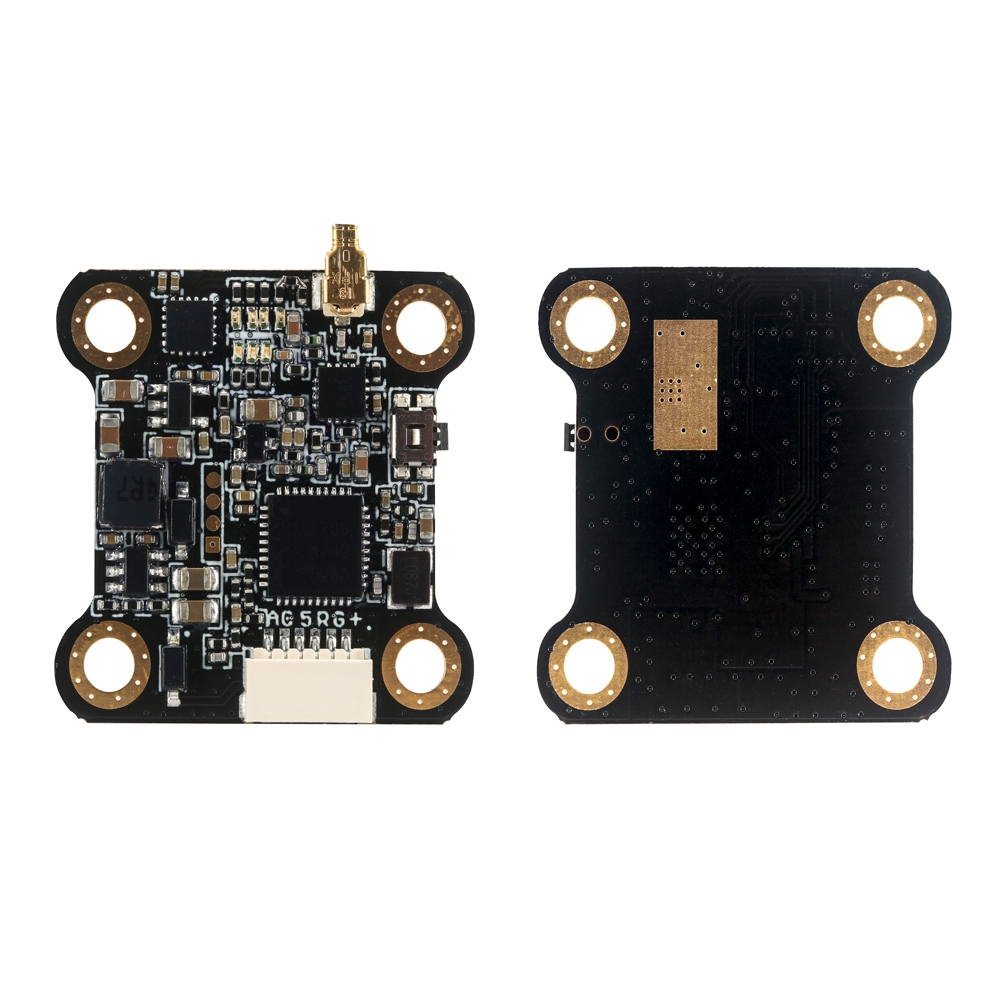

AOKFLY Mini_VT5804 5.8G 48CH 0/25/100/200mW Switchable FPV Transmitter for RC Drone 7-24V
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

AOKFLY Mini_VT5804 5.8G 48CH 0/25/100/200mW Switchable FPV Transmitter for RC Drone 7-24V

Specification:

Brand name: AOKFLY
Item model: Mini_VT5804
Stable output power,long distance transmission: ≥0.5km@25mW, ≥0.8km@100mW, ≥1km@200mW( original antenna)
Transmit power 4 speed switching:0mW/25mW/100mW/200mW
Support OSD interface to adjust image transmission frequency and power;
Output 48 frequency points, and have E group 8 frequency points used simultaneously without interference;
Frequency locked fast, and starting up does not interfere other companions;
Self-test output power self-test function;
Full-format video format: NTSC /PAL
Wide input voltage range, low power consumption:7V~24V, +12V/170mA@200mW;
Size : 27mm×27mm×4.5mm
Holes: 20mm×20mm(4-M2)
Weight(without antenna): ≤3.5g

Frequency and power controll:
Support Betaflight OSD adjust power and frequency. PIT MODE is 0 mW for Close-up bind.

Key control:
Frquency : short press once time to change channel CH(CH1-CH8)
Power: Long press 10s to inter power switchable mode. The LED light as follow.
And short press to change the 25/100/200mW.

Package Included:
1 x Mini_VT5804 FPV Transmitte
