AOKFLY VT5804M V2 5.8G 48CH 0mW 25mW 100mW 200mW 400mW 600mW Switchable VTX For RC Drone FPV Racing Multi Rotor
Brand name: AOKFLY
Item name: VT5804M V2 48CH VTX

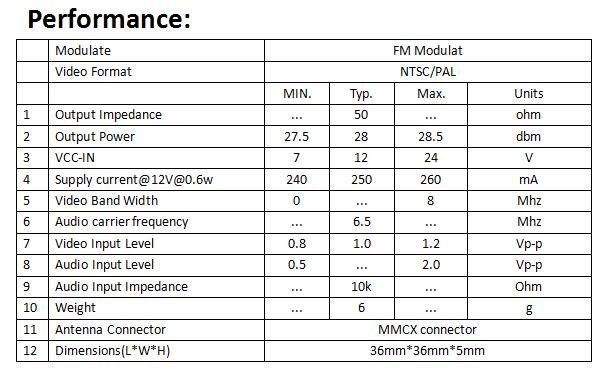

Video format: NTSC/PAL
Output impedance: 50 ohm
Stable output power, long distance transmission: ≥[email protected], ≥[email protected], ≥[email protected] (original antenna)
Transmit power 6 speed switching: 0mW/25mW/100mW/200mW/400mW/600mW
Full-format video format: NTSC /PAL
Wide input voltage range, low power consumption: 7V-24V, +12V/[email protected]
Small size: 36mm×36mm×5mm mounting holes compatiable with CC3D NAZE32 F3 F4 flight controller
Light weight: less than 6g(without antenna)
Support OSD interface to adjust transmitter frequency and power.
Output 48 frequency points, and have E group 8 frequency points used simultaneously without interference.
Frequency locked fast, and starting up does not interfere other companions.
Self-test output power self-test function.
Frequency and power control method:
Supports OSD interface remote controller to adjust transmit frequency and power.
Key frequency control:short press once to change channel CH(CH1-CH8); long press the button for 2 seconds and then short press the button to change the frequency group FR (A-F).
Key power control: Press the button for 10 seconds and then press the button to change the power.
25mW -- Flash 1 stop 3s
100mW -- Flash 2 stop 3s
200mW -- Flash 3 stop 3s
400mW -- Flash 4 stop 3s
600mW -- Flash 5 stop 3s
0mW/error -- Light on
Ensure that the antenna is installed at the output before powering on to avoid damage to internal components.
Pay attention to the input voltage is within the specified range and is correct in order to avoid damage to the internal components;
If you replace the antenna, select a standing wave and a good antenna to obtain a longer transmission distance.
Pay attention to electrostatic protection during transit and installation.
1 x AOKFLY VT5804M V2 48CH VTX
