Specification: ( Manual )
Brand Name: Fullspeed

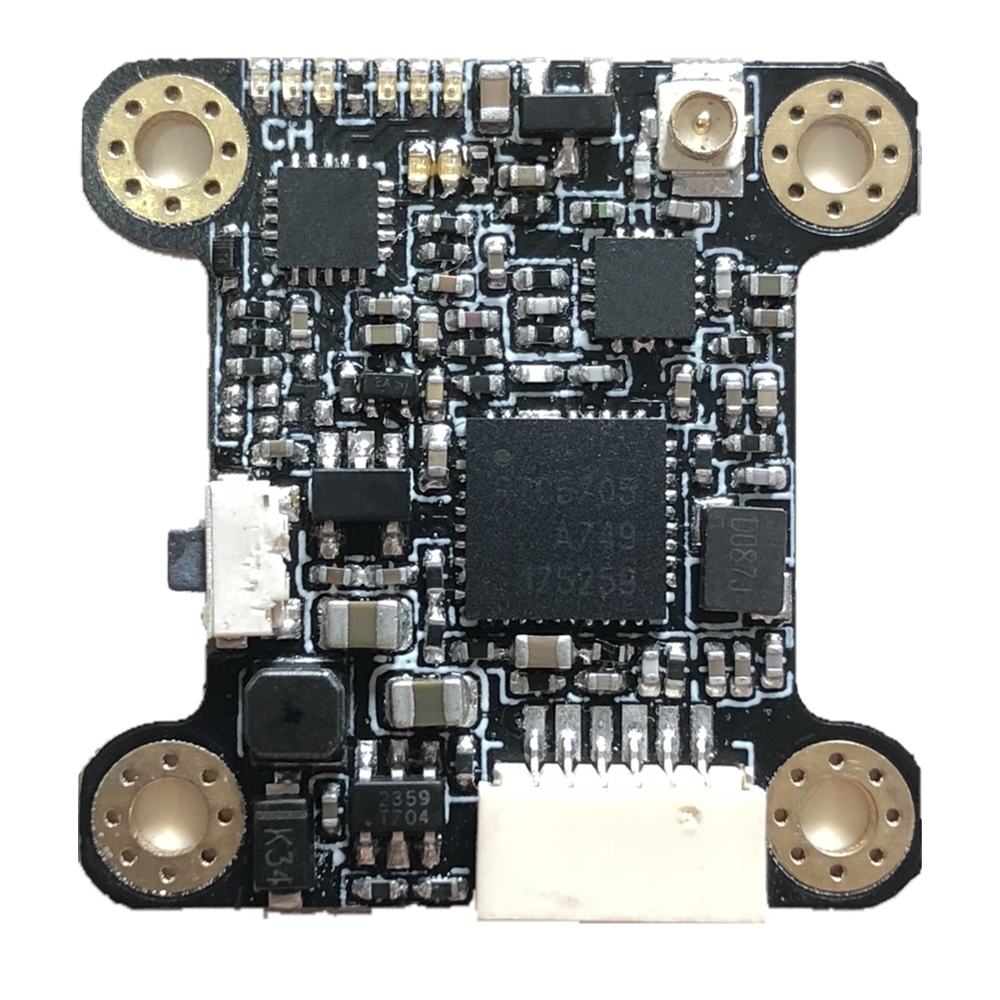

Model: FSD TX600
Item Name: 5.8G 40CH PIT/25/100/200/400/600mW PV Transmitter
Channel: 40CH
Power: 25/100/200/400/600mW ( Switchable)
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
(TX600's factory set up is on lock mode(5733-5866MHZ unlock). Please follow your local laws and regulations
if you need to unlock the frequency.)
Control mode: BFOSD control(RX) / ButtonBAT: 5V
Video System: NTSC/PAL
Antenna: IPEX
Size: 26x26mm
Mounting Hole: 20x20mm
Weight: 2.3g
Features:
- 25/100/200/400/600mW switchable
- Small size and Light weight
- Build-in PIT mode
- Smart Port
- Frequency lock on
- Clean filtering, interfere rejection ability
- Won't interfere with other VTX while it's powering up in different frequency
Frequency Table:
Notice: Red area on aboved frequency table is locked area. Long press for 20S to unlock or reset all set up. Pls re-power after unlocking.
Setting:
Red Light: Channel
Green Light: Band
Bule Light: Power
1. Press and hold button for 5S entering into CH. Red light will flash 3 times and show the Chnnel.
Short press button for 1S to change CH.
2. Press and hold button for 5S entering into Band.Green light will flash 3 times and show the Band.
Short press button for 1S to change Band
3. Press and hold button for 5S entering into Power. Blue light will flash 3 times and show the Power.
Short press button for 1S to change Power.
(only to unlock the transmitter so the power select mode can accessible)
4. Press and hold button for 5S to save setting. All LED will falsh 3 times to show CH, band and power.
Package Included:
1x 40CH 25/100/200/400/600mW VTX Module
1x IPEX Antenna
Size: 26x26mm
Mounting Hole: 20x20mm
Weight: 2.3g
Features:
- 25/100/200/400/600mW switchable
- Small size and Light weight
- Build-in PIT mode
- Smart Port
- Frequency lock on
- Clean filtering, interfere rejection ability
- Won't interfere with other VTX while it's powering up in different frequency
Frequency Table:
| Channel | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| FS | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Race Band | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| Low Race | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
Notice: Red area on aboved frequency table is locked area. Long press for 20S to unlock or reset all set up. Pls re-power after unlocking.
Setting:
Red Light: Channel
Green Light: Band
Bule Light: Power
1. Press and hold button for 5S entering into CH. Red light will flash 3 times and show the Chnnel.
Short press button for 1S to change CH.
2. Press and hold button for 5S entering into Band.Green light will flash 3 times and show the Band.
Short press button for 1S to change Band
3. Press and hold button for 5S entering into Power. Blue light will flash 3 times and show the Power.
Short press button for 1S to change Power.
(only to unlock the transmitter so the power select mode can accessible)
4. Press and hold button for 5S to save setting. All LED will falsh 3 times to show CH, band and power.
Package Included:
1x 40CH 25/100/200/400/600mW VTX Module
1x IPEX Antenna
