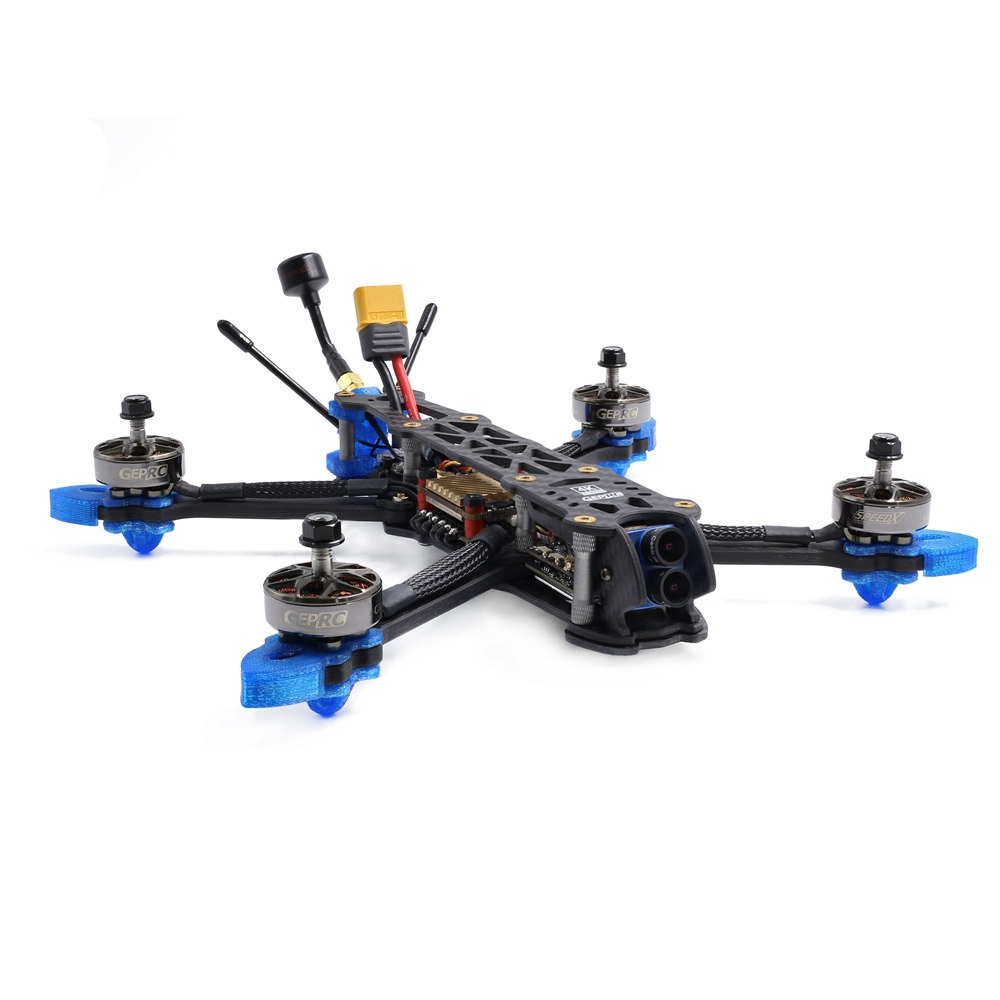

Geprc Mark4 4K 224mm Span F7 4S 5 Inch FPV Racing Drone PNP BNF w/ Caddx Tarsier 4K V2 Camera - 299.00 €


Geprc Mark4 4K 224mm Span F7 4S 5 Inch FPV Racing Drone PNP BNF w/ Caddx Tarsier 4K V2 Camera
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Geprc Mark4 4K 224mm Span F7 4S 5 Inch FPV Racing Drone PNP BNF w/ Caddx Tarsier 4K V2 Camera

Overview:
MARK4 4K is a FPV Quadcopter with high configuration.
It is equipped with 4K Tarsier V2 Camera of Caddx, and the highest 4K 30fps recording.
The flight controller use SPAN-F722-VTX, dual gyroscope ICM20689(SPI) working on the same time.
Power with the use of the new design 2306.5 motor, and the new G5*4.3*3 Freestyle propeller,
the overall power control sense is stronger, more powerful.
The Mark4 4K frame has been improved, No Propeller in view,no jelly. resulting in a clean picture.
The product includes Mark4 4K 3D printed parts and spare parts.
Specification:
Brand Name: Geprc
Model: Mark4 4K
Item Name: 224mm Span F7 4S 5 Inch FPV Racing Drone
Weight:381g ( without battery )

Mark4 4K Frame Kit
( Improved Version)
Material: Full 3K Carbon Fiber
Wheelbase: 224mm
Size:138*176mm
Mounting Holes: 30.5*30.5mm/20*20mm
Arms Plate Thickness: 5mm
Side Plate Thickness: 2.5mm
Top Plate Thickness: 2.5mm
Bottom Plate Thickness: 2.5mm
Protect Plate Thickness: 2mm
SPAN F7 Dual Gyro Flight Controller AIO VTX
( F722-VTX Stack )
MCU: STM32F722RET6
IMU: 2x ICM20689(SPI)
BlackBox: 32Mb onboard Flash
OSD: BetaFlight OSD w/ AT7456E chip
Baro: BMP280
BEC Output: [email protected]
Integrated LC Filter
Firmware target: EXF722DUAL
Size:36x36mm board, φ4mm with Grommets φ3mm
Onboard 5.8G 48CH 600mW VTX
Channel: 48CH
Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 600mW
Connector type: MMCX Connector
Traditional button
IRC Tramp protocol
50A BLheli_32 4in1 ESC
( F722-VTX Stack )
MCU: STM32FO51K86(32bit 48mHz)
Continuous Current: 50A
Peak Current: 55A (5S)
Current sensor: YES
Telemetry: Supported
Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot
Firmware Version: GEPRC-BL32-4IN1
Input Voltage: 3-6S Lipo
Geprc G5x4.3x3 5043 3-Blade Propeller Brand Name: Geprc
Item Name: 5043 3-Blade Propeller
Color: Transparent Blue
Quantity: 2 CW & 2 CCW
Geprc GR2306.5 2450KV 4S Motor
Configuration: 12N14P
Stator Diamter: 23mm
Stator Length: 6.5mm
Shaft Diameter: 4mm
Motor (Dimension: Φ28.2*29.2mm (Dia.*Len))
Wire AWG: 20AWG
Weight(g):31g (not include wire)
Caddx TARSIER 4K V2 FPV Camera
FOV: 4K F2.8, FOV150°16/9), FPV FOV165°(4/3)
Lens: DUAL Lens F2.8/12Mega
Audio: DUAL DIGATIL MIC
CPU: Dual core dual system
Sensor: 12M sensor,1/1.8INCH 1/2.9INCH
Main Resolution:
4K/30fps 16:9
2.7K/60fps 4:3
1440P 60fps/30fps 4:3
1080p/90fps,60fps,30fps 16:9
720P120fps 16:9
CAMERA Bitrate : 50kbps/66kbps
Video System: NTSC/PAL
ISO:OFF/100/200/400/800/1600
ANTI-SHAKE:Hardware anti-shake
Scene Mode: Auto/Personage/Scenery/Defog
Dimension CAMERA: 19x20mm / DVR:29x29mm(HOLE:20x20mm)
Weight : 18g
Optional Receiver PNP Version: Without Receiver
Frsky XM+ Receiver/ Frsky R-XSR Receiver/ Flysky A8S V2 RX / TBS Nano SE RX
Lipo Battery ( NOT Included) Recommend 6S 1050mAh-1300mAh Lipo Battery

Package Included:
1x Geprc Mark4 4K 224mm 4S FPV Racing Drone
