Specification:
Item Name: HBFPV
Model: HB64 V5

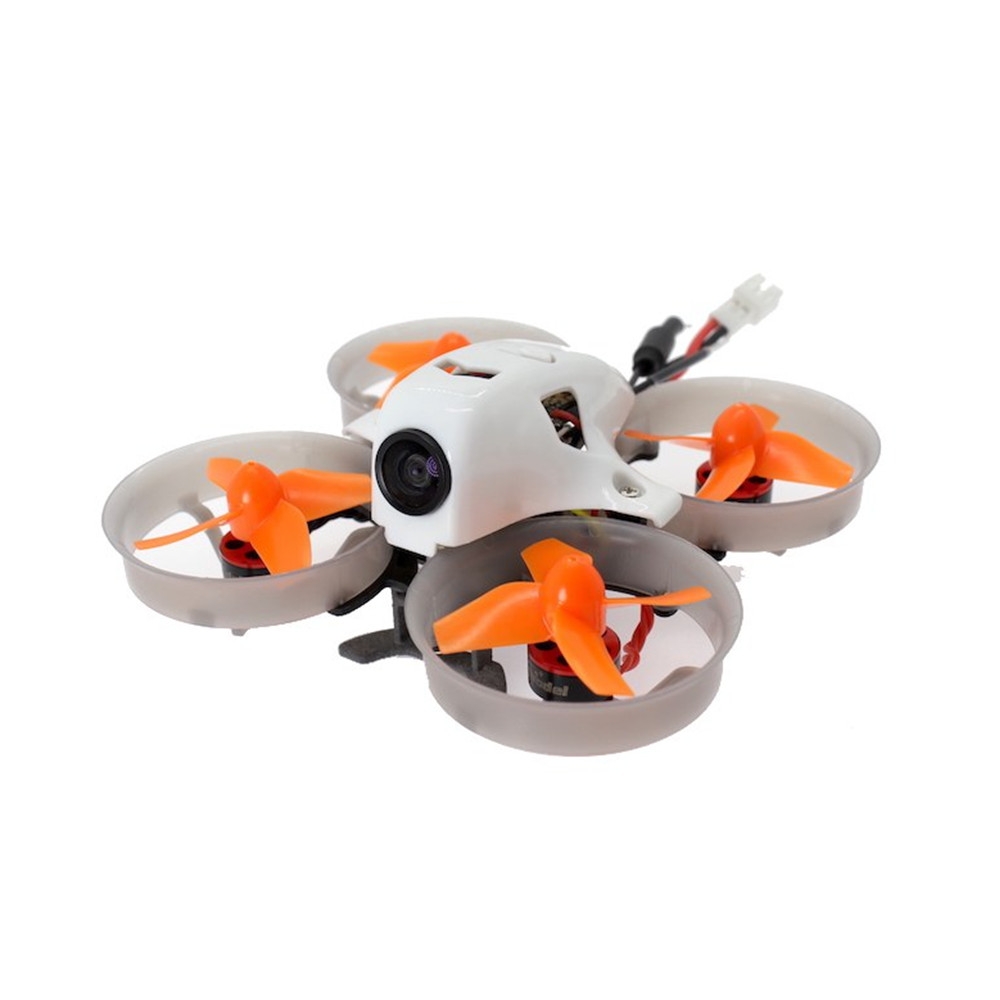

Item Name: 64mm F3 OSD Micro FPV Racing Drone
Wheelbase: 64mm
The Thinkess of Carbon Fiber Frame: 1mm
Max Prop: 31mm (1.2inch)
Material of Ducts: Enhanced PP Plastic
Material of Canopy: Enhanced PP Plastic
Version: PNP (without receiver )with Compatible Flysky FS-RX2A Receiver
with Compatible Frsky Pro D8 Receiver
with Compatible DSMX/ DSM2 Pro Receiver
| Teeny F3 OSD Flight Controller |
Size: 20x20x5mm
Mounting hole: 16x16mm
MCU: STM32 F3
Gyroscope: MPU6000
BEC: 5V@1A
Input Voltage: 1S Lipo or 1S HV Lipo
Built-in Betaflight OSD
|
| Teeny Pro 5A BL_S 4In1 ESC |
Size: 20x22x5mm
Mounting hole: 16x16mm
Firmware: BLHELI_S
Input Voltage: 1S Lipo or 1S HV Lipo
Continuous Current: 5A
Burst Current: 6A ( 3 Second)
|
| 0802 25000KV Motor |
Brand Name: HBFPV Item Name: 0802 25000KV 1S Brushless Motor KV: 25000KV Shaft Diameter: 1.0mm |
| 31mm 4-Blade Propeller |
Item Name: 31mm 4-Blade Propeller Color: White Quantity: 2 CW & 2 CCW |
| TW2751 5.8G 48CH 25mW VTX |
Output power: 25mW
Control mode: BF OSD control (Support Smart Audio)
Video system: NTSC/PAL
Battery: 5V
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHz
Size: 14*14.5mm(L*W)
Weight: 2g
|
| TW25 700TVL M7 Camera |
Model: TW25 Item Name: 700TVL M7 Camera |
| Optional Receiver |
PNP Version: Without Receiver - with Compatible Flysky FS-RX2A Receiver - with Compatible Frsky Pro D8 Receiver - with Compatible DSMX/ DSM2 Pro Receiver |
| Lipo Battery ( Not Included) | Recommend 1S 250/300mAh 30C Lipo Battery |
Package Included:
1x HBFPV HB64 V5 FPV Racing Drone
