HGLRC-Flipsky R-6374 190KV 3250W Brushless Sensored Motor Shaft 8mm for Electric Skateboard Rc Car - 119.00 €

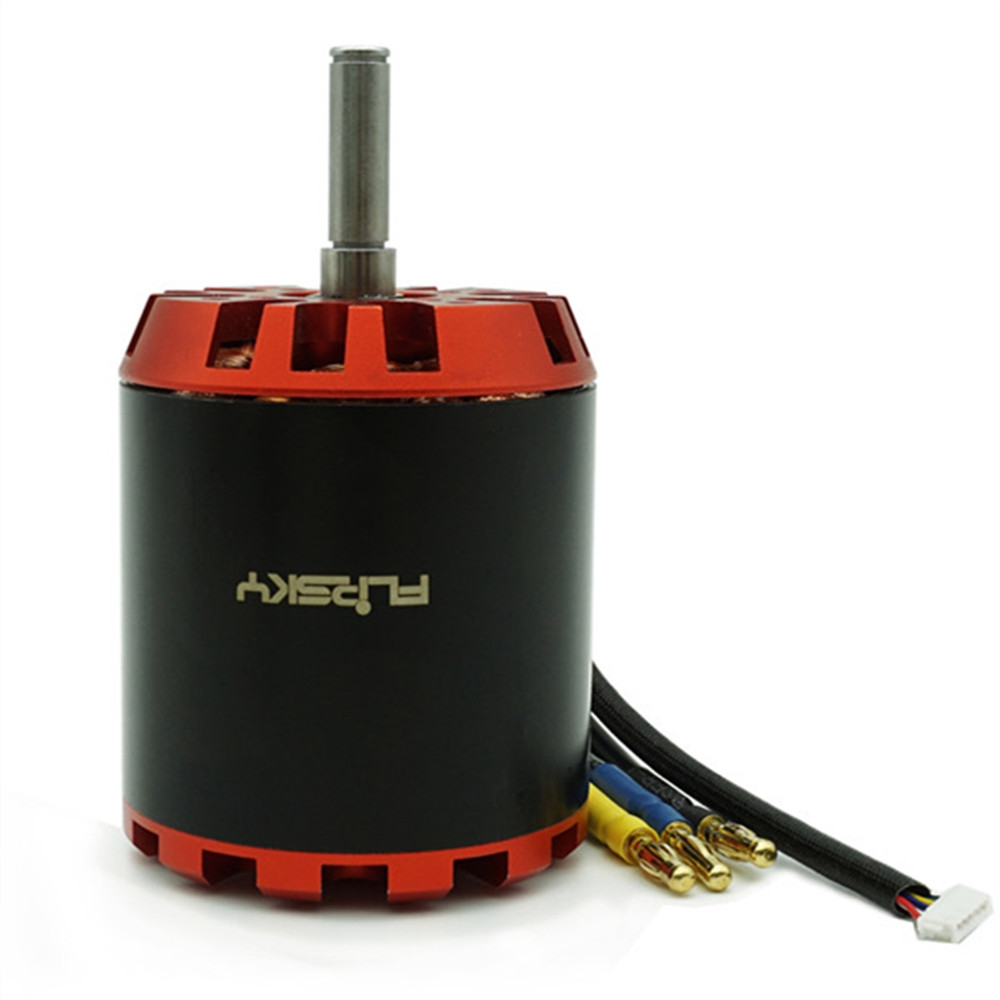

HGLRC-Flipsky R-6374 190KV 3250W Brushless Sensored Motor Shaft 8mm for Electric Skateboard Rc Car
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Description:
Brand:HGLRC-Flipsky
No:R-6374
Weight: 1.9 lb / 0.86 kg
Packaging weight:1000g
Packaging size:115mm*175mm*90mm
Recommendation esc:3-12S 50A(HGLRC-Flipsky FSESC 4.12 50A SK8 ESC,click here;or HGLRC-FlipSky FSESC6.6,go to the link
Mainly fit for 1/10 and 1/8 rc car,electric skateboard

Motor Spec:
Max Power: 3250 Watts
Max Current: 85 Amps
Max Volts: 12S
Max Torque: 8Nm
Motor Resistance: 0.05Ohm
Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)
Battery type: 4-12S
Diameter(mm): 63.4
Length(mm): 77
Total length (mm):102
SHAFT: Diameter 8mm, 30mm length, 3x1.5 keyway slot.
Motor Wire: 130mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Male.
Wire configuration:
Blue = A
Black = B
Yellow = C
Stator: 0.2mm thickness lamination japan steel
Magnet: N42SH high temp curve magnet

Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch
Internal PCB with 120 Degree Hall Effect Sensors.
Motor can be used with or without a sensor. Sensorless operation is most common.
VESC Sensor Wires required to use with VESC.
Wire configuration:
Red = 5v
White = Temp
Blue = A
Yellow = C
Green = B
Black = GND

Screws(the packaging are not included):
The screws used for the motor are M4x8mm metric bolts. Using our motor mounts, we recommend using M4x8mm Socket Cap bolts.

Package included:
1X R-6374 190KV 3250W Motor
