PRODUCT DESCRIPTION

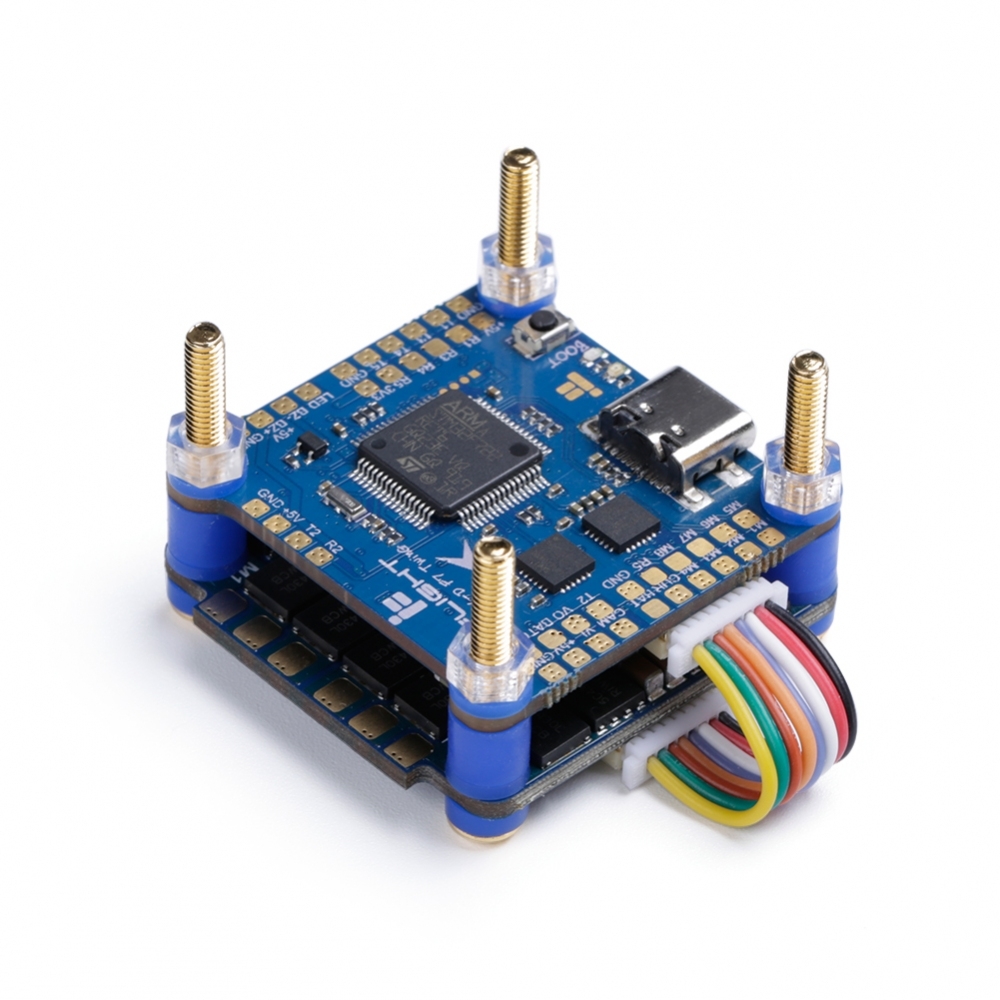

The SucceX-D F7 is designed to work seamlessly with DJI’s new HD FPV system. To make things as simple as possible, we have included a connector specifically for the DJI air unit, so installation should be a breeze. In addition, we add the popular and reliable USB Type-C instead of Mi.cro USB which makes the connection easily.
Features:
• Un.iversal USB Type C connector instead of mi.cro USB
• Plug-and-Play. No need to solder tiny wires.)
• Supports BLHeli pass-through for easy ESC upgrade and configuration.
• Designed to support DJI Digital FPV.
SucceX-D F7 TwinG SPECS:
- MCU: 216MHz STM32F722RET6
- Gy.ro: 2x ICM20689
- Baro: YES
- Betaflight OSD: YES
- Blackbox: 32MB
- 5 x Uarts
- 8 x Motor outputs
- 8 pin 4in1 ESC port
- 4-pin VTX connector
- Betaflight Firmware:betaflight_4.0.5_STM32F7X2.hex
- CLI config:IFLIGHTF7_TWIN_G.config
Physical:
- Mounting hole: 30.5*30.5mm: φ4mm with Grommets φ3mm
- Size: 36*36mm
- Weight: 7.5g
SucceX 50A BLHeli_32 4-in-1 ESC
Features:
- 8 layers double-sided PCB board;
- 4oz 1.6mm thick power board(0.9mm copper ratio),better operating load capacity;
- 32bit FO51K86 MCU, 48mHz maximum clock speed;
- T.DK MLCC Low ESR ceramic capacitors;
- Top grade NTMFS5C430NL MOSFET;
- Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection
Specification:
- Dimension: 43*39mm
- Mounting Holes: 30.5*30.5mm/Φ3mm
- Weight:14.4g
- Volts input: 2-6S
- STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware
- Current sensor: Yes
- Telemetry: Supported
- BEC: No
- Supports: DShot DShot150/300/600/1200/MultiShot/ OneShot etc.
- Target: iFlight-BL32-4IN1
- BLHeliSuite download (BL32) :http://www.mediafire.com/file/hkln8fcaif5s9l8/BLHeliSuite32_32616a.zip/file
Package included:
1 x SucceX-D F7 TwinG FC
1 x SucceX 50A BLHeli_32 4-in-1 ESC
