JumperTX T8SG 2.4G 12CH Hall Gimbal Open Source Multi-protocol Transmitter for RC Drone - 79.00 €


JumperTX T8SG 2.4G 12CH Hall Gimbal Open Source Multi-protocol Transmitter for RC Drone
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

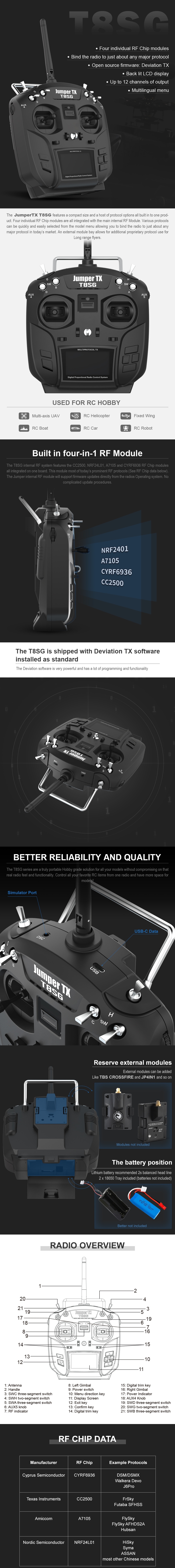

JumperTX T8SG 2.4G 12CH Hall Gimbal Open Source Multi-protocol Transmitter for RC Drone

Description:
Brand Name: JumperTX
Item Name: T8SG Transmitter
Size: 158 x 150 x 58 mm
Weight: 338g(without battery)
Color: Black
Transmission frequency: 2.400GHZ-2.7GHZ
Transmitter Module: Four in One High Frequency Module(CC2500 CYRF6936 A7105 NRF2401)
Transmit power: maximum 22dbm (transmit power adjustable)
Antenna gain: 2db(detachable antenna, easy modification)
Working current: 88Ma@8. 4V
Working voltage: DC4.5-DC18V
Remote control distance: >2km@ 22dbm
Open source firmware
Number of channels: up to 12 channels(depending on the receiver)
Display: back lit LCD display, 128*64 resolution
Rocker way: non-contact 3D space vector Hall joystick
JR/FrSKY compatible module bay on rear side
Upgrade method: USB online upgrade

Support Protocols:
Walkera full range
DSM2/X full range
Flysky and Flysky 2A
FrSky
FUTABAs S-fhss full range
WL Toy series, Hubsan series, Esky series and many more( Currently a total of more than 40 supported protocols)
Uses open source software with continued support and development, adding new protocols regularly.

Features:
Built in four-in-1 RF Module(CC2500 CYRF6936 A7105 NRF2401)
Open source multi-protocol firmware, compatible with most mainstream remote con-trols
T8SG back lit LCD display, Bright display works even in direct sunlight
Non-contact 3D space vector Hall remote sensing Gimbals
JR/FrSKY compatible module bay on rear side
USB online firmware upgrade
Transmission power adjustable to adapt to different location requirements
Detachable antenna, easy to change
Ultra-low power consumption, longer battery life
Up to 12 channels of output (depending on the receiver), Open Source Firmware, all channels are fully programmable
Wide voltage input(2s lipo recommended)
Multilingual menu
Vibration reminder function
Support telemetry(depending on the receiver)
Built in Voice support

Package included:
1 x T8SG Transmitter
