Omnibus F4 Corner Nano Flight Controller w/ MPU6000 Damping Box IMU OSD Current Sensor for RC Drone - 29.99 €


Omnibus F4 Corner Nano Flight Controller w/ MPU6000 Damping Box IMU OSD Current Sensor for RC Drone
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Omnibus F4 Corner Nano Flight Controller MPU6000 Damping Box IMU Build In OSD Current Sensor for RC Drone FPV Racing

Description:
Item name: Omnibus F4 Corner Nano flight controller

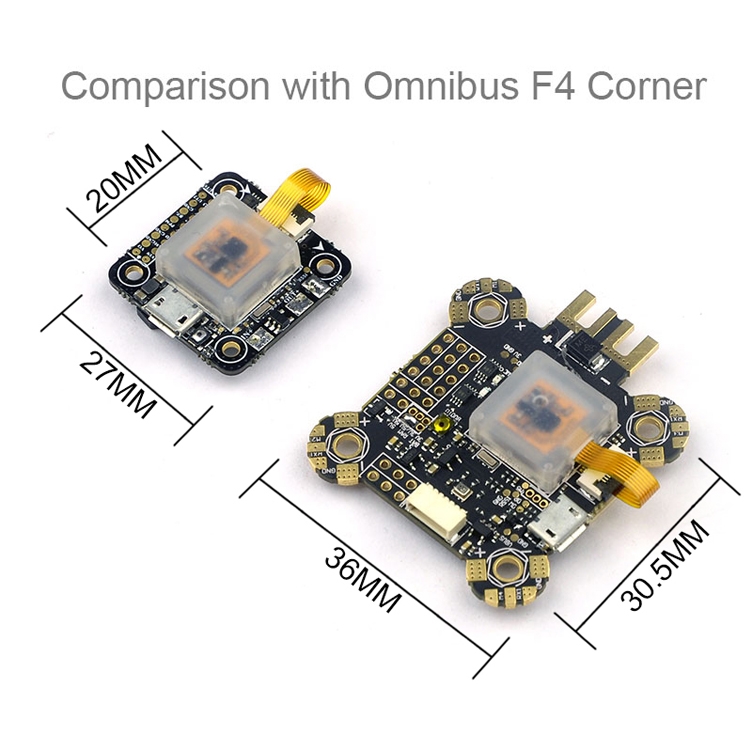

Size: 27*27mm
Mounting hole distance: 20*20mm
Mount hole diameter: 2.3mm
Weight: 5.7g
Processor: STM32F405RGT6
Sensor: MPU-6000 (connected by SPI)
Firmware version: betaflight_3.2.0_OMNIBUSF4SD
Built-in ESC: 5V 1A output(BUCK)
Built-in LC filter for VTX power (max 800ma)
Built-in current sensor
Built-in Barometer BMP280
Power supply: 2S-4S Lipo battery
Receiver: PPM, IBUS, SBUS, DSM2, DSMX etc.
Suitable for Micro FPV brushless frame
Features:
IMU installation with damping box.
Support programmable LED Sprit.
Support BLheli/BLHELI_S suite Pass-through ready
ESC Protocol PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 compatible.
Built-in voltage sensor and current sensor.
Built-in Betaflight-OSD, Configure by Betaflight GUI.
Buzzer Ready (Solder pin)
Package included:
1 x F4 flight controller board
4 x M2*5+5 nylon column
4 x M2 Nuts
4 x M2 Screw
1 x 4 in 1 ESC cable
