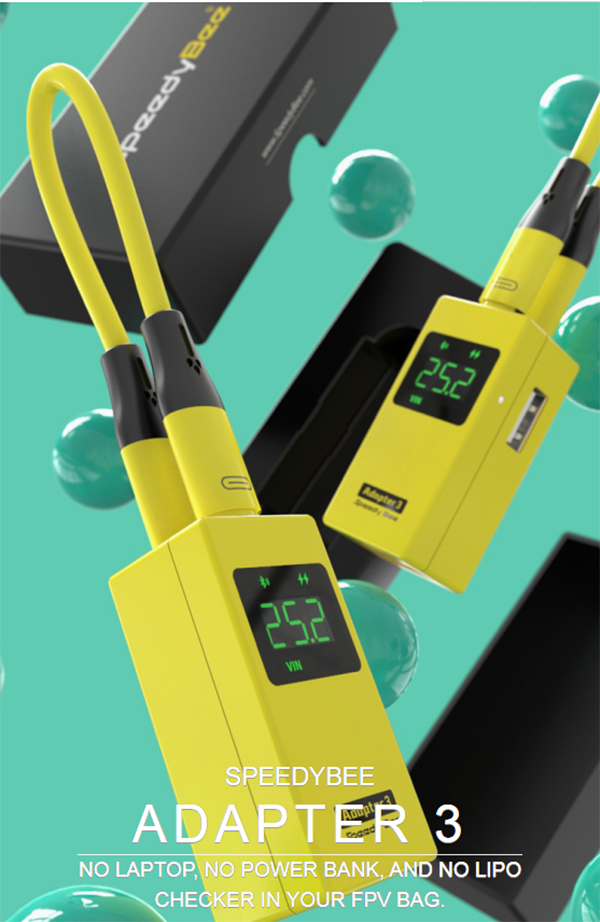

SpeedyBee Adapter 3 Mini Blackbox Analyzer FC ESC Flasher 1S-6S LiPo Checker 30W USB Charger All in One for IOS Android Smartphone RC Drone - 45.00 €


SpeedyBee Adapter 3 Mini Blackbox Analyzer FC ESC Flasher 1S-6S LiPo Checker 30W USB Charger All in One for IOS Android Smartphone RC Drone
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video



SpeedyBee Adapter 3 VS SpeedyBee Adapter 2 VS OTG

ItemSpeedyBee Adapter 3SpeedyBee Adapter 2OTG
Support 1-6S LiPo input✔✔N/A
XT60 and PH2.0 connectors✔✔N/A
BF/INAV/EMU configuration✔✔✔
Flight control firmware upgrade✔✔✘
Built-in WiFi✔✔✘
Built-in Bluetooth✔✘✘
Blackbox downloader and analyzer✔✘✘
8-bit BLHeli_S ESC firmware updater✔✘✘
Built-in MicroUSB and Type C connector✔✘✘
Fast charging output up to 30W✔✘✘
Built-In LiPo Voltage Checker✔✘✘


Specification:

Product NameSpeedyBee Adapter 3
Power Input Voltage Range1-6S(3.8V+ for 1S)
Power Input ConnectorXT60-Male, PH2.0 male
Required Mobile Device System VersionAndroid 7.0+ | iOS 12.0+
Supported SpeedyBee App VersionV1.6.1 + for iOS | V1.5.6+ for Android
Maximum Output Current for flight controllers700mA @5V
Fast Charging Output interfaceUSB A Port
Minimum Input Voltage for Charging output7.4V(2S LiPo)
Supported Fast Charging Protocol• QC3.0/QC2.0
• AFC
• FCP
• SCP/High SCP
• PE2.0/PE1.1
• SFCP
Max Fast Charging Current3.5A
Max Fast Charging Power30W
Case MaterialABS + PC
Liquid Silicone Cable Length12.4cm
Dimension(Main Body)24.8*21.8*53.6mm
Net Weight35g


Download:

User Manual


Package Included: (only one piece)

1 x Adapter 3
1 x Manual Card
