Summer Prime Sale Happymodel Sailfly-X 105mm Crazybee F4 PRO 2-3S FPV Racing Drone BNF
Specificaiton:Brand Name: Happymodel
Model: Sailfly-X
Item Name: 105mm Crazybee F4 PRO 2-3S Micro FPV Racing Drone
Version: Compatible Frsky Receiver
- Frsky version support both NON-EU and EU-LBT Frsky transmitter
Wheelbase: 105mm
Size: 95mm*95mm*50mm(without propellers)

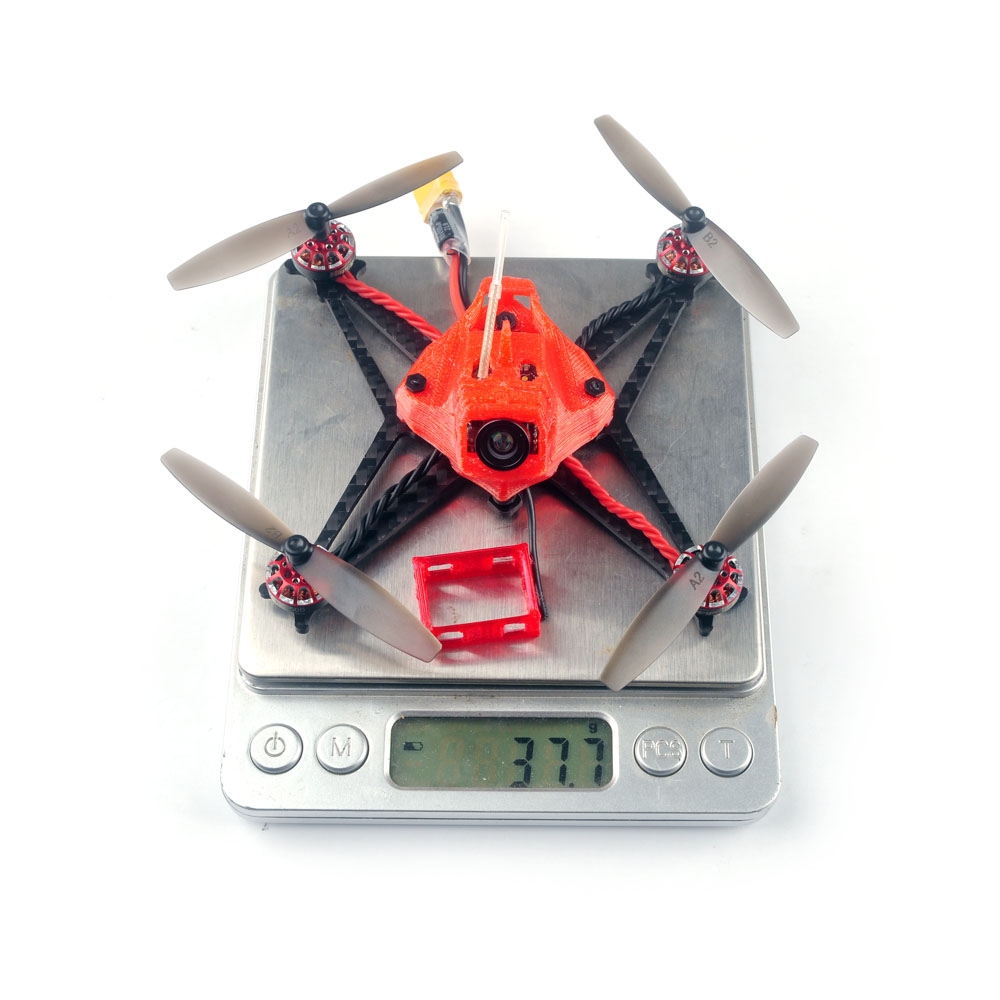

Weight: 35g(without battery)
Weight:60g(with Original 3s 300mah Lipo battery )
Package Included:
1x Sailfly-X FPV Racing Drone
1x 3D Printed 30 Degree Angle Canopy ( Red)
1x 3D Printed 40 Degree Angle Canopy ( Purple)
1x 3S 11.4v 300mah 30C/60C battery
1x Propeller disassemble tool
1x Screwdriver
| Crazybee F4 PRO Flight Controller |
(Frsky version) CRAZYBEE F4FR PRO V2.1 Firmware target: CrazybeeF4FR MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 2-3S battery input (DC 7.4-13V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable) telemetry(AFHDS/AFHDS2A switchable) Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 28A Current meter scale set to 1175 Built-in 5V 1A BEC with LC filter Built-in voltage detection |
| EX1102 8500KV Motor |
Mode: EX1102 8500KV
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*16mm
Weight(g):2.8g
No.of Cells(Lipo):2S-3S
|
| Onboard 5A 4in1 ESC |
MCU upgraded to EFM8BB21
Power supply: 2-3S LiPo/LiPo HV (7.4v/13v)
Current: 5A continuous peak 6A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.Hex
Default protocol: DSHOT600
|
| Onboard Frsky Receiver Version |
SPI BUS receiver
Frsky D8/D16 switchable
Compatible both Non EU and EU-LBT transmitter Channels: 8ch or 16ch
EU-LBT support(need to update betaflght v4.0 date 2019-04-11)
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
|
| 40CH 25mW VTX AIO 700TVL Camera |
Output power: 25mw Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Camera resolution: 700TVL Field of view: 120° Video Format: NTSC Antenna: RG178 antenna Frequency: 5.8GHz 5bands 40 channels With Raceband Smartaudio ready(Frsky EU-LBT and DSMX version not compatible) Size: 13.9"12.0mm ( L*W ) Weight: 3.2g |
| Lipo Battery ( All Version have) |
Capacity:300mAh Voltage:11.4v Continuous Discharge Rate: 30C Instantaneous discharge rate: 60C Size: 65mmx18mmx11mm Weight: 25g Connector: XT30 |
Package Included:
1x Sailfly-X FPV Racing Drone
1x 3D Printed 30 Degree Angle Canopy ( Red)
1x 3D Printed 40 Degree Angle Canopy ( Purple)
1x 3S 11.4v 300mah 30C/60C battery
1x Propeller disassemble tool
1x Screwdriver
