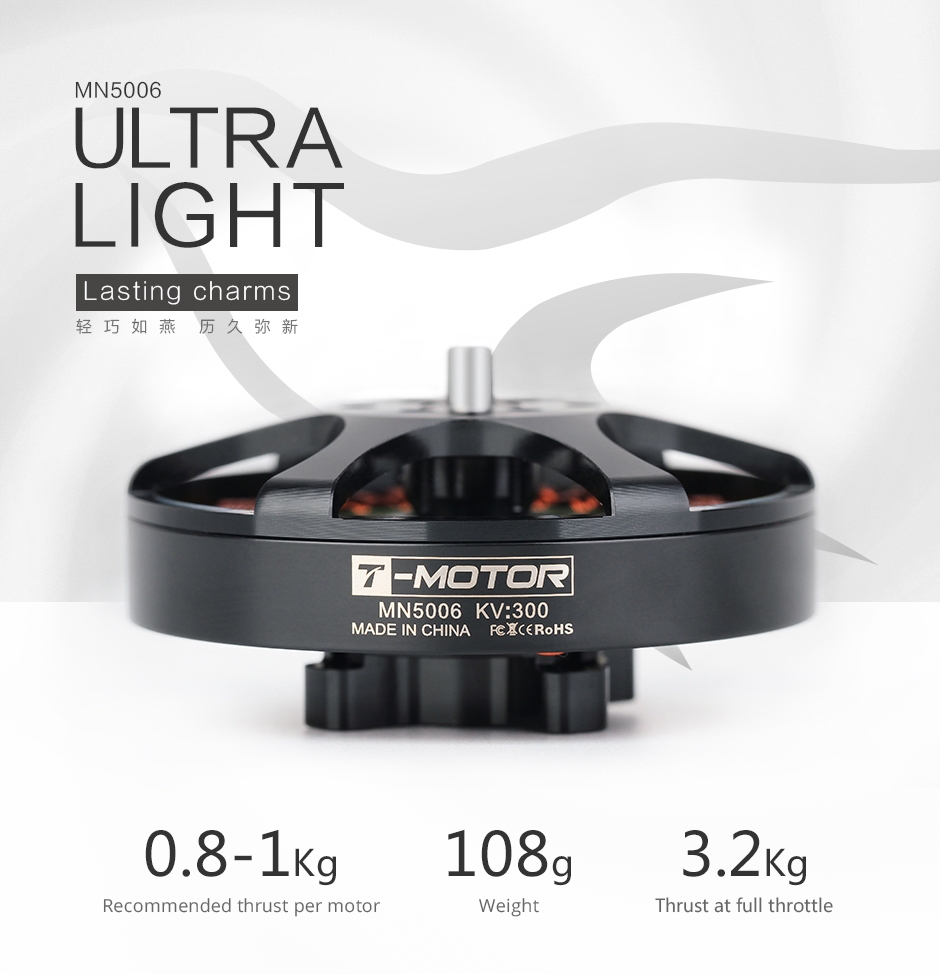

T-Motor Antigravity MN5006 300KV / 450KV 4-6S Brushless Motor 108g Flight Time Up to 60mins for MultiCopter RC Model - 84.00 €

T-Motor Antigravity MN5006 300KV / 450KV 4-6S Brushless Motor 108g Flight Time Up to 60mins for MultiCopter RC Model
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Specification:

Brand Name: T-Motor

Model: MN5006

Item Name: Antigravity MN5006 300KV / 450KV 4-6S Brushless Motor

Configuration: 24N28P

Shaft Diameter: IN 6mm

Bearing: Imported 696ZZ


KV300KV Version450KV Version
Rated Voltage
4-6S Lipo
4-6S Lipo
Idle Current (22V)
0.6A0.9A
ESC Recommendation
T-Motor Air 40AT-Motor Air 40A
Peak Current (180S)
20A26A
Propeller Recommendation
17-18 Inch14-18 Inch
Max. Power (180S)
500W650W
Motor Weight (Incl. Cable)
108g106g
Internal Resistance
125mΩ60mΩ


Sator: Imported Silion Steel Sheet; Anti-rust Treament; 180 Degree High Temperature-risisting coatings

Magnet Level: 150 Degree High Temperature Risistance; Level E

Lead Cable: 60mm

Copper Wire: 180 Degree High Temperature Risistance; Level H

Coil Insulation Test: 500V

Centrifugal Cooling Design: YES

Rotor Dynamic Balance Standard: Less than 5mg

Motor Dynamic Balance Standard: Less than 10mg

IP: IP35

Motor Size: 55.6x30mm

Package Size: 106x81x35mm


Package Included:

1x T-Motor MN5006 Motor

2x M3*10 Screw

1x Cooper Adapter

1x Cover
