Description:

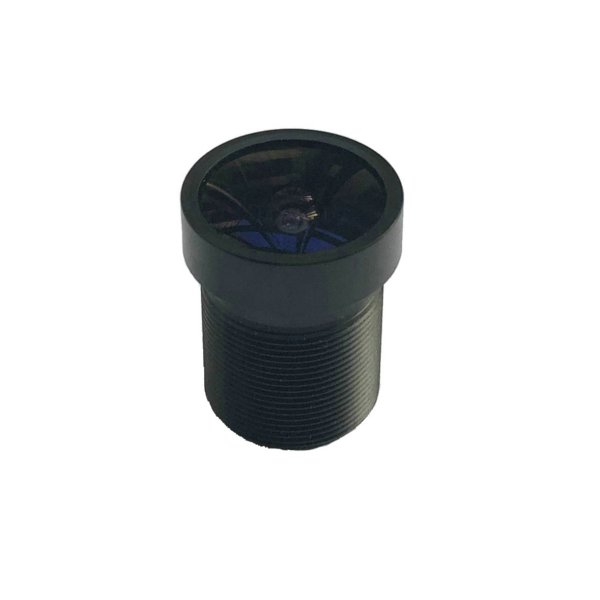

Item Name: FPV Camera Lens
Sensor: CMOS/CCD
Format: 1/2.5"
Format: 1/2.5"
Focal Length (EFL): 2.8mm ± 5%
FOV: D-146°,H-126°,V-68°
M-BFL: 5.2mm ± 0.1(including 0.5CG and 0.3IR)
Resolution: Center - 200 lp/mm, Ф4.5 - 125 lp/mm
Construction: 6g
Mount: M12*P0.5-6g
FOV: D-146°,H-126°,V-68°
M-BFL: 5.2mm ± 0.1(including 0.5CG and 0.3IR)
Resolution: Center - 200 lp/mm, Ф4.5 - 125 lp/mm
Construction: 6g
Mount: M12*P0.5-6g
Optional Distortion: -63.00%
TV Distortion: -21%
TTL: 22.7mm ± 0.3mm (including 0.5CG and 0.3IR)
CRA: 16°
Image Circle: Ф7.0mm (1/2.7")
Features:
850nm IR sensitive lens.
Excellent coating process, with multi-layer coating.
5 million high resolution designs with consistent edge and center imaging,suitable for 720P and 1080P HD camera.
Suitable for HS1177, Runcam camera.
Note: 5 million high resolution designs with consistent edge and center imaging,suitable for 720P and 1080P HD camera.
Suitable for HS1177, Runcam camera.
Used with SJCAM camera requires cut-off infrared filter to avoid colour cast.
Package Included:
1x 1/2.5" 2.8MM M12 115 Degree HD lens
