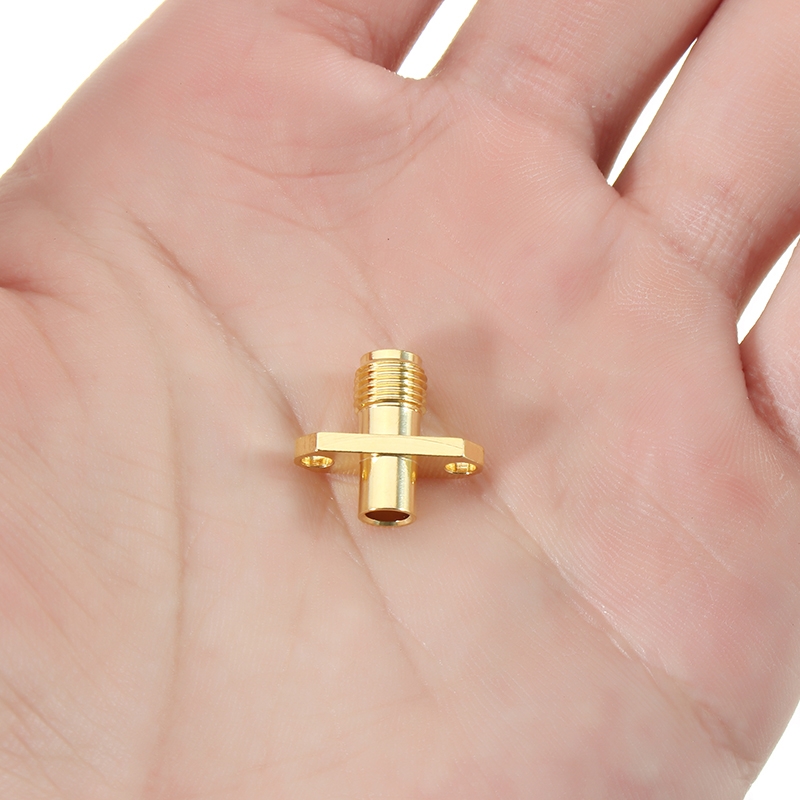

10 PCS MA-KFD 5mm Flange Terminal Antenna Connector RP-SMA Female 2 Hole Square Plate Panel Straight - 5.00 €


10 PCS MA-KFD 5mm Flange Terminal Antenna Connector RP-SMA Female 2 Hole Square Plate Panel Straight
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

10 PCS MA-KFD 5mm Flange Terminal Connector RP-SMA Female 2 Hole Square Plate Panel Straight For Coaxial Cable
Specification
Temp. : -65~+165°C (PE Cable -40~+85°C)
Vibration : MIL-STD-202,Method 213
Impedance : 50Ω
Frequency : DC~12.4GHz(Semi-rigid cable 0~18GHz)
Working Voltage : 335V max (effective)
Withstand Voltage : 1000V rms (Minimum sea level)
Contact Resistance
Center Contact ≤ 3 mΩ
Outer Contact ≤ 2 mΩ
Insulation Resistance ≥ 5000MΩ
Insertion Loss ≤0.15 dB/6GHz
VSWR
Straight soft cable≤1.10+0.002f
Semi-rigid cable≤1.05+0.001f
Curved flexible cable≤1.20+0.003f
Durability≥500 Times(cycles)
Package Included
10 x Connector
,
,
