20x20mm Holybro Kakute F7 Mini Flight Controller & Tekko32 F3 45A Mini BL_32 4in1 ESC Combo for RC Drone FPV Racing - 99.00 €

20x20mm Holybro Kakute F7 Mini Flight Controller & Tekko32 F3 45A Mini BL_32 4in1 ESC Combo for RC Drone FPV Racing
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

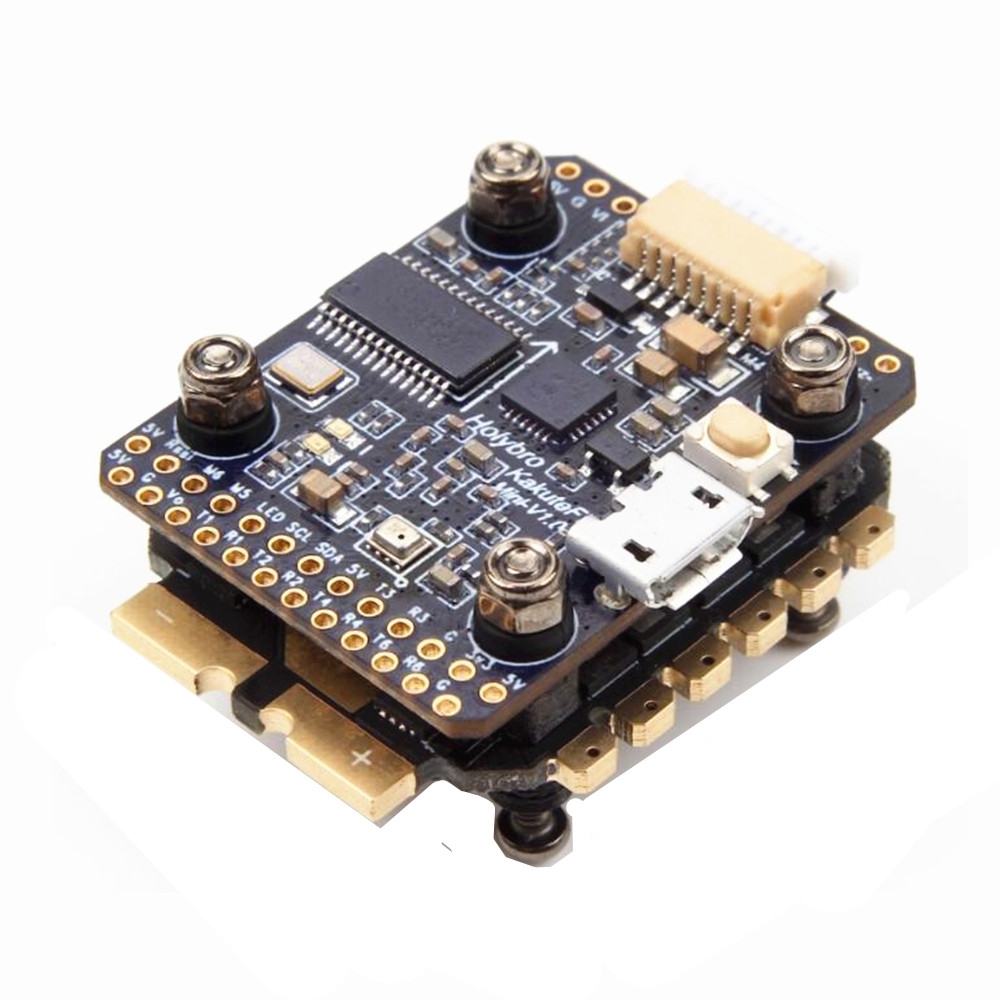

20x20mm Holybro Kakute F7 Mini Flight Controller & Tekko32 F3 45A Mini BL_32 4in1 ESC Combo for RC Drone

Specication:
Brand Name: Holybro
Model: KAKUTE F7 Mini
Item Name: F7 2-6S Flight Controller & Tekko32 F3 45A Mini BL_32 4in1 ESC Combo

KAKUTE F7 Mini Flight Controller
MCU: STM32F745VGH6 32-bit processor,216MHz, 320Kbytes RAM, 1Mbytes Flash
IMU: ICM20689 (SPI)
Barometer: BMP280
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
5.5 hardware UARTS (UART1,2,3,4,6,7)
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
Onbord 16Mbytes for Blackbox logging
5V Power Out: 1.0A max
3.3V Power Out: 0.2A max
Dimensions: 33x26x6mm
Mounting Holes: Standard 20mm square to center of holes
Weight: 4g

Tekko32 F3 45A Mini ESC
Item Name: 45A BLheli_32 3-6S 4 in 1 ESC
Con. Current: 45A
Peak Current: 50A
- F3 MCU, runs double faster than F051
- 32bit ESC with BLHELI32 firmware
- Supports 3-6S lipo input
-PWM input, TLM supported
- Voltage output (VBAT)
- NO BEC
- Supports oneshot / Multishot / Dshot PWM
- Supports damped light
- Ext. cap needed for 6s (470uf 35v for 6s usage.)
- Mounting holes M2, 20x20mm
- Size:30 x 36 mm
- Weight: 7.8g

Packag Included:
1x F7 Flight Controller Board
1x Tekko32 F3 4in1 45A mini ESC
1x M2 Rubber rings
1x JST SH 8pin 30mm cable
1x JST SH 8pin 150mm cable
1x Electrolytic capacito: 470uF 35V
1x 8pin to 8pin 1mm pitch 65mm cable
1x 8pin to 8pin 1mm pitch 25mm cable
