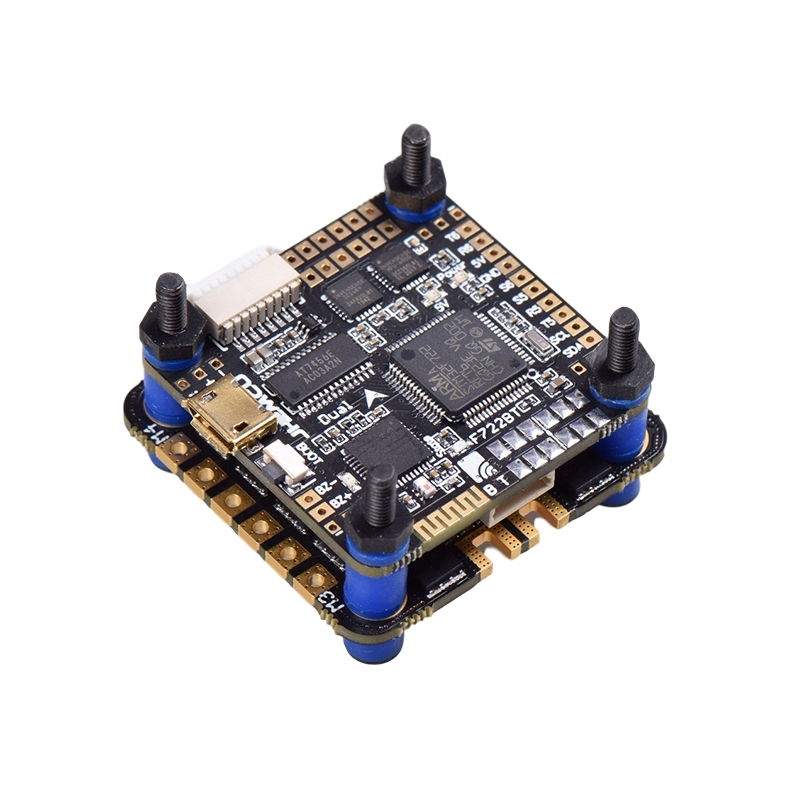

30.5x30.5MM JHEMCU F722BT Dual F722 F7 Bluetooth Flight Controller OSD & 40A 3-6S Blheli_32 Brushless ESC compatible DJI FPV Air Unit for RC Drone FPV Racing - 53.00 €


30.5x30.5MM JHEMCU F722BT Dual F722 F7 Bluetooth Flight Controller OSD & 40A 3-6S Blheli_32 Brushless ESC compatible DJI FPV Air Unit for RC Drone FPV Racing
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Specification:


Flight Controller:

Brand Name: JHEMCU

Model: F7BT

Item Name: F7 2-6S Flight Controller AIO OSD & BEC

Input Voltage: 2-6S Lipo

Main Chip: STM32F722RET6 216MHz

Gyroscope: ICM20689 & MPU6000 (SPI)

Barometer: BMP280

OSD: AT7456E

Firmware: Betaflight

Target: JHEF7DUAL.HEX

Black Box: 16MB

LED Program: Support

Buzzer: Support

I2C Interface: Support

BEC1: 5V @ 2A ( for Receiver, LED, Buzzer etc.)

BEC2: 8V @ 3A ( for Camera, VTX. Open or Close it via USER2)

Support Dual Camera Input: VIN1, VIN2: Video Input Port ( VIN1 in default, Can switch via USER1)

Series UART: UART1, UART2, UART3, UART4, UART5, UART6

Support Bluetooth: ( UART4, Baud Rate 115200, Name: JHEMCU)

Support DJI Air Unit: ( reserves special port for DJI VTX and includs connection cable )

Support DSM2/X ; IBUS; SBUS Receiver ( RX2)

Mounting Hole: 30.5x30.5mm, M4

Size: 36x36mm

Weight: 7.2g


CLI:

status //

set gyro_to_use = FIRST //ICM20689


set gyro_to_use = SECOND //mpu6000


save //


Brushless ESC

Item name: 40A 3-6S Blheli_32 4 IN 1 Brushless ESC

Continue current: 40A
Burst current: 50A
Input voltage: 3-6S
BEC: 5V
Firmware: Blheli_32
Support DSHOT 150/300/600/1200/MULTISHOT/PWM/ONESHOT

32 Bit ARM Cortex MCU STM32F051 48MHZ

Current Sensor: YES

Installation hole: 30.5x30.5MM
Weight: 10.9g


Package Included:

1 x F722BT Dual F722 F7 Bluetooth Flight Controller

1 x 40A 3-6S Blheli_32 4 IN 1 Brushless ESC
