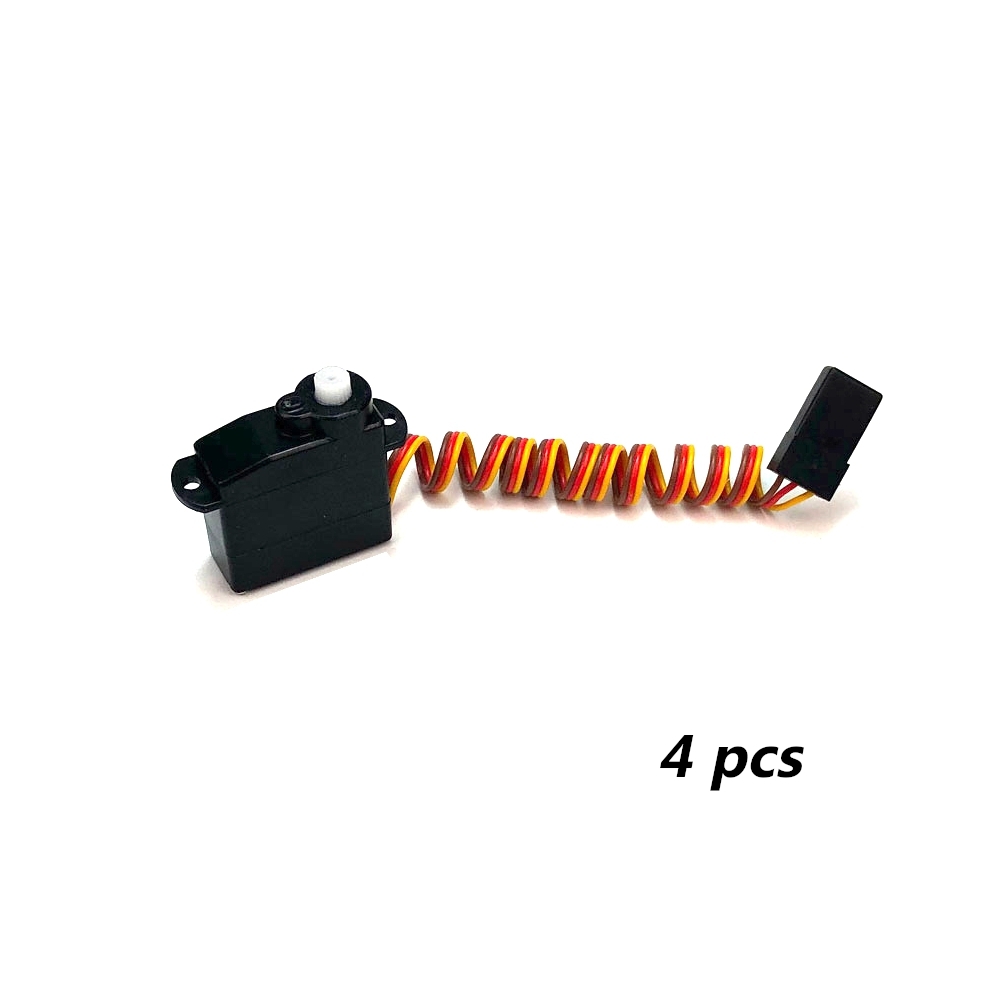

4 PCS PZ 5g Thin Servo 4.3g Analog Plastic Gear 300g Torque TJC8 2.54mm 3P for RC Drone Car Robot Airplane Aircraft Fixed Wing Plane - 21.00 €


4 PCS PZ 5g Thin Servo 4.3g Analog Plastic Gear 300g Torque TJC8 2.54mm 3P for RC Drone Car Robot Airplane Aircraft Fixed Wing Plane
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

4 PCS PZ 5g Thin Servo 4.3g Analog Plastic Gear 300g Torque TJC8 2.54mm 3P for RC Drone Car Robot Airplane Aircraft Fixed Wing Plane
Specification
Model : 4.3g Thin Servo
Voltage Input : 3.7v-4.2v
Operating Speed(at no load) : 0.11±0.01 sec/60°@3.7V/ 0.09±0.01 sec/60° @4.2V
Running Current (at no load) : 30mA±10mA @3.7V / 40mA±15mA @4.2V
Stall Torque(at load) : 0.30±0.02kg*cm @3.7V / 0.35±0.02kg*cm @4.2V
Stall Current (at load) : 300mA±20mA @3.7V / 430mA±20mA @4.2V
Idle Current (at stopped) : 2mA±1mA
Running Life(at no load) : >12000 times @3.7V / >9000 times @4.2V
Temperature Drift (at 25℃) : <=1°
Limit Angle : 180°± 10°
Reduction Ratio : 1/378
Amplifier Type : Digital Controller
Neutral Position : 1500 usec
Connector : Molex pico 1.25mm 3P / TJC8 2.54mm 3P
Package Included
4 x PZ 5g Thin Servo 4.3g Analog Plastic Gear 300g Torque TJC8 2.54mm 3P for RC Drone Car Robot Airplane Aircraft Fixed Wing Plane
