ALZRC 505 RC Helicopter Parts 1200KV Brushless Motor - 96.99 €

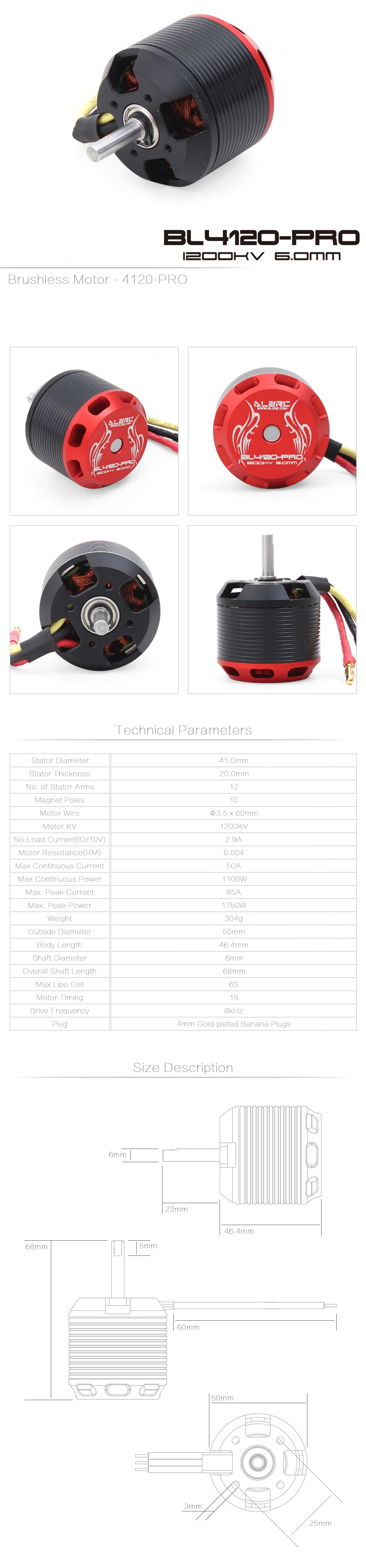

ALZRC 505 RC Helicopter Parts 1200KV Brushless Motor
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Specification:
- Stator Diameter: 41.0mm
- Stator Thickness: 20.0mm
- No. of Stator Arms: 12
- Magnet Poles: 10
- Motor Wire: Φ3.5 x 60mm
- Motor KV: 1200KV
- No-Load Current(IO/10V): 2.9A
- Motor Resistance(RM): 0.004
- Max Continuous Current: 50A
- Max Continuous Power: 1100W
- Max. Peak Current: 85A
- Max. Peak Power: 1750W
- Weight: 304g
- Outside Diameter: 50mm
- Body Length: 46.4mm
- Shaft Diameter: 6mm
- Overall Shaft Length: 68mm
- Max Lipo Cell: 6S
- Motor Timing: 15
- Drive Frequency: 8kHz
- Plug: 4mm Gold-plated Banana Plugs
- Compatible with 505 rc helicopter

Package Included:
1x Brushless Motor
