ALZRC Devil 450 Pro V2 SDC/DFC RC Helicopter Standard Combo - 149.99 €

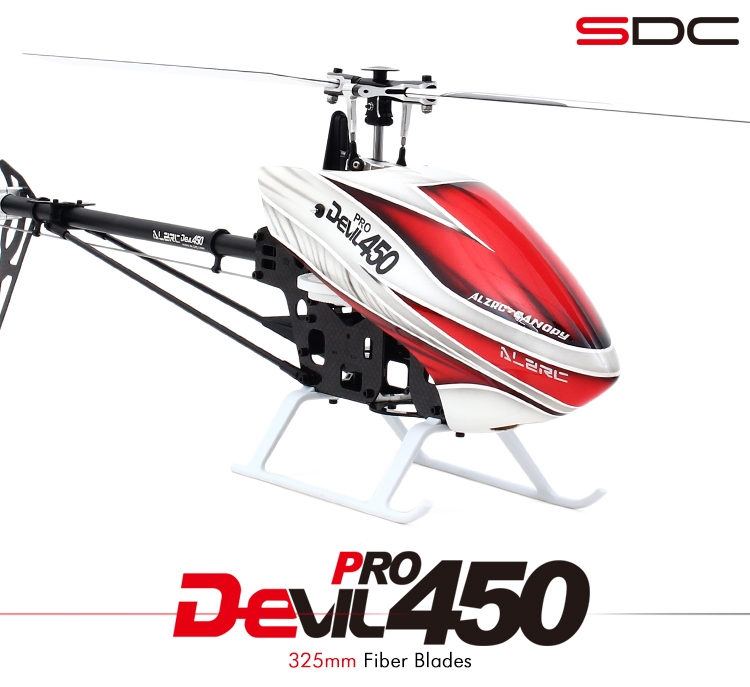

ALZRC Devil 450 Pro V2 SDC/DFC RC Helicopter Standard Combo
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video




Description:

1. With SDC/DFC flybarless main rotor head group, low center of gravity design, can effectively reduce flight drag, giving a more direct and precise flight response and faster flight speed.
2. Improved side frame design, with dedicated Gyro mounting location. Gyro can be placed in between frames, or behind anti-rotation guide, resulting in clean wire management and improved aesthetics.
3. New lightweight Main Shaft Bearing Block, with Φ5xΦ13x4mm size bearings, more durable.
4. Longer battery mounting plate with integrated ESC mount. Not only is the battery mount more rigid, the battery can be shifted based on its dimension for better CG. In addition, the screw count has been reduced to minimize assembly and maintenance time.
5. High efficiency tail shaft drive design, dramatically reduce power loss associated with belt driven system, and at the same time increase power output.
6. Vertical rudder servo mount design moving the CG closer to center, improving agility during 3D maneuvers.
7. Unique opposing weighted tail blade grips effectively increase rudder and gyro performance, for superior tail locking and higher precision.
8. The new shape and flow line style painting fugelage canopy.

Specification:

●Length: 635mm
●Heigh: 200mm
●Main Rotor Diameter: 710mm
●Tail Rotor Diameter: 158mm
●Motor Pinion Gear: 11T
●Main Drive Gear: 121T
●Autorotation Tail Drive Gear: 106T
●Tail Drive Gear: 25T
●Drive Gear Ratio: 1:10.08:4.24
●Weight: 480g
●Weight(without electrical device): 600g

Radio transmitter and electronic equipment required for assembly:

1.Transmitter: 6-channel or more,helicopter system
2.Receiver: 6-channel or more
3.Pitch Gauge: Digital Pitch Gauge
4.Battery: 2000~2300mAh 11.1V 3S Li-Po Battery
5.Swashplate Servo: Micro Digital Metal Servo x 3
6.Tail-lock Servo: Medium Digital Metal Servo x 1
7.Gyroscope: Flybarless Gyro System x 1
8.Other: Plug & Assemble Tools Set

Assembly Instruction: Click and download

Package included:

1 x Devil 450 Pro V2 KIT
1 x HobbyWing - Pentium-50A-V3 Brushless ESC
1 x 450X 3S- 3800KV Brushless Motor - Red(RCM-BL450X38)
