Specification:
Model: Vista KIT
Weight: Vista KIT(camera included):24g/Antenna:2.5g
Dimensions:
Vista Kit: 30x29x13mm
Camera: 14x14x21mm
Coaxial Cable:80mm/120mm
Operating Frequency: 5.725-5.850GHz
Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm
Min. Latency (end-to-end):720p 60fps: 32ms
Max. Transmission Distance: FCC/SRRC: 4km, CE: 0.7km
I/O Interface: USB-C,IPEX,3-in-1 Port
Supported Flight Control System: F3,F4,F7
Operating Temperature Range: 32° to 104° F (0â ~40â)
Input Power: 7.4-26.4V
Power output: 25mW/200mW/500mW/700mW
Hardware included:Vista/Nebula nano/Coaxial cable/Antenna
Goggles: work with DJI goggles
Camera:Sensor: 1/3''CMOS
Lens: 2.1mm,f/2.1
Shutter: Rolling shutter
FOV: 150°[D],122°[H],93°[V]
Package included:

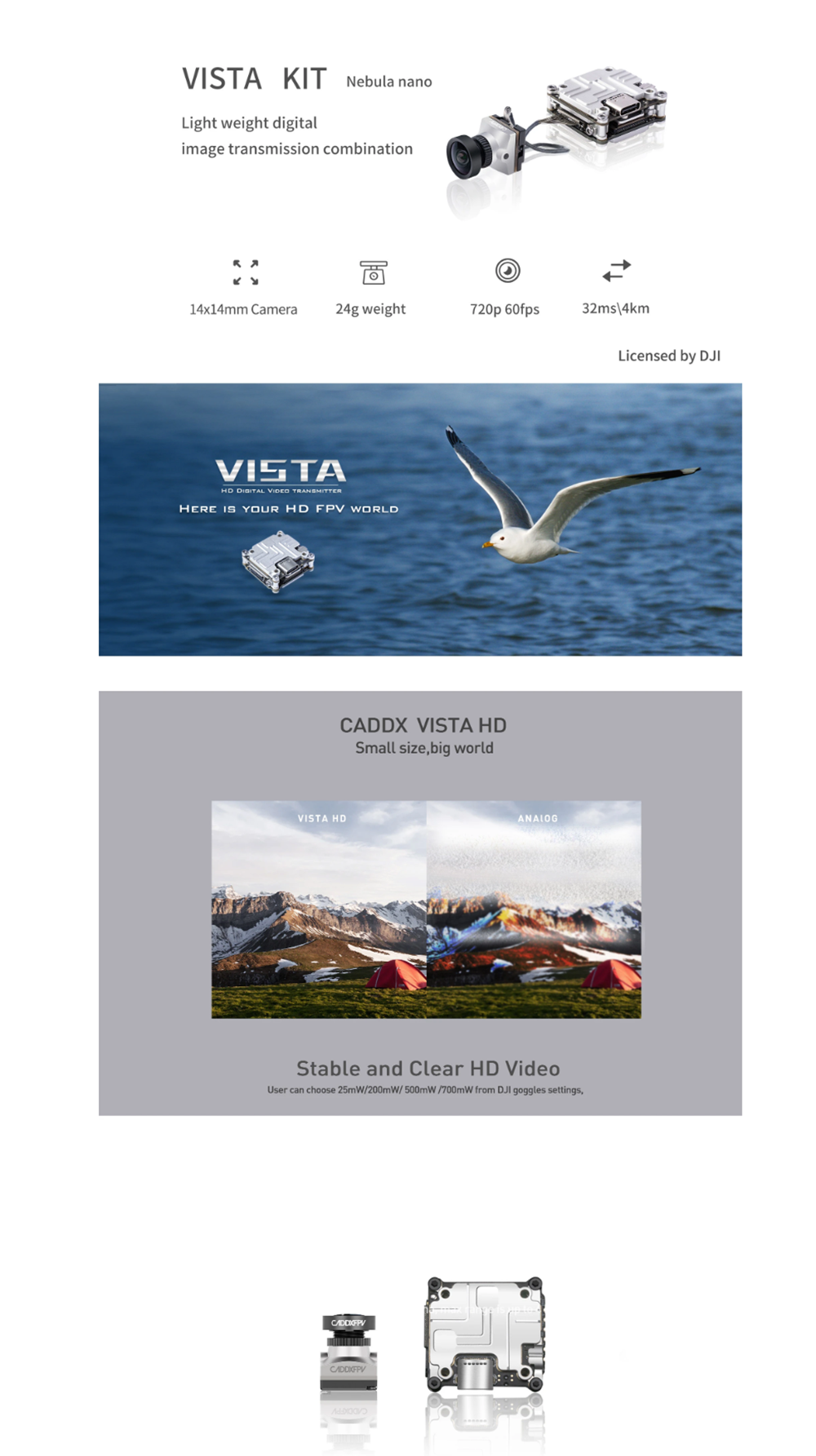

1 x Caddx Nebula Nano Kit Vista HD Digital System 5.8GHz FPV Transmitter VTX+2.1mm 150° 720P 60fps FPV Camera AIO for DJI Digital Unit Googles
