The CLRacing Bluetooth USB adapter is compatible with the SpeedyBee app (Android&IOS), and allows wireless flight controller configuration in the field!
Check out all our tools & building accessories, and all our CLRacing gear!
Features
- 2s-8s power input, at the same time, the Mi.cro USB interface supplies power to the flight controller (A battery can simultaneously power the Bluetooth module and the flight controller)
- Support FC power the bluetooth module.(on supported OTG CLRACING products)
- Support STM32/Cp210x USB Connector, compatible with most flight controllers
- Using with SpeedyBee APP, the most convenient Mobile Ground Station!
- iOS Device: i Phone 4S, i Pad 3rd Gen and later iOS 10.0+ : IApp Store Download
- Android 4.3+ Devices: Google Play Download
Specifications
- Output Power: 0 dBm
- Receiver Sensitivity: -94 dBm
- Transmission Rate: Bidirectional 2K/S
- Bluetooth Protocol: Bluetooth Specification V4.0 BLE
- Transmission Distance: 10m
- Frequency Ra.nge: 2400 MHZ – 2483.5MHZ (2.4G ISM Band)
- Baud Rate: 19200
- USB to Serial Port Baud Rate: 115200
- Operating Voltage: 2-8S LiPo (6 – 30V)
- Minimum Operating Current: 20mA
- The Operating Current When Connecting FC: 80mA
- Dimension: 42x20x5.6mm
-
Net Weight: 3.5g

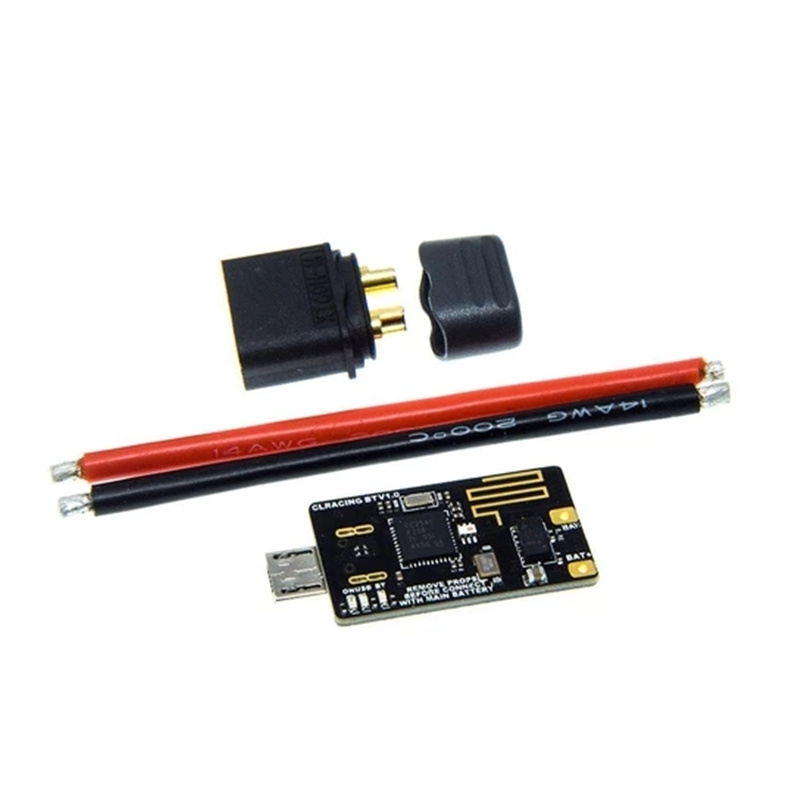

Includes
- 1x CLRacing Bluetooth USB Adapter
- 1x XT60 Connector
- 1x Wire Set
