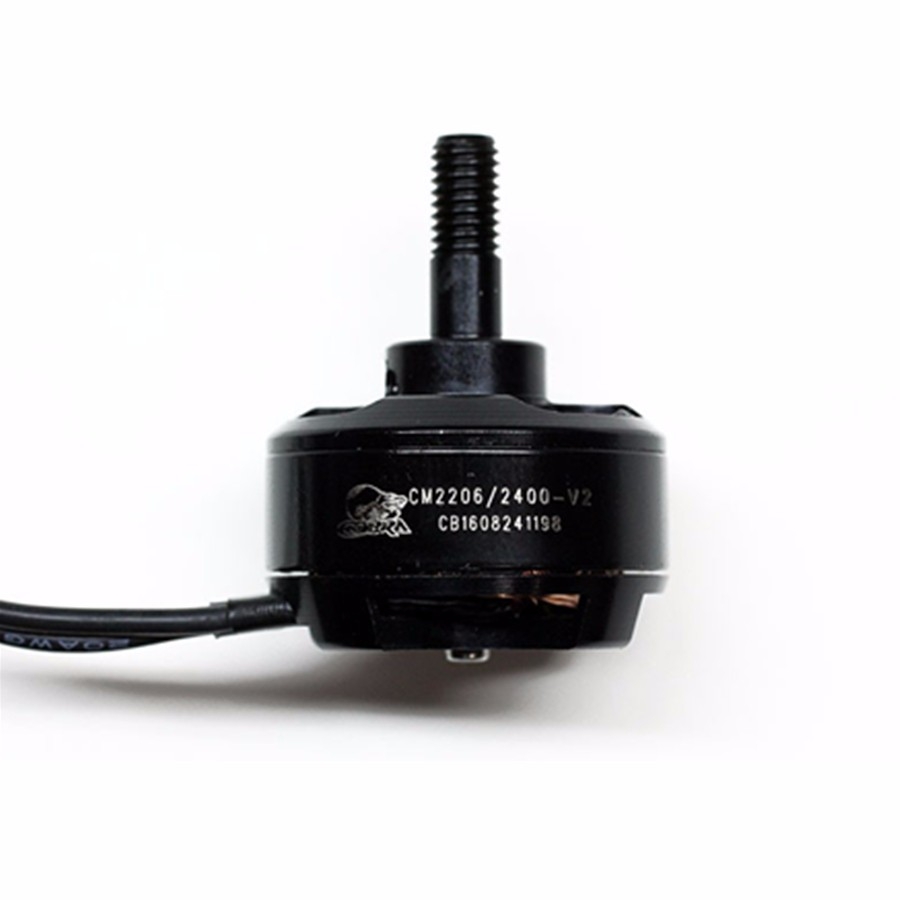

Cobra Racing Edition 2206 CM2206 2400KV V2 3-6S Brushless Motor For 250 FPV Racing Multirotor Frame
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Cobra Racing Edition 2206 CM2206 2400KV V2 3-6S Brushless Motor For 250 FPV Racing Multirotor Frame




Description:
Brand: Cobra
Item name: CM2206 2400KV V2 Brushless Motor
Stator diameter: 22.0 mm (0.866 in)
Stator thickness: 6.0 mm (0.236 in)
Number of stator slots: 12
Number of magnet poles: 14
Motor wind: 20 turn delta
Motor KV value: 2400 RPM per Volt
No load current (Io): 0.85 Amps @ 10 Volts
Motor resistance (Rm) per Phase: 0.098 Ohms
Motor resistance (Rm) Phase to Phase: 0.065 Ohms
Maximum continuous current: 25 Amps
Max continuous power (3-cell Li-Po): 280 Watts
Max continuous power (4-cell Li-Po): 370 Watts
Motor weight: 32 grams (1.29 oz.)
Outside diameter: 27.0 mm (1.063 in.)
Motor shaft diameter: 3.00 mm (0.118 in.)
Prop shaft diameter: 5.00 mm (0.197 in.)
Motor body length: 16.5 mm (0.650 in.)
Overall shaft length: 35.3 mm (1.390 in.)
Motor timing: 5-10 degrees
PWM frequency: 8-20 KHz
Features:
The performance of V2 is same with CM-V1, however, Cobra Motors add magnet locking system inside of V2. So it will be much stronger.
Designed from the ground up to be the ultimate power source for 250mm FPV Racing Quads running on 4-cell Li-Po power!
Has a 3.0mm motor shaft for extra strength, as well as oversize ball bearings to support the shaft and provide a long life.
The stators are made with 0.20mm laminations for maximum efficiency and minimum Eddy Current losses.
Since these motors are typically soldered directly to the speed controller to save weight, the 2206 motors come without bullet connectors and feature extended pre-tinned motor leads that are 10 inches (254mm) long.
Has 3mm threaded holes in a 16x19mm pattern on the back plate for easy installation on your model.
Integrated 5mm threaded motor shaft which eliminates the chance of having a prop adapter spin off in flight.
The included prop washer and nylon insert prop nut provides a solid attachment for your propellers that will not loosen up and slip during use.
Package included:
1 x Cobra CM2206 2400KV V2 Brushless Motor
1 x Flange style Self-locking prop nut with nylon insert
4 x M3 flat washers
4 x M3*6 Hexagon socket head screw
