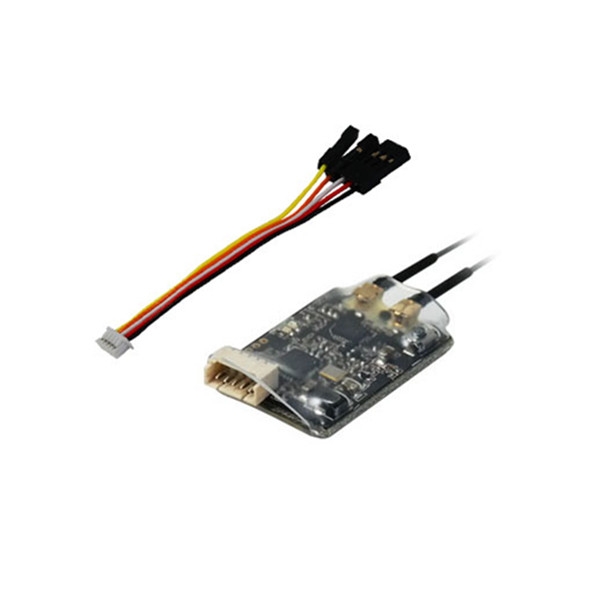

Cooltech D16-1 D16 Mode Full Range Compatible FPV Receiver for RC Drone - 22.00 €


Cooltech D16-1 D16 Mode Full Range Compatible FPV Receiver for RC Drone
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Cooltech D16-1 D16 Mode Full Range Compatible FPV Receiver for RC Drone

Specifcation:
Brand name: cooltech
Item name: D16-1 receiver
Working Temperature Range: -10~+80℃
Operating Voltage Range: 3.5~15.0V
Dimension: 26.5X20X6mm
Weight: 3.8g
Receiving Mode: D16 mode
Operating Range: Full range
Number of Channnels: 16CH from S.BUS channel and 8CH from CPPM channel

Features:
-Ultra mini size and light weight
-Support telemetry data transmission
-Replaceable antennas
-Upgradeable firmware
-Rather long operating range with PA

Binding procedure:
1. Turn on the transmitter, get to the MANU- MODEL SETUP and select BIND. Connect battery to the receiver while holding
the F/S button on the receiver, the red LED flashing indicates binding successfully.
2. Reboot the receiver and go back to mormal mode of transmitter RF, the green LED constant on indicates linking normally.
Note: After binding procedure is completed, recycle the power and check if the receiver is really under control by linked transmitter.

Failsafe:
Failsafe is a useful feature in which all controls move to a preset position whenever the control signal is lost for a period of time.
D16-1 supports failsafe fuction for all channels.
Follow the steps below to set failsafe positions for each channel:
1. Bind the receiver first and turn on both the transmitter and the receiver
2. Move the controls to the desired failsafe position for all channels
3. Press briefly the F/S button on the receiver(less than 1 second), the green LED will flash twice,indicating the failsafe position has been set in the receiver
4. To disable the failsafe fuction, just need to rebind the receiver

Package included:
1x D16-1 receiver
