CYS-S8202 High Torque Metal Gear Digital Steering Servo for 450 500 RC Helicopter RC Off-Road Car - 16.00 €

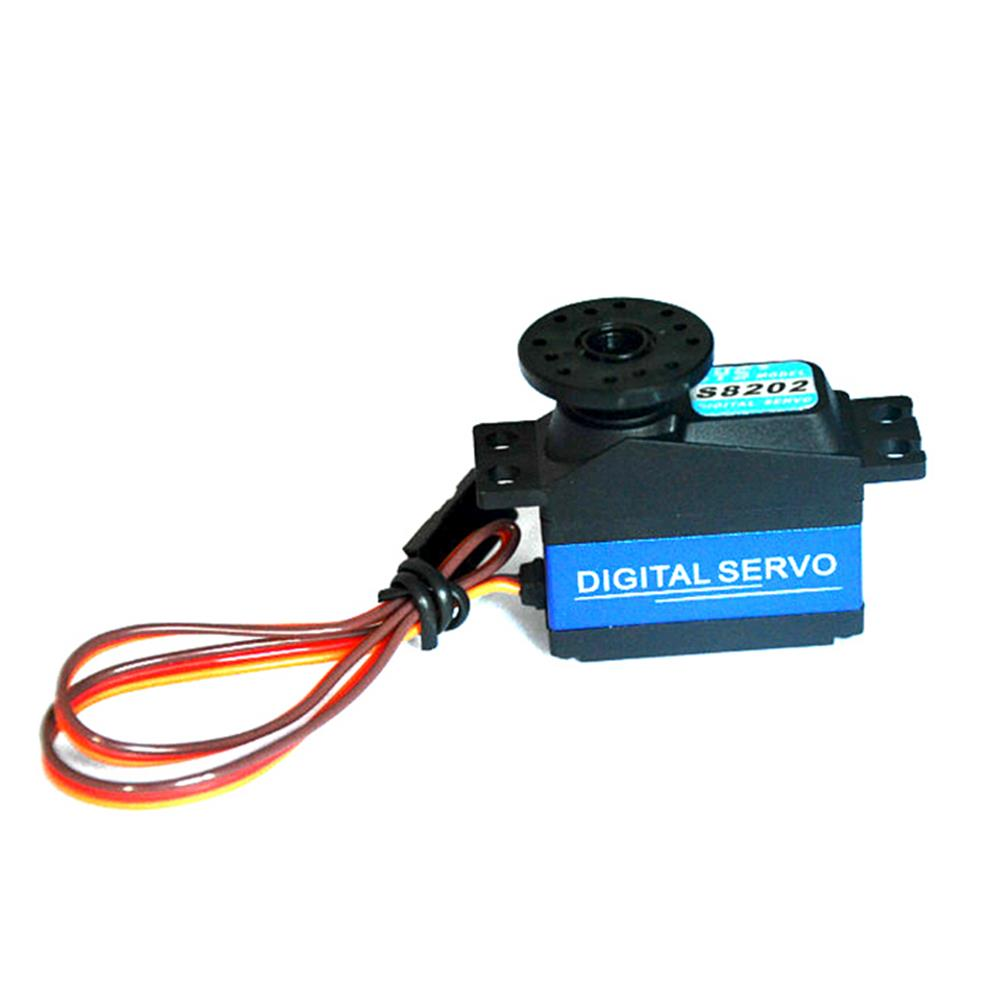

CYS-S8202 High Torque Metal Gear Digital Steering Servo for 450 500 RC Helicopter RC Off-Road Car
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

CYS-S8202 High Torque Metal Gear Digital Steering Servo for 450 / 500 RC Helicopter RC Off-Road Car

The CYS-S8202 5Kg Digital Servo features HV high torque, metal gear, fast heat dissipation, sensitivity and responsiveness, which with high quality and performance is tailored for RC hobbyist to provide different experience and delight.

Features:
Wide operating voltage-4.8V to 6.0V
Easy to install and exquisite workmanship
High-precision metal gears provide more accuracy
Large Torque - maximum torque is up to 5kg.cm (6.0V)
Made of first-grade material ensure the longevity of the products
Ideal choice for 450 / 500 RC helicopter RC Car Boat Airplane

Description:

Item No.CYS-S8202
TypeDigital
Weight2 5g
Size35*15*30mm
Control System(+)Pulse Width Control 1500usec Neutral
Required Pulse
Operating Voltage4.8~6.0Volts
Operating Temperature Range(-)20 to +60 degree C
Operating Speed (4.8V)0.12sec/60° at no load
Operating Speed (6.0V)0.10sec/60° at no load
Stall Torque (4.8V)2.2kg.cm
Stall Torque (6.0V)2.5kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
360 ModifiableNo
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (4.8V)20mA/idle and 120mA no load operating
Current Drain (5.0V)20mA/idle and 150mA no load operating
Stall Current800mA/900mA
Dead Band Width2usec
Motor Type3 Pole Ferrite Drive
Bearing TypeDual Ball Bearing
Horn gear spline25T
Gear TypeMetal

Important Notes:
-Refer to the figure when installing the servo accessories.
-For engine powered airplanes and boats, rubber must be used to reduce vibration.
- Please choose correct model for your application.
-Torque over-loaded will damage the servo's mechanism-.
- Keep the servo clean and away from dust, corrosive gas and humid air.

Package Included:
1 * Digital Servo
1 * Spare Parts Set
