Eachine Cvatar 142mm 4S 3 Inch Cinewhoop Duct FPV Racing Drone PNP/BNF Analog Version RunCam Nano2 Cam F722 DJI FC 1507 3600KV 35A ESC - 185.00 €


Eachine Cvatar 142mm 4S 3 Inch Cinewhoop Duct FPV Racing Drone PNP/BNF Analog Version RunCam Nano2 Cam F722 DJI FC 1507 3600KV 35A ESC
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Eachine Cvatar 142mm 4S 3 Inch Cinewhoop Duct FPV Racing Drone PNP/BNF RunCam Nano2 Cam F722 DJI Flight Controller 35A ESC


Note: Camera Protection Case for Gopro is not Included.

It comes with parts for installing DJI FPV Air Unit to upgrade to DJI HD Version.

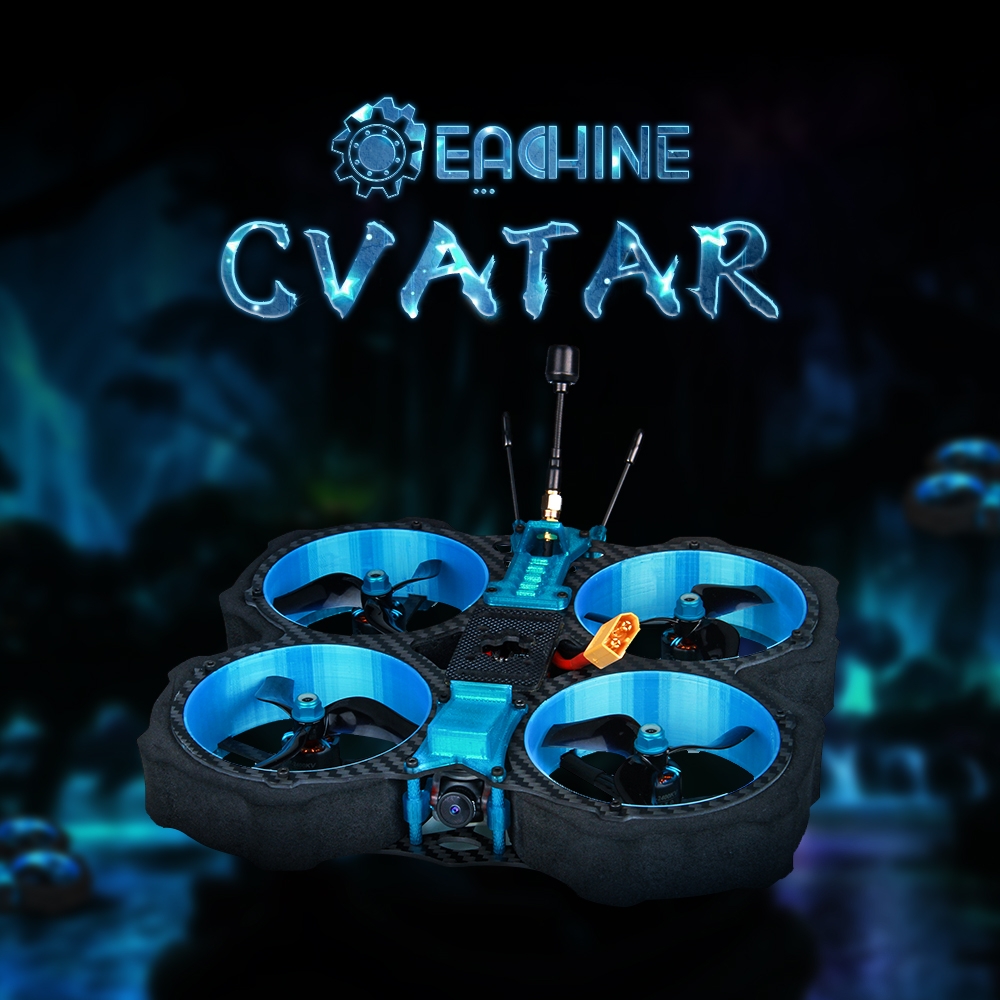

The Cvatar is the new cinewhoop from Eachine. Cvatar comes from the word Avatar, it combines with Cinewhoop and the science fiction feeling of Avatar.It is very stable and can fly around people and property safely. The possibilities of creation of videos are thus unlimited. The newest F722 FC in the Cvatar is DJI ready too, so you can switch to DJI digital system with ease. Get the Cvatar now and you can experience a different feeling of cinewhoops.

Specification:

Brand Name:Eachine

Item name: Cvatar 142 Cinewhoop FPV Racing Drone BNF/PNP

Net Weight:288.2g (Weight with receiver)


Frame

Wheelbase:142mm

Type:3 Inch Cinewhoop Frame

Weight:92.4g (Excluding TPU PLA)

Flight Controller

F722 Mini Flight Controller

MPU:MPU6000

CPU:STM32F722 RET6

Input Voltage:2-6S Lipo

Barometer: BMP280

Weight:3.7g
ESC

35A BL32 3-6S 4in1 ESC

CPU:STM32F051

Input Voltage:3-6S Lipo

Steady Current:35A

Peak Current:40A(10 Sec)

Weight:6.5g

VTX

EACHINE TXC23 VTX

Output power:PIT/25/200/600/800mW

Input:DC 6-36V

Antenna:MMCX

Weight:5g

Camera

RunCam Nano2 FPV Camera

Image Sensor:1/3 700TVL CMOS

Lente:2.1mm

Input Power:DC 5V

Dimensions:14mm*14mm*16mm

Net weight:3.2g

Brushless Motor

1507 3600KV Brushless Motor

Motor:KV3600 (4S)

Input Voltage:3-6S

Recommended Prop(inch):3 Inch

Weight:15.9g

Propeller

Gemfan 75mm 3 Inch 3-Blade Propeller

Quantity:4 CW & 4 CCW


Recommended battery(Not Included):

4S:850mah-1300mAh


Package Included:

1 x Eachine F722 mini Flight Controller

1 X Eachine 35A BL32 3-6S 4in1 ESC

4 x Eachine 1507 3600KV Brushless Motor

1 x Eachine Cvatar 142 Freestyle Frame Kit

1 x Eachine TXC23 VTX

1 x RunCam Nano2 FPV Camera

6 x Gemfan 75mm propeller

1 x Eachine Hammer Antenna

1 x Receiver (BNF ONLY)
