Eachine EV800D 5 Inch 800*480 FPV Goggles + TX06 NTSC 700TVL Mini FPV VTX-Camera All in ONE Combo - 102.00 €

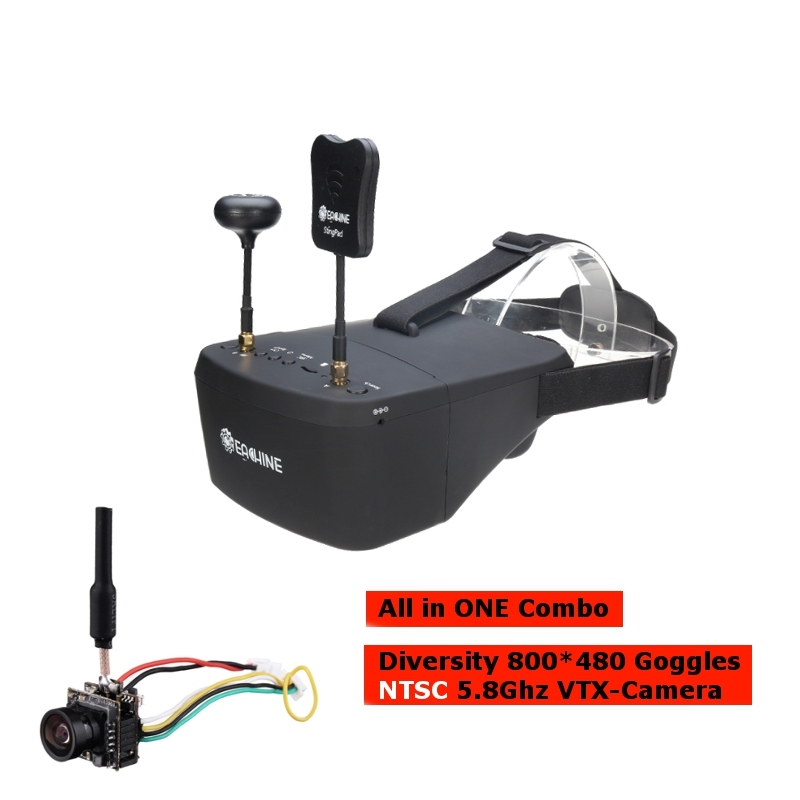

Eachine EV800D 5 Inch 800*480 FPV Goggles + TX06 NTSC 700TVL Mini FPV VTX-Camera All in ONE Combo
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Eachine EV800D 5 Inch 800*480 FPV Goggles + TX06 NTSC 700TVL Mini FPV VTX-Camera All in ONE Combo



EV800D Goggles Features:
Built-in with super HD DVR up to 720*576px resolution
Diversity RaceBand 40ch Auto-Searching

Two system (Display/Re cord duo core separated chipsets ) ensure no delay in displaying and no frame lost in recording(please use C10 super speed card to ensure the full frame recording)
Work friendly with p ilot-OSD, no block on the important flying OSD information;
Separable design, 5 inch screen can be used as small monitor on radio controller or with tripod;
HD high brightness 5 inch LCD specially tuned for FPV racing;
Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module, with RaceRand;
Advanced auto-searching function and the working frequency show on screen;
Built-in 7.4V 1200mAh battery, each full charge offer 2 hours working time;
Wide range re-charge voltage 11-20V;
Accept 2S or 3S batteries as back-up power source, to prolong the working time;
Nice ergonomic design and fit different faces;
Super-wide visible angle up to 82 degree;
92% transparent lens adopted, no distort, no blur on the edge of screen;
Light weight 375g with 3.5 hr 1200mAh battery, RTF for any scale racing game;
5 Inch 800*480px HD high brightness LCD


TX06 AIO Camera Features

OSD configuration using FC Uart
Super small and lightweight
700TVL high picture quality,Low Power Consumption.
48CH channel with race band
Power by 1S lipo battery
Plug and play,designed for DIY
Super Mini 5.8GHz 48CH FPV Transmitter +700TVL FPV Camera+Brass dipole Antenna+OSD



Description :
Brand Name : EACHINE
Model : EV800D

Appearance
Dimension: 180*145*82mm
Weight: 362g without antenna
Belt : three-way adjustable belt


Specification
Build in DVR
R ecord up to 720*576px full frame rate video, no frame lost (C10 card required)
Re play in MENU
Require C10 card to r ecord full frame rate

Diversity
-90dB Super sensitiveness in 2pcs RX5808 PRO modules
Great performance when two types (Linear and Omni) antennas are used


Display
Screen size: 5.0 inch
Screen resolution: 800*480(No blur after enlarge by the lens)
Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV
Ratio : 16:9, 4:3
View Angle: 140/120 degree(Horizontal/Vertical)

Lens
3x boost of the video to acquire intense feel-in-there video;
92% transparent rate distort if light;



Battery
Built-in 7.4V/1200mAh battery;
Each battery circle offer around 2hr working time;
10-22V wide range recharging voltage range, typical recharging voltage is 12V
Charger : 12V,2A, DC 2.5mm
2S (7.4 V) /3S(11.1V) battery as back-up power t to have long working time.

Model : TX06 AIO Camera :
Transmitting power: 25mW

Frequency: 5.8G 48CH
Input voltage:3.3-5.5V (recommanded battery click here)
Current consumption:280mA(typical)
Camera resolution: 700TVL
Video Format: NTSC
Field of view : 120°viewing angle
Antenna dimensions: 35mm*4.2mm diameter
Antenna: Brass dipole Antenna
Frequency:5.8GHz 6 bands 48 channels,
with Race band:5474-5945MHZ
Size: 14*13.8mm(L*W)
Weight:2.8g




Frequencies (5.8GHz, with RaceBand)

CH CH 1CH 2CH 3CH 4CH 5CH 6CH 7CH 8
GROUP
A or FR15865 MHZ5845 MHZ5825 MHZ5805 MHZ5785 MHZ5765 MHZ5745 MHZ5725 MHZ
B or FR25733 MHZ5752 MHZ5771 MHZ5790 MHZ5809 MHZ5828 MHZ5847 MHZ5866 MHZ
C or FR35705 MHZ5685 MHZ5665 MHZ5645 MHZ5885 MHZ5905 MHZ5925 MHZ5945 MHZ
D or FR45740 MHZ5760 MHZ5780 MHZ5800 MHZ5820 MHZ5840 MHZ5860 MHZ5880 MHZ
R or FR55658 MHZ5695 MHZ5732 MHZ5769 MHZ5806 MHZ5843 MHZ5880 MHZ5917 MHZ



Package Included :
1 x EV800D 40CH 5.8G Diversity Goggles with DVR
1 x Clover Antenna
1 x Panel Antenna
1 x Battery Charger
1 x 3S to DC Power Cable
1 x User Manual
1 x Clean cloth
1 x Bag


1 x Eachine TX06 700TVL FOV 120 Degree 5.8Ghz 48CH Mini FPV Camera AIO Transmitter For RC Drone
1 x Molex 1.25mm to JST-DS 2.0mm 2P Power Cable
