Eachine TX02Pro with Smartaudio OSD AIO 5.8G 40CH 200mW VTX 700TVL 1/4 Cmos FPV Camera NTSC - 21.00 €

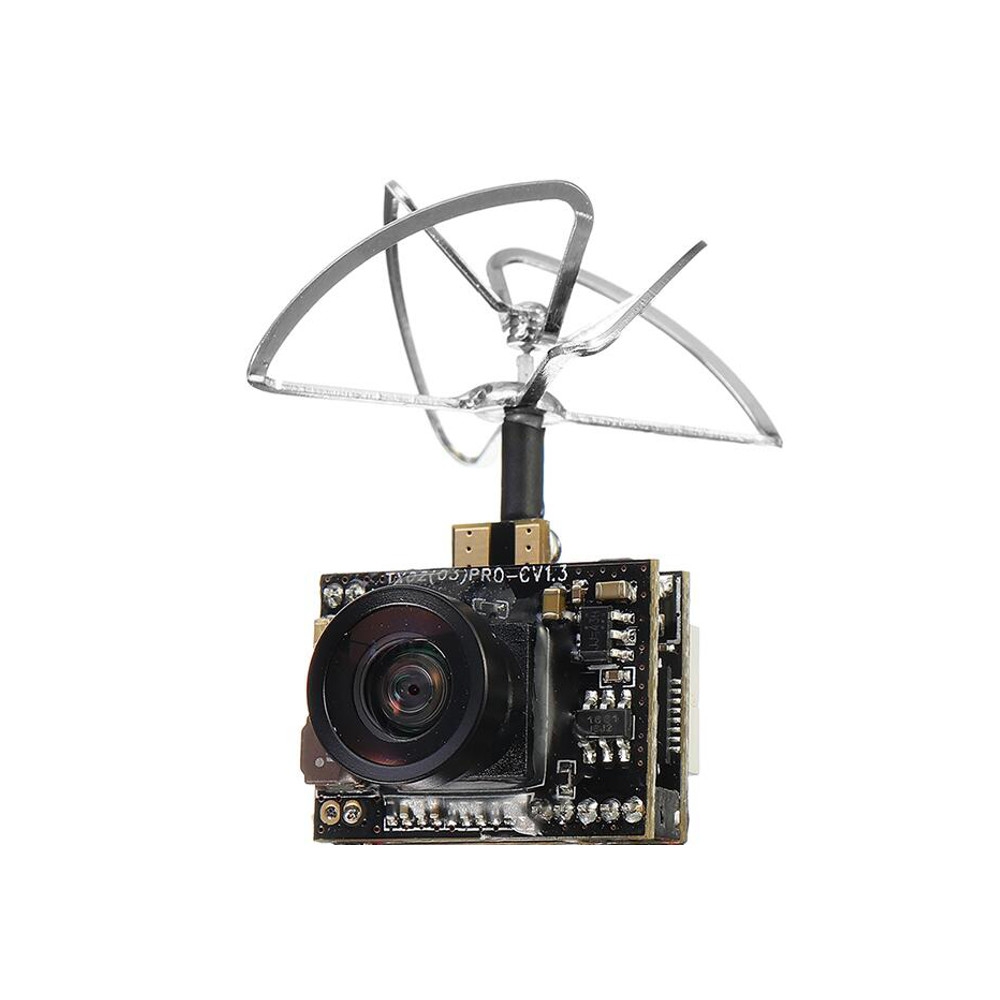

Eachine TX02Pro with Smartaudio OSD AIO 5.8G 40CH 200mW VTX 700TVL 1/4 Cmos FPV Camera NTSC
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Eachine TX02Pro with Smartaudio OSD AIO 5.8G 40CH 200mW VTX 700TVL 1/4 Cmos FPV Camera NTSC

Specification:
Brand name: Eachine
Item NO.: TX02Pro
Item Name: 4-IN-1 AIO FPV VTX Camera
Output power: 200mW
Input power: 3.3-5V
Current Consumption: [email protected] (type)
Camera Resolution: 700TVL
Video System: NTSC
Mini Illumination: 1 lux
Field of View: 120 degree viewing angle
Antenna: 4 lobe right hand circular polarized
Antenna Dimensions: 22x29mm
Frequency: 5.8GHz 5 bands 40 channel
Raceband: 5658-5917MHZ
Size: 18.7x13.5mm (L*W)
Weight: 5.8g

Feature:
- OSD configuration using FC Uart
- Super small and lightweight
- 700TVL high picture quality,Low Power Consumption.
- 48CH channel with race band
- Power by 1S lipo battery
- Plug and play,designed for DIY
- Super Mini 5.8GHz 48CH FPV Transmitter +700TVL FPV Camera+Brass dipole Antenna+OSD

Operation Instruction:
1.Three adjustable gears,on/off switch,CH,FR. Automatically cycle display three gears on LED after power on.
2.Short press button to adjust "CH",1-8 adjustable.
3.Press and hold button 3s,transfer to FR,A,b,E,F,r adjustable,then short press button to adjust FR.
4.Press and hold button 5s to adjust ON/OFF,"0"and"="adjustable,short press button to adjust,"0"stands for "OFF",and"="stand for"ON".

Notice: The TX02Pro has memory for settings,To change the settings,please repeat steps as above.

Package Included:
1 x TX02Pro AIO FPV Camera (with cable)
1 x Cable
1 x User Manual
