Eachine TX801 VTX + JJA 1200TVL Mini CAM 5.8G 72CH 0.01mW-600mW Switched FPV Mini Transmitter Camera Combo for RC Drone Aircraft - 22.00 €


Eachine TX801 VTX + JJA 1200TVL Mini CAM 5.8G 72CH 0.01mW-600mW Switched FPV Mini Transmitter Camera Combo for RC Drone Aircraft
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Both wire plugs of VTX and camera are TJC8 2.54mm, fully match, plug and play.

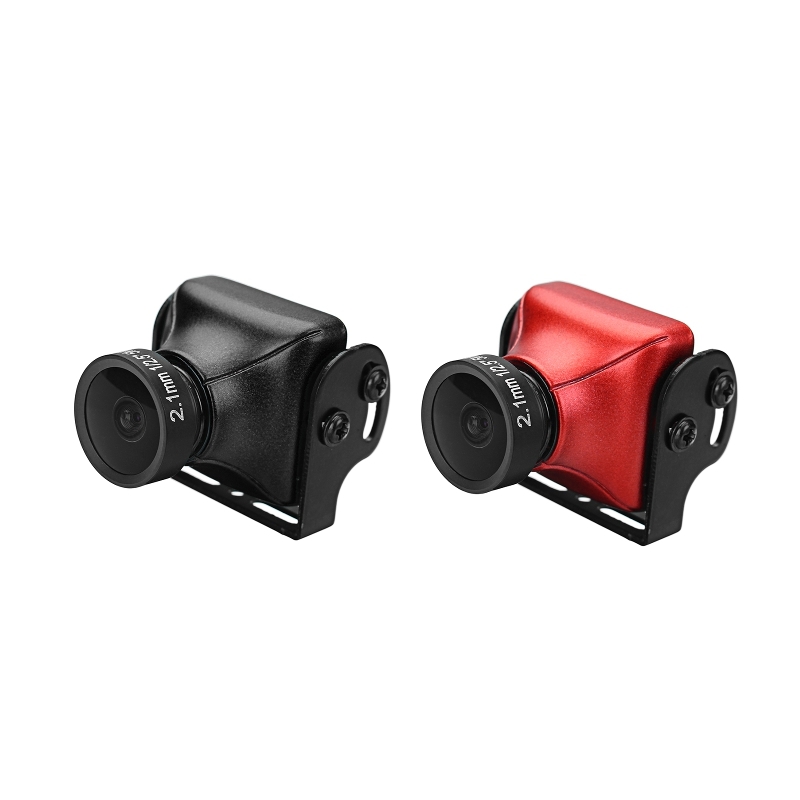

JJA-CM1200 1/3 CMOS 1200TVL Camera 2.1mm Lens PAL/NTSC Black/Red For RC Drone

Description (No OSD function)
Model JJA-CM1200 FPV cameras
Image Sensor 1/3CMOS SUPER HAD II
Horizotal Resoulution 1200TVL
Lens 2.1mm
Signal System PAL/NTSC
S/N Ratio >60Db(AGC OFF)
Electronic Shutter Speed PAL: 1/50-100.000, NTSC:1/60-100,000
Auto Gain Control(AGC) YES
Back light compensation(BLC) YES
Min lllumination 0.01Lux/1.2F
WDR D-WDR
DNR 2DNR
Day/Night Auto/Color/B*W
Power DC 4.7-15V
Net weight 16g
Dimensions 25mm*25mm


Package Included
1 x 1200tvl Camera
1 x Bracket
1 x Screw Pack
1 x AV Cable(JST-ZH 1.5mm 3P to TJC8 2.54mm )


Eachine TX801 5.8G 72CH 0.01MW/5MW/25MW/50MW/100MW/200MW/400MW/600MW Switchable AV VTX FPV Transmitter
Description :
Brand Name : Eachine
Item Name : TX801 Transmitter
Antenna Gain:3Dbi
Antenna Conenctor : RP-SMA
Frequency:5325-5945MHZ
Channel : 72CH
Transmitting Power: 0.01MW/5MW/25MW/50MW/100MW/200MW/400MW/600MW Switchable
Video Format:NTSC/PAL
Working Current: (MAX)7V-550mA
;12V-300mA
;24V-160mA"
Audio Bandwidth : 6.5MHZ
Video Bandwidth: 18MHZ
Audio Carrier : 1Vp-p(1KHZ)
AF Input Impedance : 10KΩ
Working Voltage : 7-24V
Output Voltage : 5V
Weight :7.3g
Size :28*20*8MM

Cable : JST-GH 1.25mm 5P to TJC8 2.54mm 3P
Blue : GND
Yellow : Video
Red : Output Voltage
Features :
8 power levels switchable: 0.01MW/5MW/25MW/50MW/100MW/200MW/400MW/600MW
72 channels, cover all 5.8G frequency.
With Microphone, support audio transmission
5V output, max working current 550mA
Multi-channel synchronization does not interfere with each other
Package Included :
1 x TX801 Transmitter
1 x Antenna
1 x Power AV Cable

Recommanded Parts:
Battery: Click Here
Receiver for Smartphone : 5.8Ghz 150CH Click Here
FPV Monitor : 5.8Ghz 40CH Monitor Click Here
FPV Goggles : 5.8Ghz 40CH Goggles Click Here
Notice : If you don't have any soldering tool or experience, there is a simple way for connection, that you can strip off wires' coating and twine them by tape.




,
,
,
,
,
,
,
