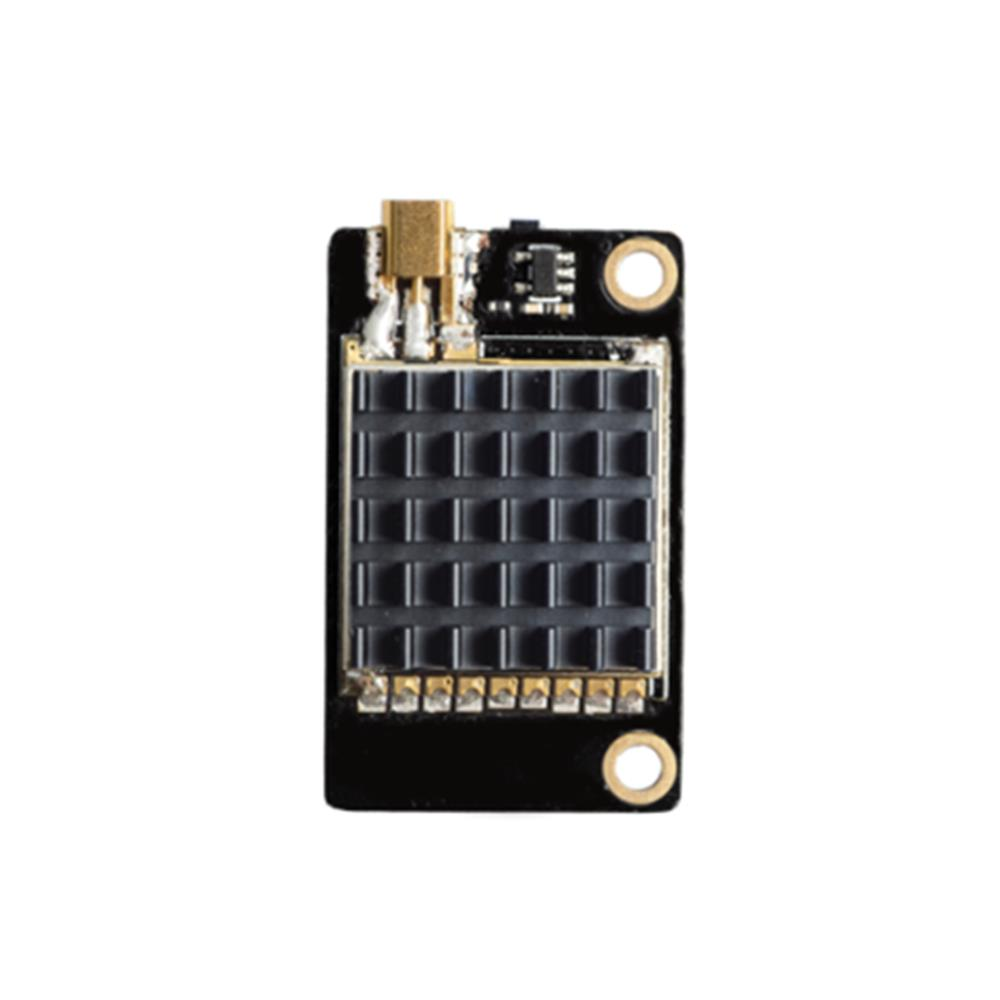

Eachine TX805S 5.8GHz 40CH 25/500/1000/1600mW AV FPV Transmitter VTX LED Display With Mic Heatsink Support OSD/Pitmode/Smart Audio for RC Drone - 19.00 €


Eachine TX805S 5.8GHz 40CH 25/500/1000/1600mW AV FPV Transmitter VTX LED Display With Mic Heatsink Support OSD/Pitmode/Smart Audio for RC Drone
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Click here to download the manual:tx805s.pdf

Specification:
Input voltage: 7V to 24V
5V camera supply: 220mA(MAX)----25mW@12V(Type)
5V camera supply: 470mA(MAX)----500mW@12V(Type)
5V camera supply: 550mA(MAX)----1000mW@12V(Type)
5V camera supply: 830mA(MAX)----1600mW@12V(Type)
Extra features: Smart audio
Power supply: 5V output for Camera
Output power: 25mW/500mW/1000mW/1600mW switchable
Antenna connector: MMCX
Cable connector: Solder pads
Dimensions: 36mm*22mm*5mm,30.5 stackable hole
Weight: 11.3g(excluding antenna)

Button control Channel select mode
Channel select:
Select channels by simple short presses.
Blue LED light on stands for CH1,short presses to change 8 channels sequentially.
For CH2/3/4/5/6/7/8,Blue LED flicker once,it won't light on.
Notice:Blue LED only light on for CH1
Band select:
Press button for 2S,Red LED will flash,then short presses to select 5 bands.
Power select:
Press button for 4S,Red LED will flash,then select power by simple short presses to select 25mW/500mW/1000mW sequentially,
For 500mW, Green LED flicker once,it won't light on;For 1000mW Blue LED flicker once,it won't light on .Press the button again ,
Red LED,Green LED and Blue LED lights together,Represents the highest power 1600mW.
Notice:Red LED only light on for 25mW.
Pit Mode(0.01mW)
While in Pit Mode you can change channels and set power levels , but none of these changes will take effect until you quit Pit Mode.
By default ,Pit Mode will send a very weak signal.

Two ways to exit pit mode:
Press button 12S until all 16 LED turned off and light on again to exit pit mode,or you can exit pit mode via Betaflight OSD.
Notice:The VTX has memory for settings,To change the settings ,please repeat steps as above.

Features:
-Support Smart audio
-25mW/500mW/1000mW/1600mW power switchable
-One button frequency and power setup
-OSD configuration using smart audio
-Wide input Voltage with 5V for camera
-40 channels with MIC
-Solid MMCX Antenna connection and MMCX Brass Dipole Antenna

Package included:
1 x TX805S- 5.8GHz 40CH AV Transmitter VTX
1 x pigtail
1 x Antenna
1 x Instructions
