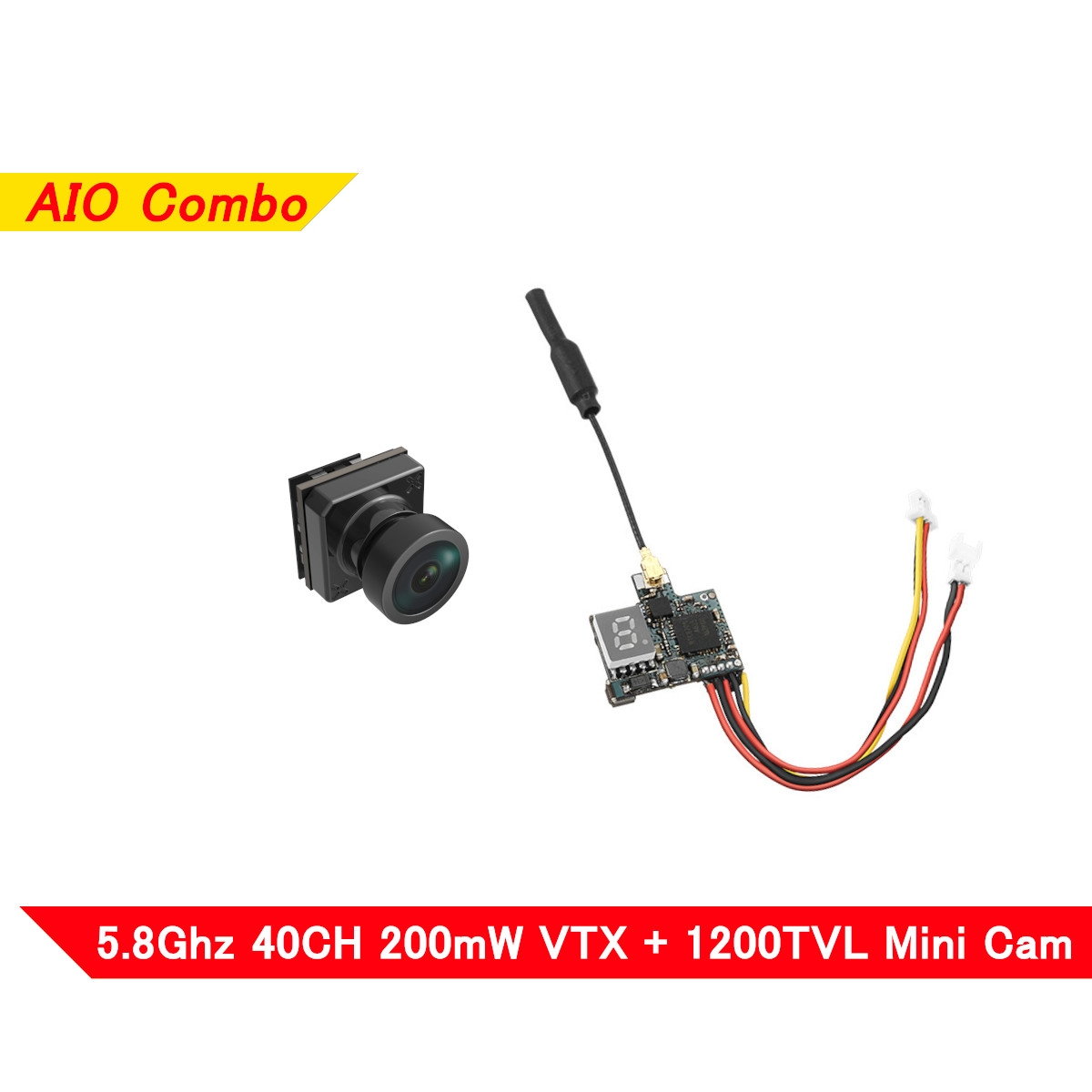

Eachine VTX02 + Foxeer Pico Razer Mini FPV Transmitter Camera Combo 5.8GHz 40CH 200mW VTX 1200TVL 12*12mm CMOS Mini CAM SET Support 3.2-5.5V for RC Racing Drone - 26.00 €


Eachine VTX02 + Foxeer Pico Razer Mini FPV Transmitter Camera Combo 5.8GHz 40CH 200mW VTX 1200TVL 12*12mm CMOS Mini CAM SET Support 3.2-5.5V for RC Racing Drone
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Eachine VTX02 + Foxeer Pico Razer Mini FPV Transmitter Camera Combo 5.8GHz 40CH 200mW VTX 1200TVL 12*12mm CMOS Mini CAM SET Support 3.2-5.5V for RC Racing Drone


Specification:
Brand name: Eachine
Item name: VTX02 Super Mini FPV Transmitter

Output power: 200mW
Input voltage: 3.2-5.5V
5V camera supply, 580mA (Max)
Video system: NTSC/PAL
Antenna dimensions: 55mm X 5mm diameter
Antenna: IPEX
Frequency: 5.8Ghz 5 bands 40 channels, with Raceband: 5658-5917MHz
Size: 20*14mm (L*W)
Weight: 2.8g

Operation:
Three adjustable gears, on/off switch, CH, FR automatically cycle display three gears on LED after power on.
Short press button to adjust "CH", 1-8 adjustable.
Press and hold button 2s, transfer to FR, A, B, E, F, R adjustable, then short press button to adjust FR.
Press and hold button 5s to adjust on/off, "0" and "=" adjustable, short press button to adjust, "0" stands for "off", and "=" stands for "on".

Item : Foxeer Camera

Sensor Type

1/3" CMOS Sensor
Lens1.8mm M7
Scale4:3/16:9 Optional
Tv SystemPAL/NTSC Optional
Resolution1200TVL
Shutter SpeedPAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
Video OutputCVBS Analog Signal
FOV

4:3 FOV-H:125° FOV-D: 160°

16:9 FOV-H:125° FOV-D: 145°

Shutter SpeedAuto
Minimum Illumination0.01Lux
White BalanceAuto
DNR3DNR
WDR90dB
Input Voltage3.8V~16V
Working Temperature-10°~50°C RH90% MAX
Working Humidity20~80%
Storage Temperature-20°~70°C
Dimension12*12mm
Cable Length65mm
Weight1.65g(Exclude cable)

Package Included:
1 X FPV Transmitter
1 X IPEX antenna

1 x Camera
1 x Wire Set
