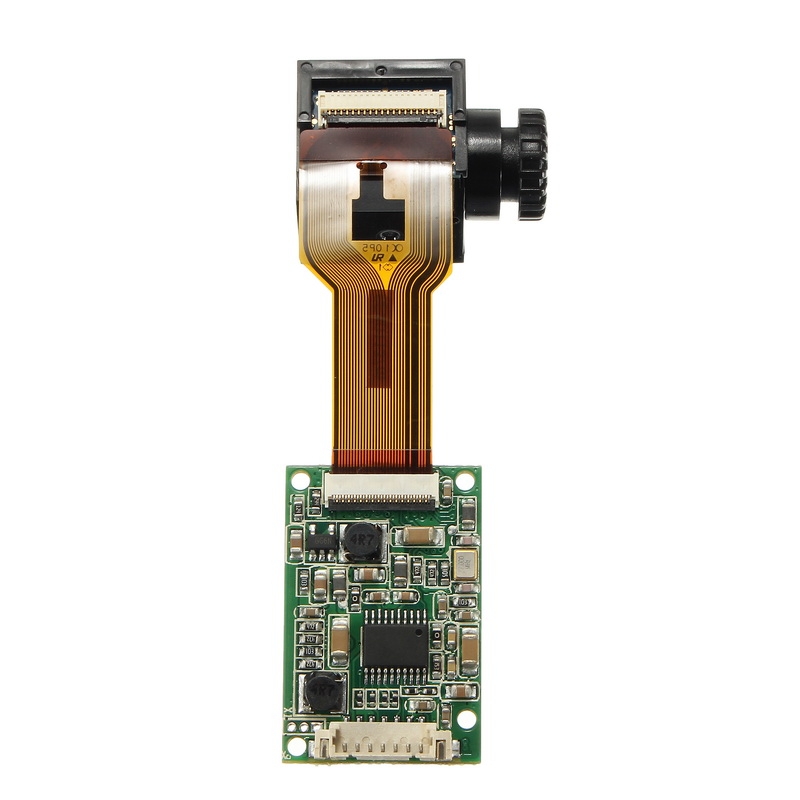

FLCOS 720*540 Colord Micro Displayer Monocular VR Video Goggles Mini Monitor for QAV250 FPV Racer - 149.99 €


FLCOS 720*540 Colord Micro Displayer Monocular VR Video Goggles Mini Monitor for QAV250 FPV Racer
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

FLCOS 720*540 Colord Micro Displayer Monocular VR Video Goggles Mini Monitor for QAV250 FPV Racer




Description :
Display Tech.: Ferroelectric Liquid Crystal(FLC) on reflective CMOS
Display Mode : Field sequential color
Display Format : 720(H) x 540(V) *2
Display Panel Active Area : 3.96 x 2.97mm *2
Input Grayscale : 256 levels
Color Depth : 4.2Million unique colors (YCrCb video interface)
Pixel Fill Factor : 88%
Display Pixel Pitch : 5.5um
Display Frame Rate : 60Hz/360Hz(NTSC), 50Hz/300Hz(PAL)
Data Clock Rate : 36MHz(Typical)
Maximum Brightness : 200cd/㎡ or more
Contast Ratio : 150:1(Typical)
Whte Point : (x,y)=(0.313,0.329) Typical
Digital Display Interface : YCbCr(4:2:2)-parallel (16 data,HD,VD,Clock); YCbCr(4:2:2)-serial(8 data,HD,VD,Clock)
Control Interface : Industry-standard two-wire bidirectional serial
Operating Supply Voltage : 1.8V(Core);3.3V(Analog,I/O);3.3V(Analog,LED);VIO_serial(Serial interface I/O)
Input Siginal Level : CMOS 1.8V-3.3V
Power Consumption : 180mW (Reference)
Size : 20.3x17.8x13.3mm
Weight : TBD
Operating Temp. : -10℃~70℃(at Surface of Panel)
Storage Temp. : -30℃~83℃
Package Included:
1 x Video Glass
1 x Video Wire
