FrSky R9M 2019 900MHz Long Range Transmitter Module & R9 Mini Receiver with R9 Mini T Antenna Combo - 80.00 €


FrSky R9M 2019 900MHz Long Range Transmitter Module & R9 Mini Receiver with R9 Mini T Antenna Combo
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

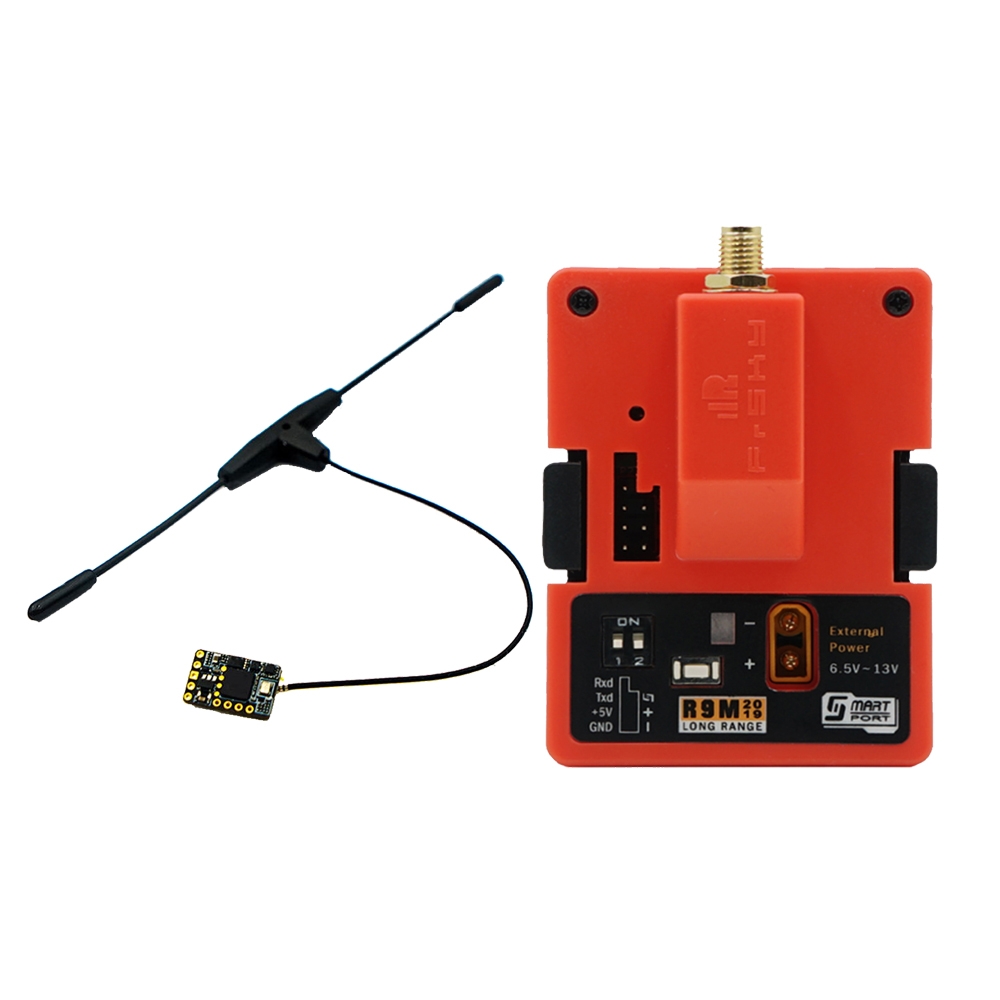

FrSky R9M 2019 900MHz Long Range Transmitter Module & R9 Mini Receiver with R9 Mini T Antenna Combo

Specification (Transmitter Module):
Brand: FrSky
Item Name: R9M 2019 900MHz Transmitter Module

Vin Voltage Range: 6V-13V
External Power Supply: 6V~13V
Telemetry Interface: Smart Port
Upgrade Interface: Smart Port
Modulations: PXX or CPPM (auto-detected)
Compatibility : R9 Series Receivers

Feature :

-900MHz/868MHz Working Mode

-Long Range, Low Latency and High Precision RC System

-4 Optional RF Power (Non-EU Version)

-Telemetry Mode (25mW)/Non-telemetry Mode (200mW / 500mW) (EU Version)

-RF Power (Flex): 10mW/ 100mW/ 500mW/ 1W (telemetry supported for all levels)

-Smart Port Enabled and Support Telemetry Data Transmission

Specification (Receiver):

The latest 900MHz receiver from FrSky the R9 Mini. This receiver brings forth all the features of previous R9 receivers in an extremely compact and lightweight design. Super low latency, and it supports the redundancy function to ensure your aircrafts safety. Ipex antenna connector makes it easy and quick to replace damaged antennas.

Dimension: 16*10mm (L*W)
Weight: 1.1g (including antenna)
Numbers of channel:
Non-EU Version: 4/16CH (Telemetry)
EU Version: 4/8CH (Telemetry) / 4/16CH (Telemetry) /4/16CH (No Telemetry)
Operating Voltage Range: DC 3.5V – 10V
Operating Range: Up to 10km or above

Feature :

-915MHz (Non-EU Version)/ 868MHz(EU Version)
-Mini size and superlight weight
-S.Port enabled and support telemetry data transmission
(Support F.Port, download firmware to support the function)
-Supports redundancy function
-Low latency and high precision
-With RSSI output in SBUS
-Detachable Ipex connector antenna


Package Included:
1 x FrSky Transmitter Module
1 x FrSky R9 Mini Receiver
