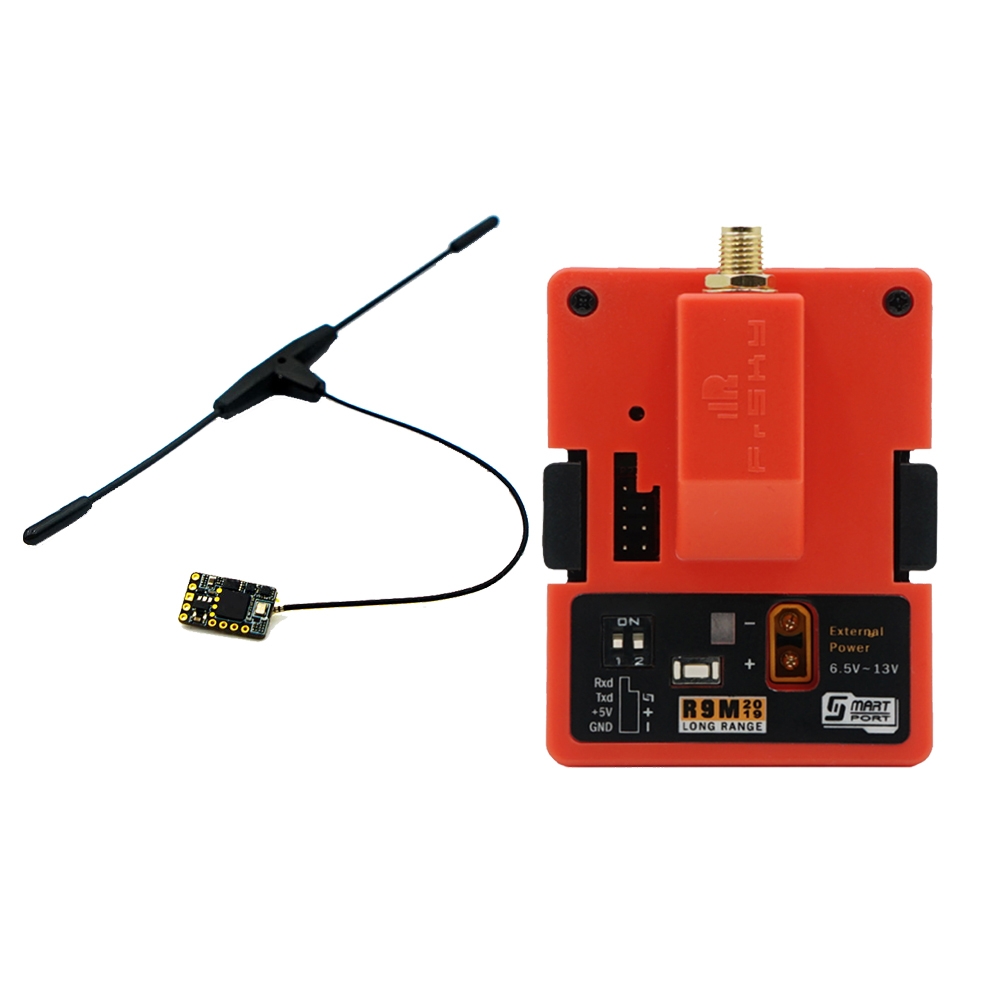

FrSky R9M 2019 900MHz Long Range Transmitter Module & R9MM Receiver w/ T Antenna Combo
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

FrSky R9M 2019 900MHz Long Range Transmitter Module & R9MM Receiver w/ T Antenna Combo

Specification (Transmitter Module):
Brand: FrSky
Item Name: R9M 2019 900MHz Transmitter Module

Vin Voltage Range: 6V-13V
External Power Supply: 6V~13V
Telemetry Interface: Smart Port
Upgrade Interface: Smart Port
Modulations: PXX or CPPM (auto-detected)
Compatibility : R9 Series Receivers

Feature:

-900MHz/868MHz Working Mode

-Long Range, Low Latency and High Precision RC System

-4 Optional RF Power (Non-EU Version)

-Telemetry Mode (25mW)/Non-telemetry Mode (200mW / 500mW) (EU Version)

-RF Power (Flex): 10mW/ 100mW/ 500mW/ 1W (telemetry supported for all levels)

-Smart Port Enabled and Support Telemetry Data Transmission

Specification (Receiver):

The FrSky R9 MM is the latest 900MHz mini receiver in the long-range series. It carries on most of the features from the previous R9 Mini receiver, like it’s super low latency, high precision performance in an extremely compact design. A new feature incorporating an inverted S.Port output makes it compatible with more devices.

Dimension: 16*10*2.8mm (L×W×H)
Weight: 0.7g (without antenna)
Number of Channels:
Non-EU Version: 4/16CH (Telemetry)
EU Version: 4/8CH (Telemetry) / 4/16CH (Telemetry) / 4/16CH (No Telemetry)
Operating Voltage Range: DC3.5V-10V
Operating Current: 100mA@5V
Operating Range: Up to 10km or above
Compatibility: R9M and R9M Lite


Feature:

-915MHz (Non-EU Version)/ 868MHz(EU Version)
-Mini size and superlight weight
-Inverted S.Port enabled
-S.Port enabled and support telemetry data transmission
(Support F.Port, download firmware to support the function)
-Low latency and high precision
-With RSSI output in SBUS
-Battery voltage detection supported
-Detachable Ipex connector antenna

Package Included:
1 x R9M 2019 Transmitter Module
1 x R9 MM Receiver
