FrSky S6R 2.4G 6CH ACCST Receiver With 3-Axis Stabilization And Smart Port Telemetry for RC Airplane - 42.00 €


FrSky S6R 2.4G 6CH ACCST Receiver With 3-Axis Stabilization And Smart Port Telemetry for RC Airplane
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

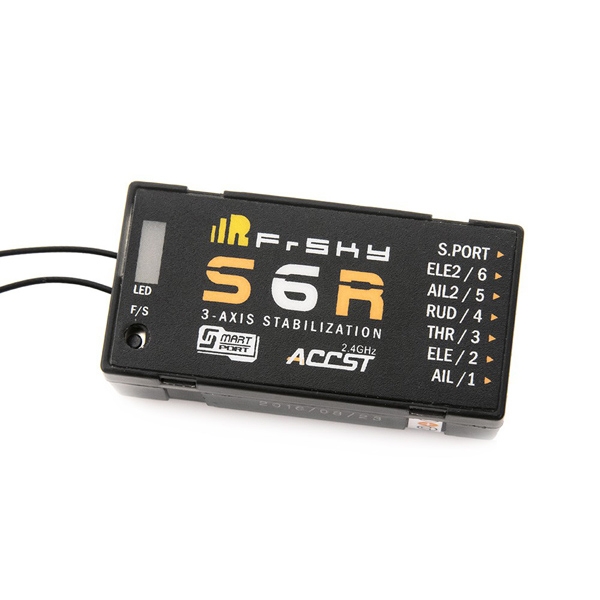

FrSky S6R 2.4G 6CH ACCST Receiver With 3-Axis Stabilization And Smart Port Telemetry

FrSky has combined the popular FrSky receiver technology with a super stable 3-axis system for fixed wing aircraft. The S6R is based on the STM32 platform, with both receiver and flight control functions. The S6R includes a three-axis gyroscope and three-axis accelerometer sensor module, with settings that are programmable via FrSky radios or the PC configuration tool (with FrSky STK). Besides six-channel receiver function, the S6R also has stability augmentation, automatic level, crane, sideward flight, and shutdown functions of conventional airfoils. Flying wing and V-tail models only support stability augmentation, automatic level and shutdown functions.

Description:
Brand Name: FrSky
Item Name: S6R 2.4G 6CH ACCST Receiver

Compatibility:
FrSky Taranis X9D Plus/X9E/Horus X12S/XJT in D16 mode
S6R-EU only works with FrSky Taranis X9D Plus-EU/X9E-EU/Horus X12S-EU/XJT-EU in D16 mode
Model: 6CH receiver with buil-in 3-axis gyro and 3-axis acceleration
Dimension: 47.42*23.84*14.7mm(L*W*H)
Weight: 12.1g
Operating Range: full range
Operating Voltage Range: 4.0~10V
Operating Current: 100mA@5V
Number of Channels: 6CH (1~6CH from conventional channel outputs)
Measurement Range: ±4g

Features:
* Built-in 3-axis gyro and 3-axis accelerometer sensor module
* Has RSSI PWM output (0~3.3V) onboard
* Built-in battery voltage sensor
* Smart Port enabled
* Fail safe
* Small and lightweight (only 12.1g)
* Wide voltage range (4~10V)
* Firmware upgradeable

FrSky S6R 2.4G 6CH ACCST Receiver Manual, Click Here

Package Included:
1X FrSky S6R 2.4G 6CH ACCST Receiver

,
,
,
,
,
