Geelang LIGO78X for GOPRO 2 Inch 78mm 4S Cinewhoop FPV Racing Drone PNP/BNF w/ Naked Camera Mount F4 FC 13A ESC GL1204 5000KV Motor - 135.00 €


Geelang LIGO78X for GOPRO 2 Inch 78mm 4S Cinewhoop FPV Racing Drone PNP/BNF w/ Naked Camera Mount F4 FC 13A ESC GL1204 5000KV Motor
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

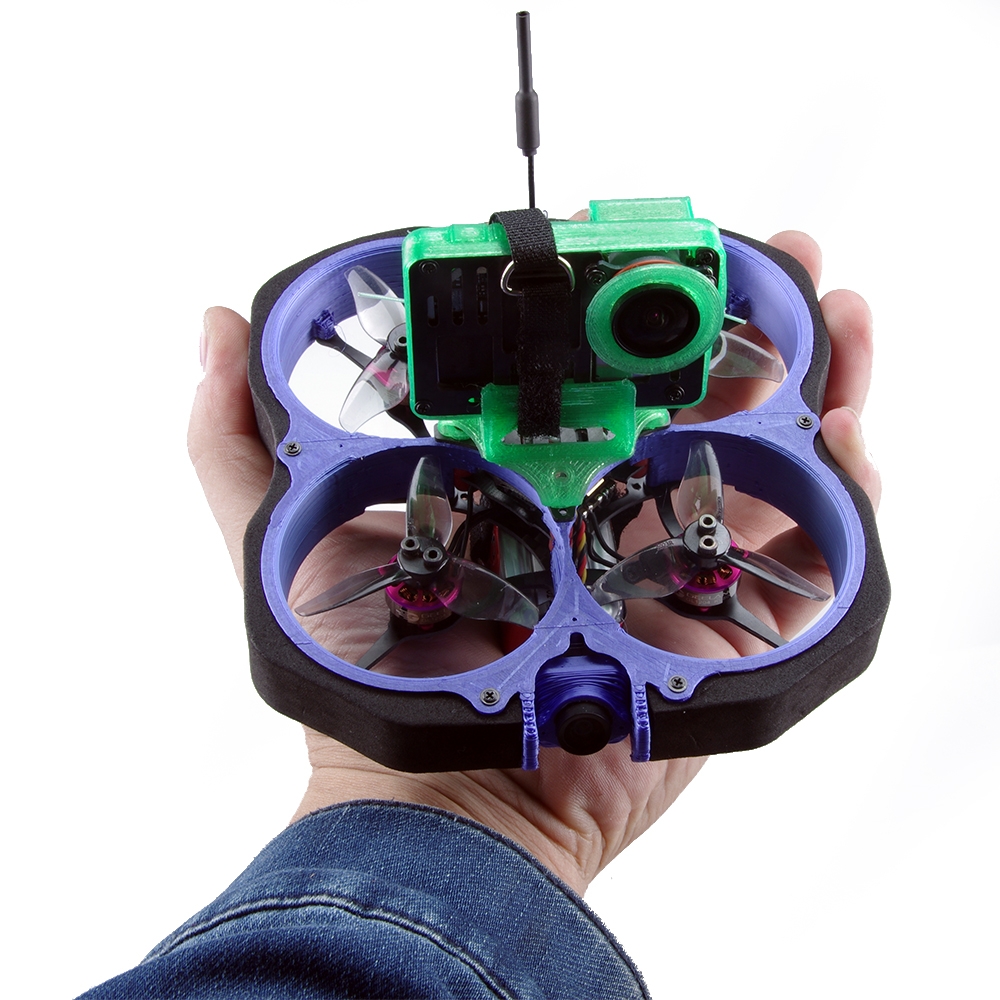

Note: The camera for Gopro shown in the photo is not included. Only included camera mount .


Specification:

Brand Name: GEELANG

Mode Name: LIGO78X GOPRO

Item Name: 4S 78mm Ducted Cinewhoop Drone BNF

Wheelbase: 78mm

Size: 119x132x23mm(Camera Mount Not Included)

Weight: 90g (Camera Mount Not Included)

Weight: 166g (With 4s 450 Battery, for GOPRO 6 Naked Camera )

Recommended Battery: 4s 450, 4S 550mAh Lithium Battery

FPV:CADDX ANT Lite


Flight controller

Flight controller:SI-F4FC V1 Three-in-one tower Version:MATEKF411

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Store:Onboard black box

Board size:21 * 21MM

Power supply: 2-4S battery input (DC 7-17V)

Built-in 12A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)

Built-in Current meter Max 70A

Current meter scale set to 480

Built-in 5V 2A BEC

Built-in voltage detection

Onboard 4in1 ESC

Onboard 4in1 ESC MCU upgraded to EFM8BB21

Power supply: 2-4S LiPo/LiPo HV (7v/17v)

Current: 13A continuous peak 15A (5 seconds)

Support BLHeliSuite programmable

Factory firmware: G_H_30_REV16_77.HEX

Default protocol: DSHOT600

Motor

Motor Mode:GL1204 KV5000

Stator specifications:D12 * H4 0.2mm for Kawasaki

Configu-ration:9N12P

Stator Diamter:12mm

Stator Length:4mm

Shaft Diameter:Φ1.5mm

Motor Dimension(Dia.*Len):Φ16.0mm*15.8mm

Magent specifications: N52H

Shift specifications: 2mm High strength steel

Bearing Specifications: d2*D5*H2.5 MR52zz Japan ISC Custom made

WindingSpecifications:180℃ Class Multipleoxygen-freecopper

Weight(g):5.8g

No.of Cells(Lipo):3S-4S

5.8G VTX

Power switching: third gear(25MW 、 100MW 、200MW)

Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Raceband

Smartaudio ready(Frsky EU-LBT and DSMX version not compatible)
Weight: 2.0g

Camera

Model: Ant lite

Image Sensor: 1/3" CMOS Sensor

Horizontal Resolution : 1200 TVL

TV System: NTSC and PALswitchable

MENU: Support

IMAGE: 4:3

Synchronization: Internal

Electronic Shutter

PAL: 1/50~100,000; NTSC: 1/60~100,000

S/N Ratio: >52dB (AGC OFF)

Video Output: CVBS

Lens: 1.8mm / F2.5

FOV : 165°

Min. Illumination: 0.001Lux

Auto Gain Control: YES

BLC: YES

WDR : Global WDR DNR

Propeller

Gemfan D51 (2020-4) Cinewhoop props

Material: PC

Weight: 0.91g

Pitch: 2 inches

Prop diameter: 50.3 mm

Center thickness: 4.5mm

Center hole diameter: 1.5mm 3 holes

Receiver Version (Optional)

Frsky XM+ Non-EU

SBUS receiver
Frsky D8/D16 switchable
Compatible Non EU transmitter both D8 and D16 mode
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Operating Voltage Range: 3.7~10V
Operating Current: 30mA @5V
Operating Range: Full range
With RSSI output on board: Analog 0~3.3V
Firmware upgrade-able, can be upgrade to EU with RSSI


Frsky AC900

Three-in-one receiver
SBUS receiver
Frsky D16 for futaba s-fhss switchable
Compatible Non EU transmitter both D16 mode
Channels: 8ch or 16ch
Failsafe support

No ground interference (Transmitter and receiver 1 m from the ground): 300m


Flysky AFHDS-2A

IBUS receiver
Protocol: AFHDS-2A
Channels: 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Failsafe support

TBS NANO

CRSF Protocol,Official TBS transmitter compatible
Protocol: CRSF
Channels: 8ch Failsafe support
Support receiver hardware rssi function

No ground interference ( Transmitter and receiver 1 m from the ground): 500m


DSMX/DSM2

Seria IBUS Receiver

Protocol: DSM2/DSMX Compatible

Channels: 6-9 (Depend On Your Radio)

No Ground Interference (Transmitter and Receiver 1 M from the ground): 300M


Battery Recommended

Species : lipo、lipoHV

Capacity:450-550mah
Voltage:7.8-14.8v
Continuous Discharge Rate: 60C
Instantaneous discharge rate: 80C
Connector: xt30


Features:

- Adopt SIF4 1.0 flytower flight controller to support 2-4s lithium battery power supply, independent four-in-one 13a ESC. The integrated Betaflight OSD function keeps abreast of the signal of the flight voltage receiver and can observe the status in real time while flying. With 16m chip black box, it is more convenient to adjust the machine for analysis.

- A more compact design is adopted for the first time, with a wheelbase of 78mm. However, passing long-term flight tests will not affect flight efficiency at all. The FPV end adopts CADDX ANT lite camera, the image quality is clear. The complex environment of flying indoors has better observation and controllability.

- The 4s power supply and 2-inch ducted four-blade propeller have been tested and matched for a long time and have good operability and durability. It is recommended to use 4s 450mah battery, if you need more residence time, you can add 4s550mah battery. Through continuous improvement, the problem of low efficiency of the 2-inch air duct machine was finally solved. Indoor small cross aerial photography becomes a reality. In order to better protect the outer ring, EVA sponge material is used to improve safety and reduce wind resistance. Through some modeling optimizations, the performance is very good.

- Independent use of multiple versions of the receiver, electronic control is more stable. The flight control adopts the newer version of Betaflight 4.2, and the ESC adopts the 16.77 version. Both the two-way DSHOT mode and the gyroscope RPM filter are turned on to make the flight control more stable.

- Using 1204kv5000 motor and 2020 ducted four-blade propeller 3-4s power supply, the efficiency ratio is super high. Flight control stability

- The whole machine is controlled at 90 grams, which solves the weight problem of traditional ducting machines and is flexible in control.

- Package includes gopro6/7 bare metal cover and camera mount, users do not need to purchase separately

- Compared with 3-inch and 2.5-inch air duct machines, the air duct is smaller and the flight efficiency is not affected. By installing the lightweight GOPRO bare metal, it is very suitable for professional video photographers.


Package Included:
1 x 78mm 3D Printing Combined Frame
1 x 3D Printed for GOPRO 67 Naked Camera Caset

Option1: SIF4 1.0 FC external Frsky NON-EU xm+ Receiver

Option2: SIF4 1.0 FC external DSMX receiver

Option3: SIF4 1.0 FC external Frsky AC900 Receiver(Multi-mode receiver)

Option4: SIF4 1.0 FC external TBS NANO Receiver

Option5: SIF4 1.0 FC external FLYSKY Receiver

Option6: SIF4 1.0 FC PNP NO RX Receiver

4 x GL1204 5000KV Motor
1 x 2020 Propeller(4cw+4ccw)

1 x 5.8G VTX5840

1 x RGB LED
1 x GL950 Camera
1 x Screwdriver Removal Tool
1 x Battery Magic Strap
1 x USB 90°Adapter Plug

1 x Caddx Ant Lite

1 x 4s 450mAh Lihv Battery
