HGLRC Batman220 220mm Airbus F4 OSD FPV Racing Drone w/ 60A BL_32 ESC Frsky XM+ RX BNF - 310.00 €

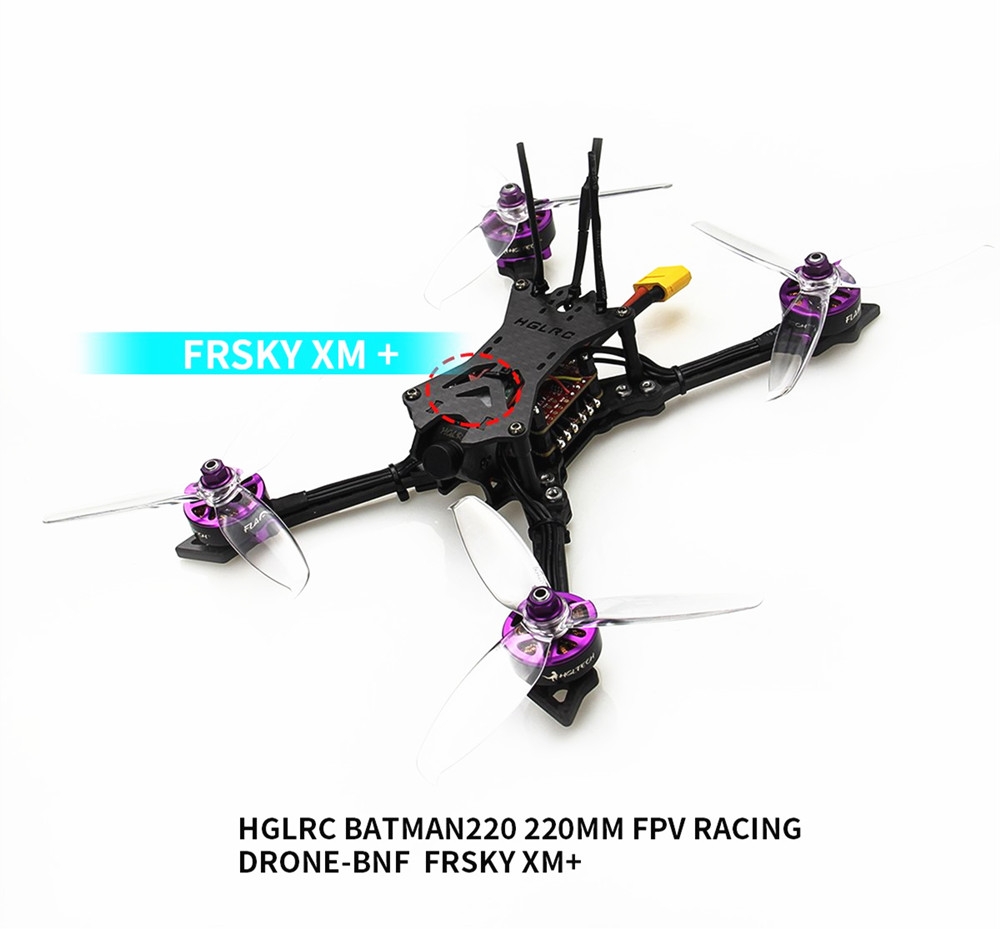

HGLRC Batman220 220mm Airbus F4 OSD FPV Racing Drone w/ 60A BL_32 ESC Frsky XM+ RX BNF
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

HGLRC Batman220 220mm Airbus F4 OSD FPV Racing Drone w/ 60A BL_32 ESC Frsky XM+ RX BNF

Specification:
Brand Name: HGLRC
Model: Batman220
Item Name: 220mm F4 5.8G FPV Racer
Wheelbase: 220mm
Arm Plate Thickness: 5mm
Bottom Plate Thickness: 2mm
Material: Carbon Fiber
Drone Version: BNF ( With Frsky XM+ Receiver & Without Battery)
Net Weight: about 306.3g

Flight Controller
HGLRC F460 Flytower Spare Part FC
Item Name: AIRBUS F4 OSD FC (D-Shot Version)

MPU: MPU6000-SPI
CPU: STM32F405RGT6, dual 8K
Black Box: Flash 16M
Input Voltage: 2-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 36x36mm
Mounting Hole: 30.5x30.5 ( M3)
Weight: 8.3g
Support SBUS/PPM/DSMX receiver
Brushless ESC
HGLRC F460 Flytower Spare Part ESC
Item Name: 60A BLHeli_32 3-6S 4 In 1 ESC

Input Voltage: 3-6S Lipo battery
Con. Current: 60A-4S / 50A-5S / 40A-6S
Peak Current: 70A
BEC Ouput: NO
Firmware: 32bit ESC with BLHELI_32 firmware
Size: 36x36mm (main board )
40x48mm ( including pad)
Mounting Hole: 30.5x30.5mm, M3
Weight: 12.9g
CPU: STM32F051
MOS Tube: TOP QUALITY MOSFET
Protocol: DSHOT1200/600/300/150/Oneshot125/42 , MultiShotDamped
FPV Transmitter
Item Name: HGLRC GTX585 5.8G 48CH PIT/25/100/200/400/600mW VTX
Model: GTX585
Output power: PIT/ 25/ 100 /200/ 400/ 600mW Switchable
Control mode:BFOSD control(RX) button
BAT: 7-26V
BEC: 5V-1A
240mA----400mW
Video system: NTSC/PAL
Antenna: MMCX
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
Size: 20x38mm(L*W)
Mounting Hole: 30.5x30.5mm
Weight: 6.8g
Brushless Motor
Item Name: HGLRC HF2306 2450KV Motor
KV: 2450KV
Stator Diameter: 23mm
Stator Thickness: 6mm
No.of Stator Arms: 12S
No.of Rotor poles:14P
No-load Current(A/10V):1.6A
Motor Resistance:49mΩ
Max Continuous Current:41.4A
Max Continuous Power:660W
Weight:32g
Rotor Diameter:28.72mm
Shaft Diameter:5mm
Body Length:16.1mm
Overall shaft Length:29.7mm
No.of Cells(Lipo):4S~5S
Wire type:20AWG 110mm
FPV Camera

Model: HGLRC XJB-ELF 600TVL 1/3 CCD Camera
Image Sensor: 1/3 SONY Super HAD II CCD
Horizontal Resolution: 600TVL
Lens: 2.3mm Lens
FOV: 120 degree(2.3mm)
Signal System: PAL
S/N Ratio: >60dB(AGC OFF)
Electronic Shutter Speed: PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000
AutoGain Control(AGC): YES
Back light compensation(BLC): YES
Min.illumination: 0.01Lux/1.2F
WDR: D-WDR
DNR: 2DNR
Day/Night: Color / Auto / B&W
Power: DC 5 to 36V
Net weight: 5.2g
Dimensions: 19mm * 19mm * 19mm
Propeller
Item Name: HGLRC 5042 5 Inch 3-Blade Propeller
Color: Clear White
Quantity: 3 CW & 3 CCW
Receiver
Item Name: Frsky XM+ Receiver
CH: Up to 16CH from SBUS (1-15ch for PWM,16ch RSSI for FC)
Operating Voltage Range: 3.7~10V
Operating Current: 30mA @5V
Operating Range: Full range
With RSSI output on board: Analog 0~3.3V
Firmware Upgradeable
Version: International Version
Compatibility: FrSky D16 mode
Dimension: 21.5*12*3.5mm(L x W x H)
Weight: 1.6g

Package Included:
1x HGLRC Batman220 F4 FPV Drone ( BNF Version)
1x Battery Strap
1x HGLRC Pagoda 5.8G 5dBi RHCP Antenna
