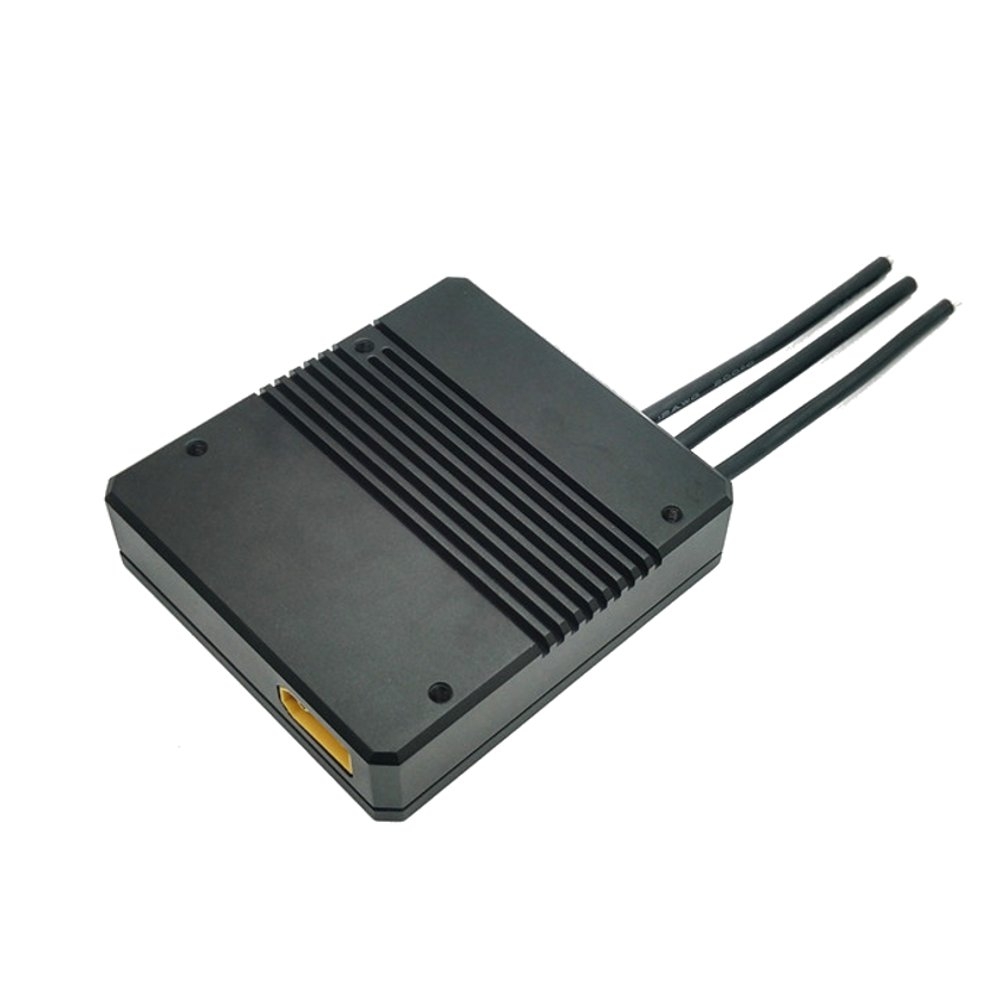

HGLRC-Flipsky FSESC6.6 60A ESC Based Upon VESC® 6 Aluminum Case for Electric Skateboard Rc Car - 191.00 €


HGLRC-Flipsky FSESC6.6 60A ESC Based Upon VESC® 6 Aluminum Case for Electric Skateboard Rc Car
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Description:
FSESC6.6 with firmware VESC_default_no_hw_limits version, compatible with Benjamin VESC TOOL, can be used for models, multi-axis aircraft, electric vehicles, electric skateboards, golf carts, smart cars, robots, and simple industrial position control.
Item Brand:HGLRC-FLIPSKY
Item name: FSESC6.6 60A ESC
With aluminum box packaging:
Net weight: 380g
Gross weight:550g,with the aluminium case;
Aluminum box size:100mm*92mm*22.5mm
Packaging size:200mm*140mm*40mm
For more information,you can click here
If you want the FSESC6.6+Aluminum Case+Button,go to here

With Heat sink packaging:
Net weight:125g
Packaging weight:300g
Packaging size:200mm*140mm*40mm
Spec
- Hardware: V 6.6
- Firmware: VESC_default_no_hw_limits
- Voltage: 8V - 60V (Safe for 3S to 12S LiPo)
- Voltage spikes may not exceed 60V
- Current: Continuous 60A, Burst 150A. Values depend on the temperature and air circulation around the device
- 5V 1.5A output for external electronics
- 3.3V 1A output for external electronics
- Modes: DC, BLDC, FOC (sinusoidal)
- Supported sensors: ABI, HALL, AS5047
- include Anti-spark switch
- include Waterproof aluminum case

Features
- Measure current and voltage of all phases
- Regenerative braking
- Traction control (single and double settings)
- Sensor or sensorless operation + hybrid mode
- Configurable RPM, Current, Voltage and Power Limits
- Input source: PPM, simulation, NRF Nyko Kama Nunchuck
- Communication ports: USB, CAN, UART, NRF, Bluetooth
- Throttle curves and ramps for all input sources
- Separate acceleration and brake throttle curves
- Seamless four-quadrant operation
- Motor speed, ampere hours, watt hour count
- Instant data analysis and reading via communication port
- Adjustable different protections:
- Low input voltage
- High input voltage
- High motor current
- High input current
- High regenerative braking current (separate limit of motor and inpu
- High speed (separate limit in each direction).
- Over temperature (MOSFET and motor)
Package included:
1X HGLRC-Flipsky Rc Car Parts
1X USB micro Flash Charge VOCC Cable
1X Mini Micro JST 2.0 PH 3-Pin Connector plug with Wires Cables
1X Manual
