Hobbywing XRotor 2205 1800KV 2600KV Brushless Motor CW/CCW for FPV Racer Drone QAV250 - 11.49 €


Hobbywing XRotor 2205 1800KV 2600KV Brushless Motor CW/CCW for FPV Racer Drone QAV250
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Hobbywing XRotor 2205 1800KV 2600KV Brushless Motor CW/CCW for FPV Racer Drone QAV250

Notice: The "Clockwise/counter-clockwise" on our page for selection represent the motor screw thread.
If the screw thread is "CW thread" , the motor will spin in CCW counter-clockwise direction; if the screw thread is"CCW", the motor will spin in CW clockwise direction.







Description:
Brand Name: Hobbywing
Item Name: XRotor 2205 Motor

Size:
Stator Outer Diameter: 22mm
Stator Thickness: 5mm
Stator Number 12
Stator Poles: 14
Weight: 28.4g(1800KV), 18.6g(2600KV)
Rotor Diameter: 28.1mm
Shaft Diameter: 5mm
Motor Length: 17.1mm
Length with Motor&Shalf: 31.1mm
Specification (XRotor 2205 1800KV):
KV: 1800KV
Unload Current: 0.7A
Resistance:0.102Ω
Max. Continuous Power: 625W
Max. Continuous Current: 25A/15s
Max. LiPo : 6S LiPo
Recommanded ESC: 35A/3-6S
Recommanded Prop: 5040 3-blade Propeller

Specification (XRotor 2205 2600KV):
KV: 2600KV
Unload Current: 1.6A
Resistance:0.058Ω
Max. Continuous Power: 420W
Max. Continuous Current: 25A/15s
Max. LiPo : 4S LiPo
Recommanded ESC: 35A/3-4S
Recommanded Prop: 5040 3-blade Propeller/5045 3-blade propeller

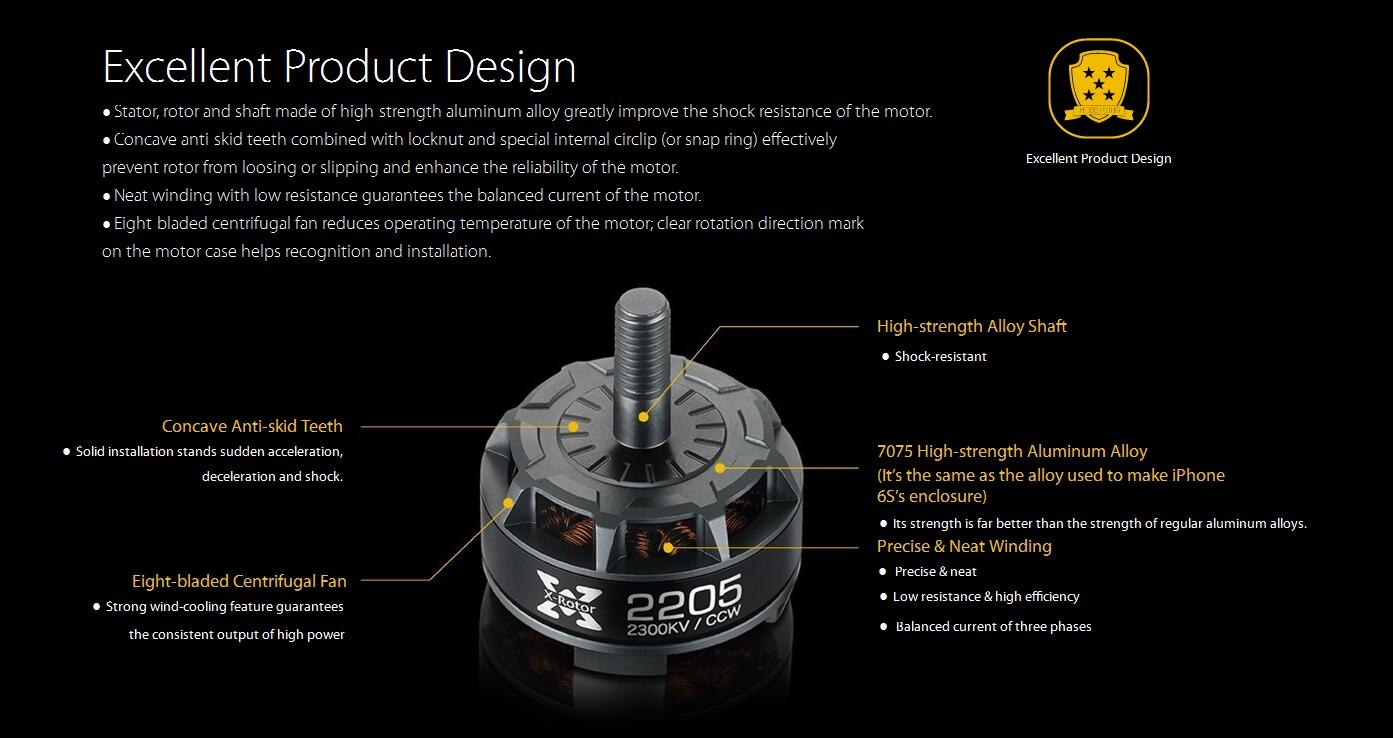

Features:
Adapt the high strength aluminum alloy material on stator, rotor and shalf.
Concavity Antiskid Screw with Locknut and surrounding snap spring, to avoid slipping or loosing, enhanced the reliability
Use Low Internal Resistance Enameled Wires,uncluttered layout, make it more balance.
8 Leaf Centrifugal Fan, dramatically reduce the working temperatures
Identify with motor Spinning Direction, easy to install
Package Included:
1 x Motor CW/CCW
