Holybro Kakute F4 AIO Flight Controller STM32 F405 MCU Integrated PDB OSD - 46.00 €

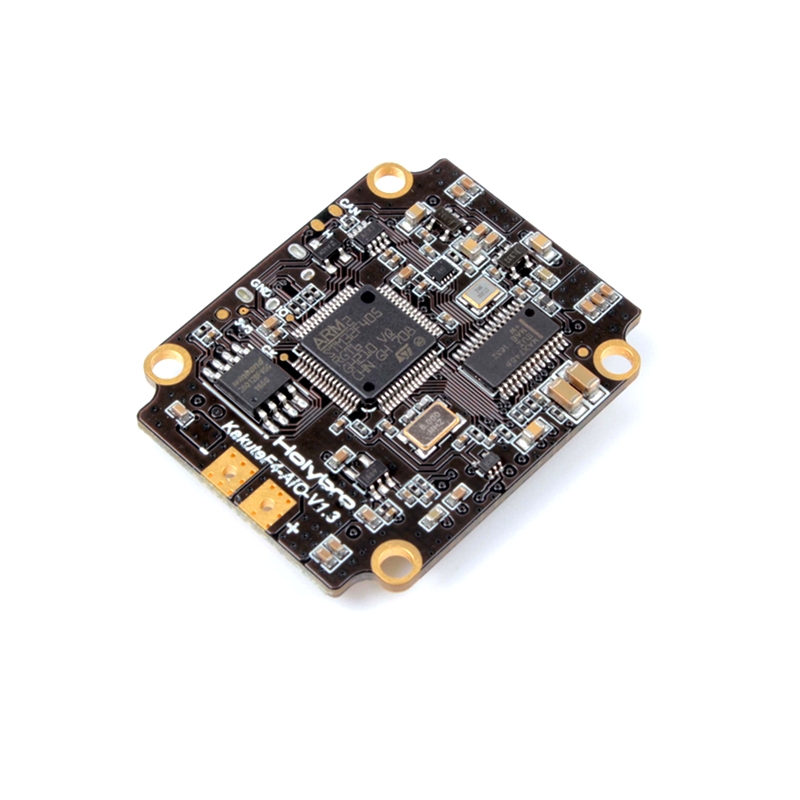

Holybro Kakute F4 AIO Flight Controller STM32 F405 MCU Integrated PDB OSD
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Holybro Kakute F4 AIO Flight Controller STM32 F405 MCU Integrated PDB OSD












The Holybro Kakute F4 All-In-One flight controller makes it easy to build your multirotor. It integrates flight controller (FC), power distribution board (PDB), and on-screen display (OSD) in one. The Kakute F4 AIO’s layout makes it easy to wire up the other components of the multirotor while keeping the build neat and tidy.
Description:
Brand: Holybro
Item name: F4 AIO V1.3 Flight Controller
MCU: STM32F405RGT6 32-bit processor
IMU: ICM20689 (SPI)
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
3 hardware UARTS (UART1,3,6)
128 Mbit Dataflash chip for Blackbox logging
Dimensions: 35x43x7mm (includes USB in height)
Mounting holes: Standard 30.5mm square to center of holes
Weight: 7g
Features:
Supports Betaflight and Cleanflight.
Betaflight OSD. Change PIDs, adjust common configuration parameters, and change video transmitter channel and power level, all using your transmitter sticks and goggles.
Soft-mounting built in. The IMU (“gyro”) chip on this board is mounted on vibration-isolating foam. This means that there is no need to soft-mount the board itself.
New high-performance / low-noise / high sensitivity IMU. ICM20689 with 6-axis gyro and accelerometer. Can run at up to 32 kHz.
2 oz. copper PCB allows up to 120A maximum continuous current.
Dedicated bootloader button for easy firmware flashing.
Low-profile design fits into even very compact frames.
Input voltage 7v to 42v. Power the board directly from the flight pack, up to 6S (on “BAT” pad only).
Automatic voltage monitoring. No need to run a separate vBat wire for voltage monitoring; the Kakute F4 AIO monitors voltage directly from the battery power lead.
Filtered voltage output for clean, noise-free video. On-board regulators output 5v at up to 1.5 amps and 3.3v at up to 200 mA to power peripherals such as receiver, video transmitter, FPV camera, or LED strip.
Supports BLHeli pass-through for easy ESC upgrade and configuration.

Holybro Kakute F4 AIO English Manual
Package included:
1 x F4 AIO V1.3 flight controller
1 x FFC*1
3 x foam
