Brand: Holybro

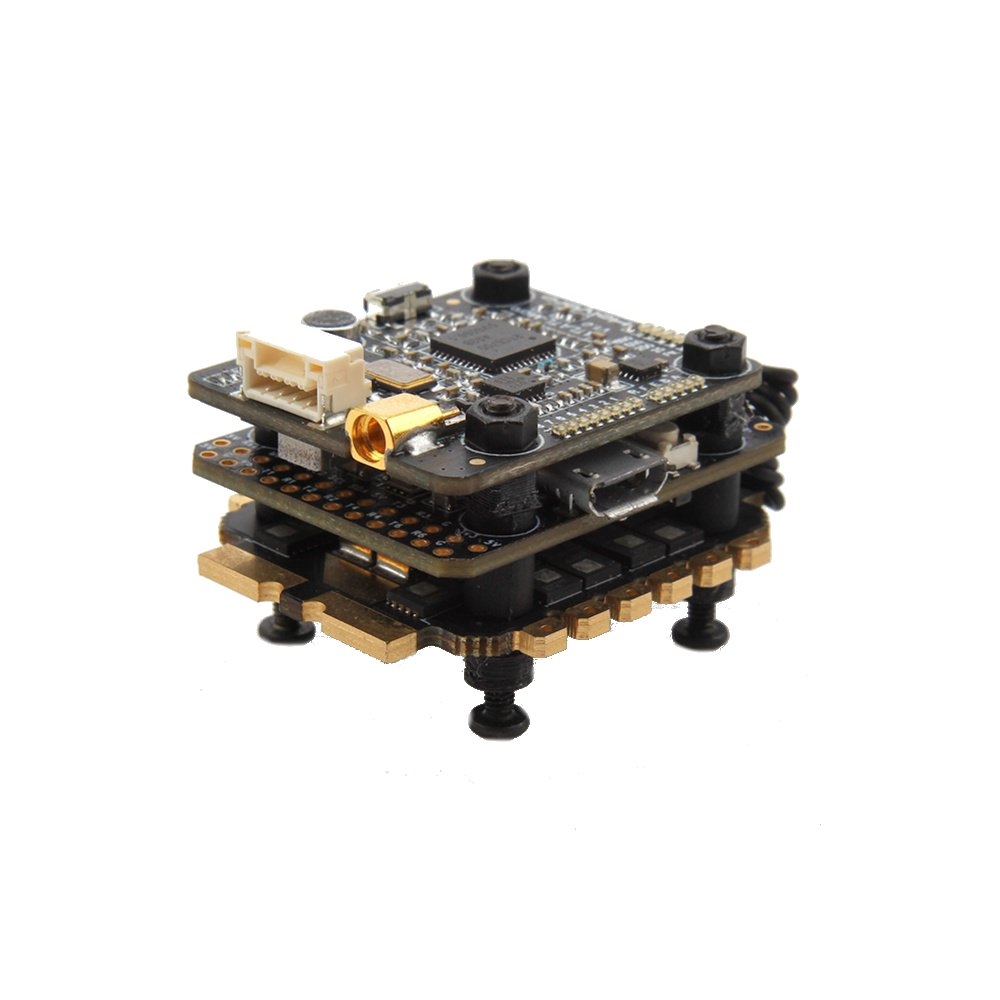

Item Name: Holybro Kakute F7 Mini FC & Tekko32 F3 45A 4In1 Mini ESC & Atlatl HV Micro VTX FPV Combo
Holybro Kakute F7 mini Specification:
MCU: STM32F745VGH6 32-bit processor,216MHz, 320Kbytes RAM, 1Mbytes Flash
Baro: Yes
Baro: Yes
IMU: ICM20689 (SPI)
Barometer: BMP280
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
5.5 hardware UARTS (UART1,2,3,4,6,7)
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
Onbord 16Mbytes for Blackbox logging
5V Power Out: 1.0A max
3.3V Power Out: 0.2A max
Dimensions: 33x26x6mm
Mounting Holes: Standard 20mm square to center of holes
Weight: 4g
Tekko32 F3 45A 4In1 Mini ESC Specification:
Con. Current: 45A
Peak Current: 50A
F3 MCU, runs double faster than F051
32bit ESC with BLHELI32 firmware
Supports 3-6S lipo inputPWM input, TLM supported
Voltage output (VBAT)
NO BEC
Supports oneshot / Multishot / Dshot PWM
Supports damped light
Ext. cap needed for 6s (470uf 35v for 6s usage.)
Mounting holes M2, 20x20mm
Size:30 x 36 mm
Weight: 7.8g
Atlatl HV Micro VTX Specification:
Brand Name: Holybro
Model: Atlatl HV micro V1.0
Item Name: 5.8G 40CH 25/200/500/800mW Switchable FPV Transmitter
Tekko32 F3 45A 4In1 Mini ESC Specification:
Con. Current: 45A
Peak Current: 50A
F3 MCU, runs double faster than F051
32bit ESC with BLHELI32 firmware
Supports 3-6S lipo inputPWM input, TLM supported
Voltage output (VBAT)
NO BEC
Supports oneshot / Multishot / Dshot PWM
Supports damped light
Ext. cap needed for 6s (470uf 35v for 6s usage.)
Mounting holes M2, 20x20mm
Size:30 x 36 mm
Weight: 7.8g
Atlatl HV Micro VTX Specification:
Brand Name: Holybro
Model: Atlatl HV micro V1.0
Item Name: 5.8G 40CH 25/200/500/800mW Switchable FPV Transmitter
Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW
Audio: 6.5 MHz Mono
Antenna Connector: MMCX
Input Voltage: 7 to 21 volts (2-4S LiPo) with absolute maximum 30 volts
Dimensions: 30x26x7mm
Mounting Holes: Standard 20mm square to center of holes
Weight: 3.6g
Features:
Features:
- Compatible with all major FPV receivers from vendors such as Fatshark, ImmersionRC, etc.
- Supports the standard 40-channel set: band A, B, E, Fatshark, and Raceband.
- SmartAudio input allows remote control by the flight controller.
Change channel, transmit power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more.
Change channel, transmit power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more.
- All parameters are controllable via push-button on the side of the unit, for cases where SmartAudio is not used.
- MMCX connector is durable and easy to use. Rated for 100’s of mating cycles. Easy and quick antenna changes. No more ripped-off UFL connectors.
- LED indicators for channel, band, and power. Allows easy check of vTX parameters simply by glancing at the quad.
- Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch to 800 mW for freestyle.
- 0.5 mW True Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.
- Built in microphone, so you can listen to your motors while you fly, no matter how far away you fly.
- Standard 26mm form factor allows you to mount the Atlatl directly on your flight controller stack.
Package Included:
1* Holybro Kakute F7 Mini FC & Tekko32 F3 45A 4In1 Mini ESC & Atlatl HV Micro VTX FPV Combo
Package Included:
1* Holybro Kakute F7 Mini FC & Tekko32 F3 45A 4In1 Mini ESC & Atlatl HV Micro VTX FPV Combo
