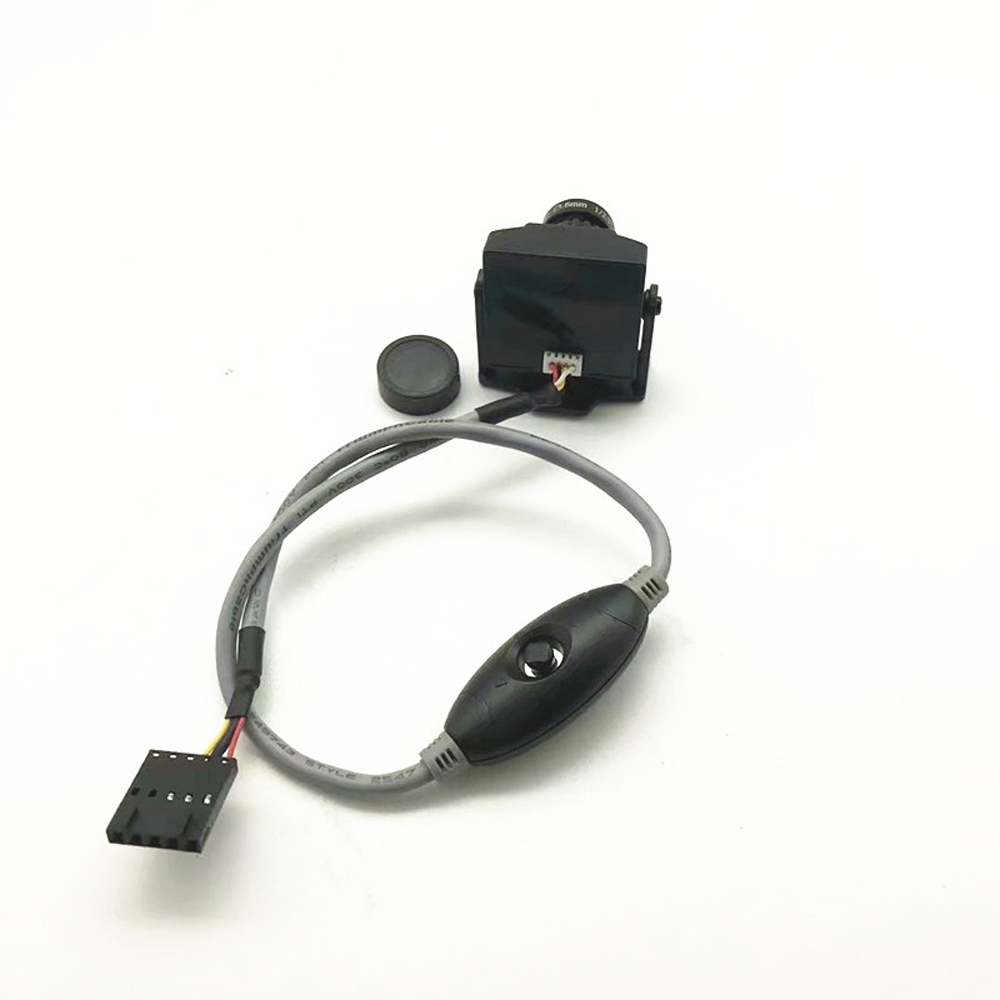

HS1171 1/3" Sony Super Had II CCD 2.8mm Lens 600TVL FPV Camera With Powerful OSD PAL/NTSC for FPV RC Racer Drone
The HS1171 is a mini version of the classic CC1333 600TVL Sony Super Had II CCD board FPV camera. It uses a 1/3" Sony Super HAD II CCD, Nextchip 2040 DSP, D-WDR, 2D-DNR, minimum illumination reach 0.01 Lux (black/white) with a powerful OSD.
A customized 3pin servo cable is also included.
Description:
Model: HS1171
CCD: 1/3â Sony SUPER HAD II CCD
Pixel: PAL: 976(H) x 494(V);NTSC: 768(H)Ã494(V)
TV System: PAL/NTSC(according to country)
Resolution: 650TVL(b/w), 600tvl(color)
Synchronization : internal synchronize
Shutter Speed: (CCD IRIS) PAL: 1/50~1/100000 sec; NTSC: 1/60~1/100000 sec
Noise: > 60 (AGC OFF)
Video Out: 75ohm, synchronize
Min. Illumination: 0.01Lux
Auto Gain: Off/Low/Mid/High
Back Light Compensation (BLC): Off /Back light compensation/ Strong light suppression
Private shading (PRIVACY): 1~8 private shading area
Motion Detect (MD): On/ Off (Multi level sensitivity settable)
Auto White Balance: Manual / Auto / Auto track
Mirror: Horizontal Mirror optional
Negative: Positive / Negative optional
Color to B&W: Auto
DNR: 2DNR
WDR: D-WDR
Day / Night Shift: Auto/ Color/ B&W
Menu (OSD): English menu
White Dot Repair: Support
Image Adjustment: Support
Camera Title: Support
Power Requirement: DC5V~22V
Working Temperature: -10 C ~ +50 C
Working Humidity: 20~80%
Storage Temperature: -40 C ~ +60 C
Storage Humidity: 20~95%
Dimensions(mm): 25X25(W*L)
Power Consumption: 70mA
Features:
* 600TVL high picture quality
* 1/3" SONY SUPER HAD II CCD
* Nextchip 2040 DSP
* Powerful OSD menu
* D-WDR (Wide Dynamic Range)
* 2D-DNR (Digital Noise Reduction)
* Low Power Consumption(70mA)
* Mirror function
* Privacy areas: 8 areas
* Low illumination: 0.01Lux
* 2.8mm Lens
* Low Power Consumption
* Suitable for FPV RC Drone
Package Included:
1x HS1171 1/3" Sony Super Had II CCD 2.8mm Lens 600TVL FPV Camera
