iFlight TITAN FH5 5inch 223mm 3K Carbon Fiber HD Freestyle Frame Kit 5mm Arm Compatible 5inch Props for DJI Digital FPV System - 55.00 €


iFlight TITAN FH5 5inch 223mm 3K Carbon Fiber HD Freestyle Frame Kit 5mm Arm Compatible 5inch Props for DJI Digital FPV System
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

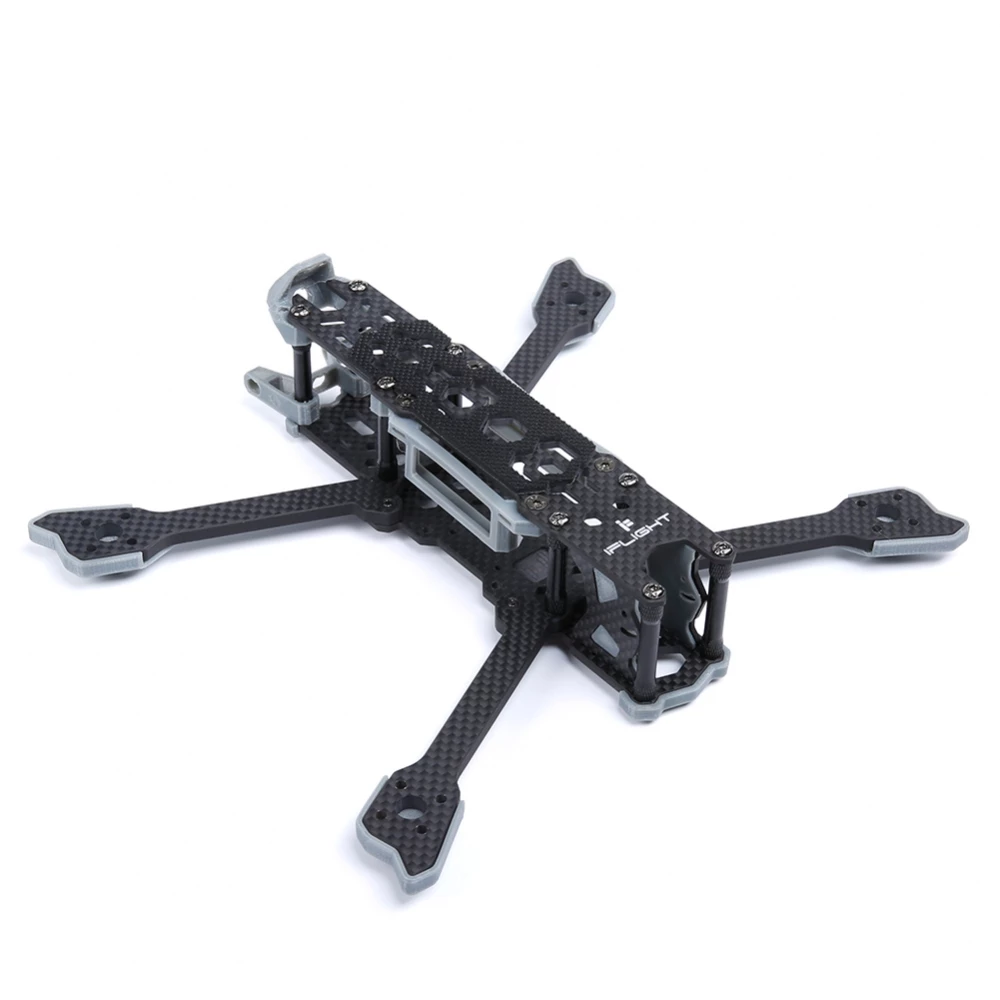

iFlight TITAN FH5 5inch 223mm 3K Carbon Fiber HD Freestyle Frame with 5mm Arm Compatible 5inch Props for DJI Digital FPV System

The TITAN FH5 Freestyle FPV Frame was designed for the DJI Digital FPV System. It is also suited for a 5-inch propeller power system and flight controllers. With the 5-inch propeller power system, users have ensured a super great flying experience. Soft TPU material helps to protect the camera and antenna in the event of a crash.

Features:

- Popular H style configuration, prop in View

- Boomerang arms

- Optimized weight distribution: DJI unit and Stack centered

- Fits both 30.5x and 20x stacks

- Full 3K Carbon Fiber airframe with chamfered arm

- 223mm wheelbase, weight: 131.5g dry weight without TPU parts

Specifications:

- Weight: 131.5 (with TPU parts, and battery anti-slip pads)

- Wheelbase: 223mm

- Main body dimension: 177*136mm

- Bottom to top distance: 35mm

- Arm thickness: 5mm

- Bottom plate thickness: 3mm

- Top plate thickness: 2.5mm

- Camera plate thickness: 1.5mm( 2.5mm included TPU inserts)

- Mounting Holes: 30.5*30.5mm

- Support camera size: 19*19mm 22*22mm

- Recommended motors: 22xx, 23xx

Downloads:

*TAITAN FH5 HD Manual Instruction

Package included:

-1 x TITAN FH5 HD Frame

-1 x Screw Bag

-1 x TPU Camera mount adapters

-4 x Arm guard/Motor mount

-1 x TPU DJI Air Unit Bracket Mount

-1 x TPU DJI Air Unit Antenna Mount

-1 x TPU bottom plate front protective mount

-1 x TPU bottom plate rear protective mount

-1 x Battery Anti-slip Mat

-2 x Battery Straps

NOTE: frame with TPU parts only, the DJI air unit, antenna all do not include.
