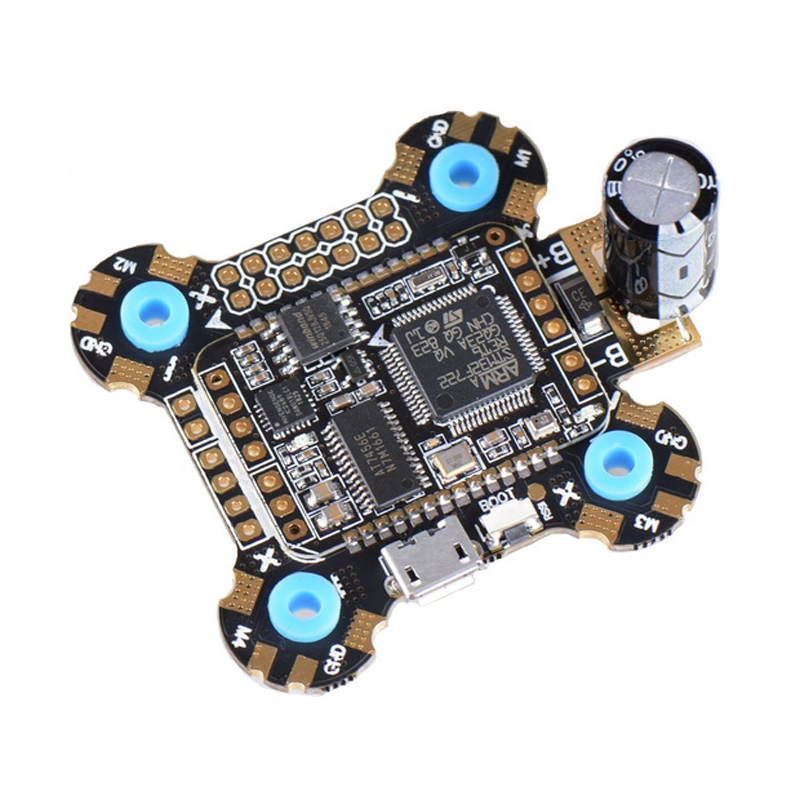

JHEMCU F722 Betaflight Flight Controller 2-6S OSD 5V/2A BEC Current with 25V/1000uF Capacitor 30x30mm 12.8g - 31.00 €


JHEMCU F722 Betaflight Flight Controller 2-6S OSD 5V/2A BEC Current with 25V/1000uF Capacitor 30x30mm 12.8g
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

JHEMCU F722 Betaflight Flight Controller 2-6S OSD 5V/2A BEC Current with 25V Capacitor 30x30mm

Sepecification:
Brand name: JHEMCU
Item name: F722 Betaflight Flight Controller w/ 25V Capacitor
MCU: 216MHz STM32F722RET6
IMU: ICM20689(32K), SPI
Baro: BMP280 (I2C)
OSD: AT7456E (SPI)
Blackbox: W225Q128(16MB)
5x Uarts (1,2,3,4,6) with build-in inversion
6x Dshot/Proshot/oneshot outputs
1x I2C
RX6 pad(one per cornet) for BLheli32 ESC telemetry
4x individual ESC power/signal pads
1x Group of GND/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
+5V filtered output power for VTX
switchable via AUX (modes tab-user1/user2)
Smartaudio & Tramp VTX protocol: Yes
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
PDB Specifications
Input: 7.4~26V (2~6S LiPo) w/TVS protection
PDB: 4x40A (Max.4x50A)
BEC: 5V 2A cont. (Max.3A)
LDO 3.3V: Max.300mA
FC Firmware: BetaFlight
Target: JHEF7DUAL.hex
Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
Dimensions: 45*49mm
Weight: 12.8g

Other detial information:
GND: Ground
+5V: BEC 5V 2A cont.MAX.3A
3.3V: LDO3.3V,MAX.300MA
VBAT+: share Lipo power
B+(+) B-(-): LiPO&ESC Power pads 7.4V-26V(2-6S)
S1,S2,S3,S4,S5,S6: ESC Signal
IO1,IO2: Switch pin IO(ON/OFF,Modes tab/USER1/USER2)
VOUT: Video output for video Transmitter
VIN: Camera Video input
BUZ+ BUZ-: General active 5V buzzer for dbuz 5V
RSSI: Receiver RSSI INPUT
LED_Strip: WS2812 LED signal
SCL & SDA: I2C_SCL & I2C_SDA
RX1 & TX1: UART1
RX2 & TX2: UART2(RC Receiver,SBUS,IBUS,DSM,/ PPM share RX2 pad)
RX3 & TX3: UART3
RX4 & TX4: UART4
RX6 & TX6: UART6


Package Included:
1x JHE F7 Flight Controller
4x silicon grommets M3
1x 25V/470uF Capacitor
1x 25V/1000uF Capacitor
