JJRC JJPRO-P200 Skyline32 5.8G 48CH Raceband 600mW 800TVL Coms FPV Racer ARF/RTF - 169.99 €

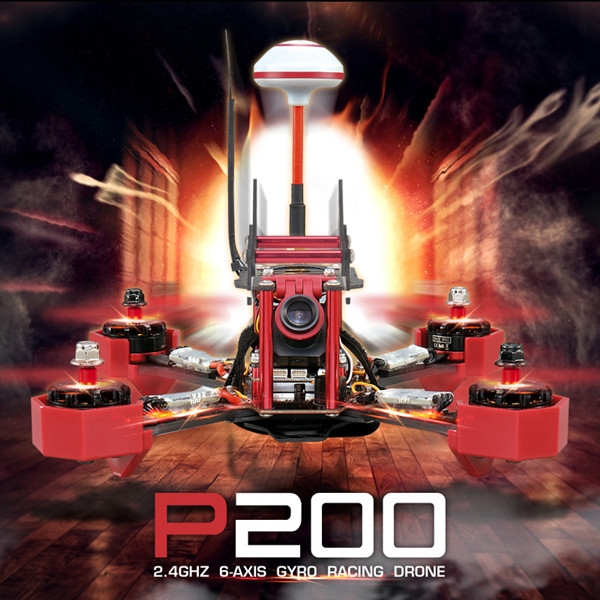

JJRC JJPRO-P200 Skyline32 5.8G 48CH Raceband 600mW 800TVL Coms FPV Racer ARF/RTF
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

JJRC JJPRO-P200 Skyline32 5.8G 48CH Raceband 600mW 800TVL Coms FPV Racer ARF/RTF






















Specification:
Brand Name: JJRC
Item Name: JJPRO-P200 Racing Drone
Model: P200

Flight controller:
Emax Skyline32 Acro
Product Specifications: 35x35x5mm
Weight: 4.5g
Motor:
Brands: Emax
Model: RS2205
KV:2300
MAX Thrust:1024G
Length: 31.7MM
NO.OF Cell:3-4S
Diameter: 27.9MM
Framework: 12N14P
Shaft:M5
Propeller:5-6 inch
Weight: 30G

ESC:
Brand:Emax
Model: Lightning 20A
Continuous Current:20A
Instantaneous Current(10S):30A
BEC: No
Input Voltage: 3-4S
MCU: F396
Weight: 5.5G
Size(without plug): 24.5x12.5x5mm
Power Output: 50Ohm
RF Impedance: 27-28dBm
Operating Voltage: 7V-24V
Audio carrier: 6.5MHz
If you need to update the ESC ,Please .

Camera:
Resolution: 800TVL
Operating Voltage: 7-12V
Image Sensor: 1/3 CMOS
Power consumption: 30mA 12
Lens: 2.2mm
Min.illumination: 0.1Lux/F1.2
Electronic Shutter Speed: 1/50(1/60)~1/100000 sec
Angle: 120°diagonal FOV, 80°horizontal FOV
Signal System: NTSC/PAL(default PAL)
Video Output:1.2Vp-p
External Signal Control Black & White Shift: Support
Filter Switch Drive: Support
Size:18.5mm*18.5mm

5.8G 48CH 600mW Transmitter

Package Included:
ARF Version
1 x Frame Kit
1 x PDB
4 x Motor Base
4 x RS2205 Motor
4 x 20A ESC
8 x Propeller(Random Color)
1 x Power Connector
1 x 3S 11.1V 1500mAh 25C Battery
1 x Charger
1 xCMOS 800TVL Camera
1 x Camera Mount
1 x FT600 VTX
1 x Antenna
1 x Bag

RTF Version:
1 x Frame Kit
1 xRemote Controller
1 x PDB
4 x Motor Base
4 x 2204 Motor
4 x 20A ESC
8 x Propeller(Random Color)
1 x Power Connector
1 x 3S 11.1V 1500mAh 25C Battery
1 x Charger
1 xCMOS 800TVL Camera
1 x Camera Mount
1 x FT600 VTX
1 x Antenna
1 x Bag
1 x EM-I6 Transmitter
1 x FS-A6 Receiver
