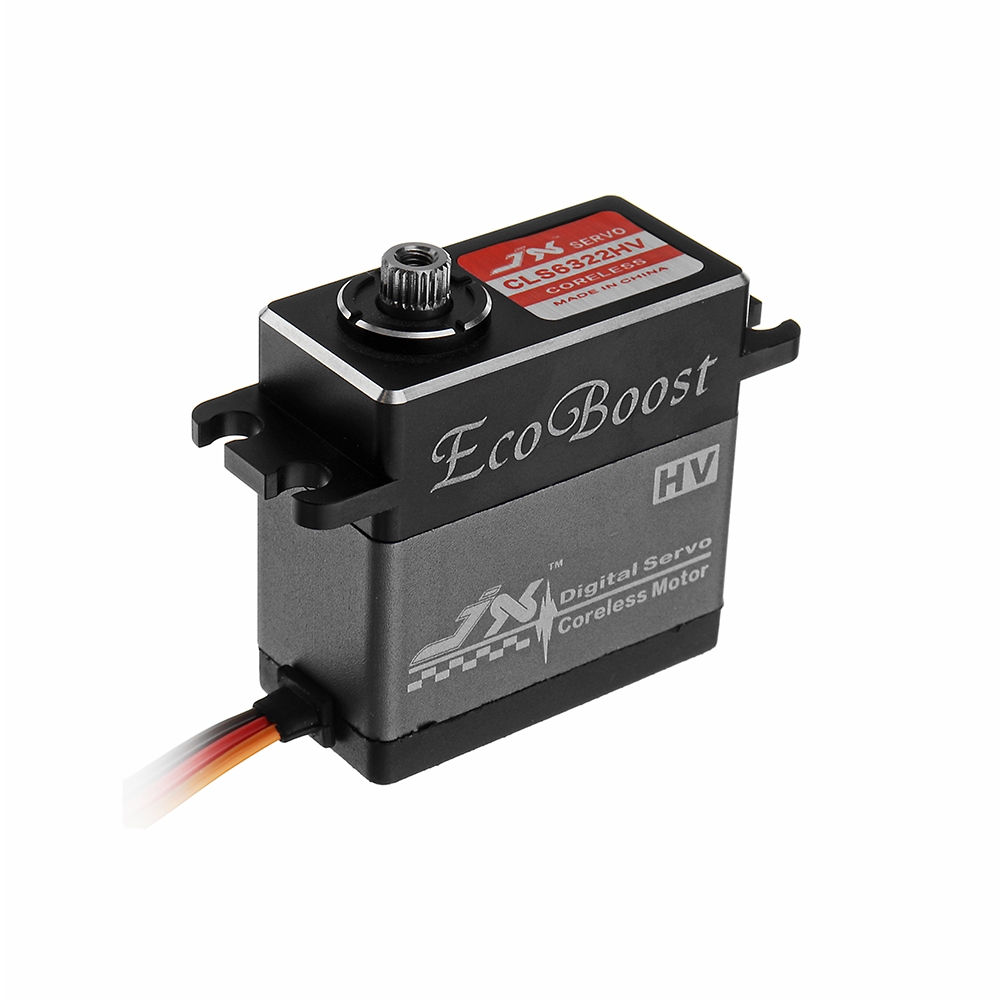

JX Ecoboost CLS6322HV 21KG Large Torque 180° CNC Aluminium Shell Metal Gear Digital Coreless Servo - 25.00 €


JX Ecoboost CLS6322HV 21KG Large Torque 180° CNC Aluminium Shell Metal Gear Digital Coreless Servo
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Specification:
Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (6V): 0.09sec/60°
Operating Speed (7.4V): 0.07sec/60°
Stall Torque (6V): 17.21 kg.cm (239.03oz/in)
Stall Torque (7.4V): 21.06kg.cm (292.46oz/in)
Dimensions: 40.5X20.5X40mm /1.59X0.80X1.57in
Weight: 63g (2.22oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Feature:
1.CNC metal on the cover in the shell.
2.High percision Taiwan-made aluminum gear with hard anodizing.
3.High voltage coreless digital servo.
Packaging Included:
1X JX CLS6322HV Coreless Digital Servo
