JX Servo B70 HV 12V 72KG 180° Brushless Large Torque Metal Gear Digital Servo For RC Helicopter Car Truck - 104.00 €


JX Servo B70 HV 12V 72KG 180° Brushless Large Torque Metal Gear Digital Servo For RC Helicopter Car Truck
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Description:
Brand: JX Servo
Item: B70 Digital Servo
Voltage Range: 11.1V-15V
Pulse Width: 1000-2000μs=90°
Pulse Width: 500-2500μs=180°
Dead Band: 2μs 1520μs / 330hz
Motor: Coreless Motor
Operating Speed (11.1V): 0.12sec/60°
Operating Speed (12.0V): 0.10sec/60°
Stall Torque (11.1V): 61 kg.cm
Stall Torque (12.0V): 72kg.cm
Connector Wire Length: JR 265 mm
Bearing: 2BB
Weight: 87g

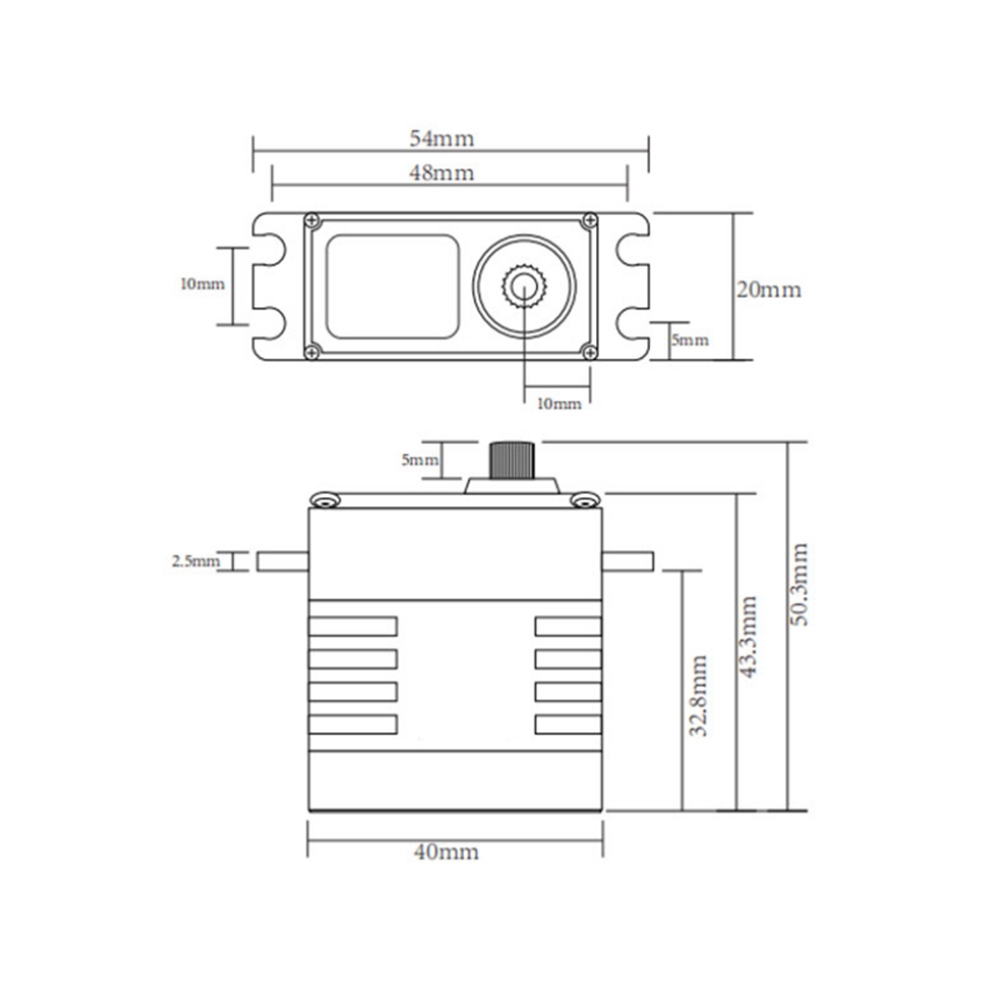

Dimensions: 40X20X43.3mm
Application: For RC Cars, Trucks, Helicopters.
Package:
1* JX Servo B70 Digital Servo
1* Servo Arm Set
