LDARC 30.5x30.5mm KK Super Flytower F4 OSD Flight Controller w/ 48CH 25/200/600mW VTX & 40A BL_S ESC - 85.00 €

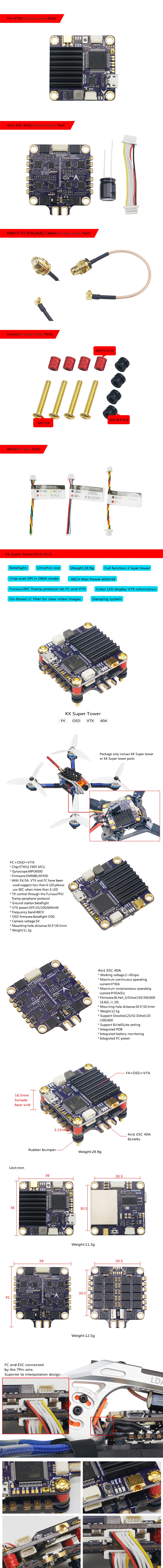

LDARC 30.5x30.5mm KK Super Flytower F4 OSD Flight Controller w/ 48CH 25/200/600mW VTX & 40A BL_S ESC
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

LDARC 30.5x30.5mm KK Super Flytower F4 OSD Flight Controller w/ 48CH 25/200/600mW VTX & 40A BL_S ESC

Specfication:
Brand Name: LDARC
Model: KK Super Flytower
Mounting Hole: 30.5x30.5mm
Flytower Height: 16.5mm ( Include Heat Sink)
Flytower Weight: 28.9g
Application: Orignal part for LDARC KK 5GT FPV Racing Drone

Omnibus F4 FC AIO VTX Module (Top Layer)
Item Name: Omnibus F4 Flight Controller
Chip: STM32F405 MCU
Gyroscope: MPU6000
Firmware: OMNIBUSF4SD
- Built-in Betaflight OSD
- With 5V 3A ( VTX and FC have been used. )
Suggest less than 6 LED. Please use BEC Module while using more than 6 LED.
- TX control through the FuriousFPV/ Tramp peripheral protocol
- Ground Station: Betaflight
- Built-in VTX Module onboard
VTX Power: Off/25/200/600mW
Frequcy Band: 48CH
Camera Voltage: 5V
Size: 36x36mm
Mounting Hole: 30.5x30.5mm
Weight: 11.3g
- Support DSMX, PPM, SBUS Receiver ( Setting refers to manual)

40A BLheli_S 4 in 1 Brushless ESC
Item Name: 40A BLheli_S 2-4S 4 in 1 Brushless ESC
Con. Current: 40A
Peak Current: 45A (5S)
Input Voltage: 2-4S Lipo
Firmware: BLheli_S/ DShot150/300/600 16.6 (G_H_30)
Size: 39x41mm ( Include Pad)
Mounting Hole: 30.5x30.5mm (M3)
Weight: 12.5g
- Support BLheliSuite Setting
- Integrated PDB
- Integrated FC Power
- Integrated battery monitoring
- Support Oneshot42, Oneshot125, DShot150, DShot300 and DShot600

Package Included:
1x F4 AIO VTX Board
1x 40A BL_S 4in1 ESC
3x Cables
1x MMCX to SMA Antenna Cable
1x Capacitor
1x bag of screws
