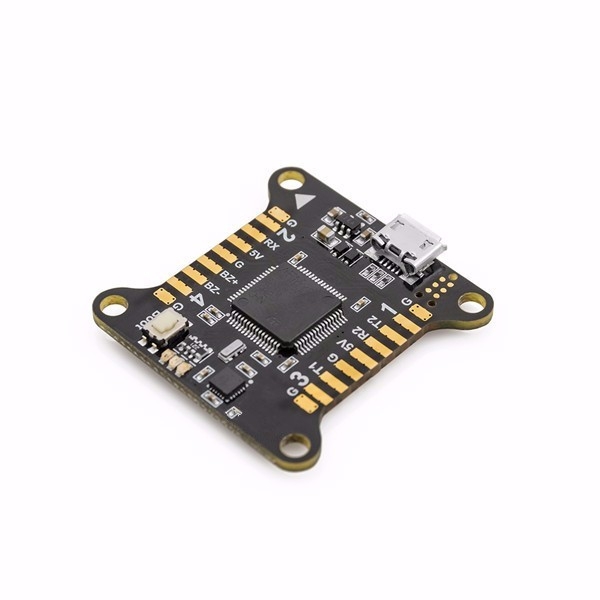

LUX 32-bit Processor Flight Controller Support PPM or Serial RX For Multirotor Racing





Board Layout:


Pin Function G Ground 2 PWM Output (Motor 2) RX RX Input (PPM,S.BUS, SUMD / 3.3-5v / GND) 5v Receiver Voltage (3.3v-5v) BZ+ Buzzer + BZ- Buzzer - 4 PWM Output (Motor 4) 1 PWM Output (Motor 1) T1/T2/R2 UART1 TX, UART2 TX, UART2 RX 5v 5v output 3 PWM Output (Motor 3)

Pin Function G Ground T3/R3/R1 UART3 TX, UART3 RX, UART1 RX 5v 5v Output CUR Current Sensor BAT Input voltage 6-26v (2-6S lipo) RSSI RSSI LED Digital LED Output PPM/SRX Bridge PPM for PPM. SRX for SBUS, SUMD, other serial connections

Specification:
Item name: Lux Flight Controller

PCB: Have
Weight: 6g
Output: 5v 1.0A
Input: Up to 26v (6S lipo)
RX Voltage Output Selectable: 3v/5v
Gyro/accelerometer: MPU6500 MEMS
Processor: STM32F303RCT6(256kB flash) 32-bit
Mode for bootloader + software: STM32 DFU
Dimensions: 36x36x6mm (includes USB in height)
Mounting Holes: 30.5mm square to center of holes
Feature:
1. Highest quality components
2. Micro USB connector for programming
3. Provides high quality flight control using the powerful F3 processor along with top of the line hardware
4. Supports PPM or Serial RX (including Futaba, FrSky, S.BUS). A signal inverter is already included for S.BUS.
Please note: Baseflight firmware is not supported, and PWM input for individual channels is not supported.

Package included:
1x Lux Flight Controller
2x 2x7 Straight Pin Headers
