Description
| Product manual | |

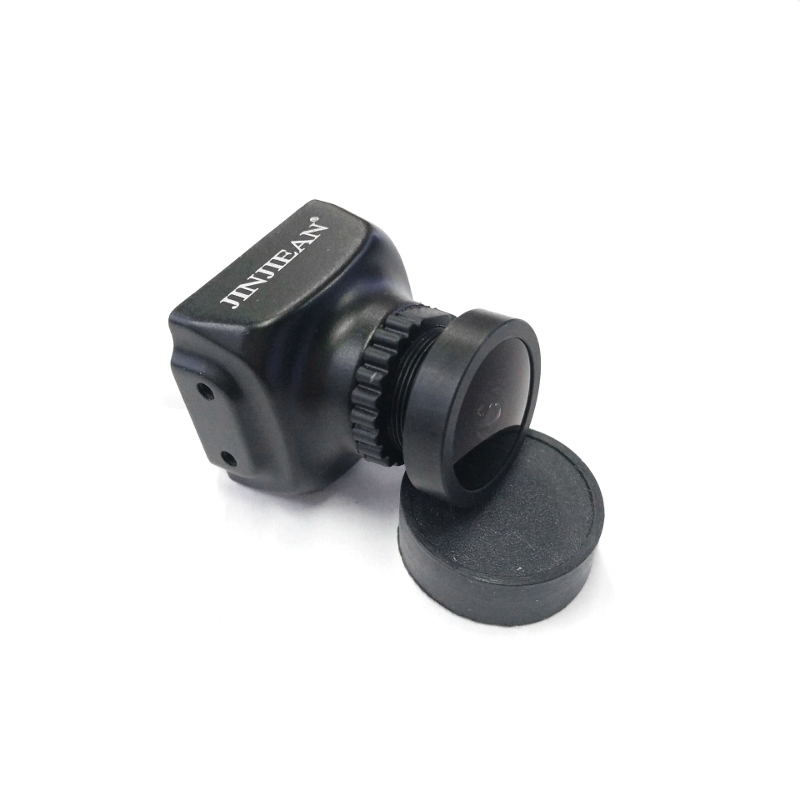

| Model | MINI A23 FPV camera |
| Image Sensor | 1/3"Mg Super HAD II CCD |
| Horizontal Resoulution | D1 960H |
| Lens | 2.1mm/2.3mm, M12 |
| Video formats | PAL/NTSC (OSD Internal adjustable) |
| Signal to noise ratio | >60Db(AGC OFF) |
| Electronic shutter | PAL: 1/50-100.000, NTSC:1/60-100,000 |
| Ratio | 16:9,4:3 |
| Automatic gain control | LOW/MIDDLE/HIGH |
| Backlight compensation | YES |
| Intensity of illumination | 0.001Lux/1.2F |
| WDR | D-WDR |
| DNR | 3DNR |
| Day/Night | Auto/Color/B*W |
| Power | DC5V-30V |
| Net weight | 15g |
| Dimensions | 25mm*25mm*28mm |
| OSD | |
| exposure | Exposure mode/ gain /brightness |
| The white balance | Automatic tracking the white balance |
| Day and night mode | Internal auto/color/black and white mode |
| Video Settings | contrast/ sharpness / saturation / Digital noise / Video format(N/P)Digital wide dynamic |
| language | Chinese/English/German/Italian/Russian |
| Restore the factory Settings | OK |
| Save the exit | OK |
Included
1 x MINI A23 FPV camera
1 x Cable
